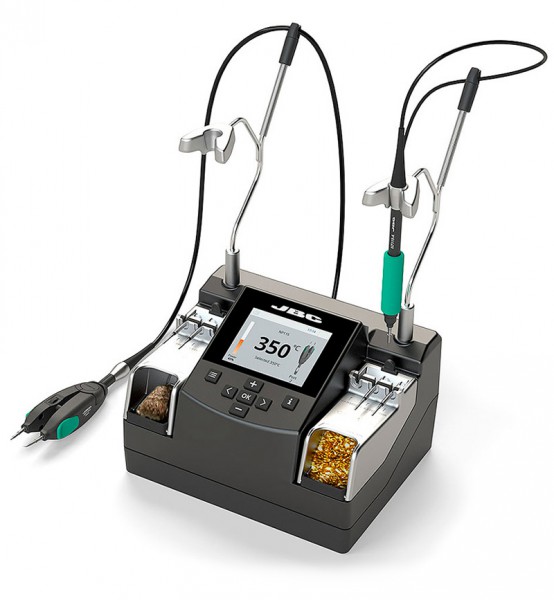

2 Tools Nano Rework station
2 Tools Nano Rework station
The best solution for repairing very small-sized components requiring the highest precision such as chips 0402, 0201, 01005, etc.
It works simultaneously with the NT115-A Nano Handpiece and the NP115 Steady Nano Tweezers.
The short distance from the tip to the handle offers maximum control even when using a microscope.
The NASE-C comes with the new Temperature Dynamic Profiles functionality.
The use of these profiles allows you to control the temperature of the component during all the phases of the soldering process, emulating the heating process in a reflow oven.
Cartridges included: C115101 x1 - C115103 x1 - C115105 x2 - C115107 x1 - C115112 x1 - C115113 x2.
It works simultaneously with the NT115-A Nano Handpiece and the NP115 Steady Nano Tweezers.
The short distance from the tip to the handle offers maximum control even when using a microscope.
The NASE-C comes with the new Temperature Dynamic Profiles functionality.
The use of these profiles allows you to control the temperature of the component during all the phases of the soldering process, emulating the heating process in a reflow oven.
Cartridges included: C115101 x1 - C115103 x1 - C115105 x2 - C115107 x1 - C115112 x1 - C115113 x2.
Specifications
| Net Weight | 2,49 kg (5.49lb) |
| Dimensions | 170 x 90 x 135 mm |
| (6.69 x 3.54 x 5.31 in) | |
| Voltage | 120V |
| Input Fuse | 0.5A |
| Output Peak Power | 14W per tool |
| Temperature selection | 90-450 ºC (190-840 ºF) |
| Idle temp. stability (still air) | ±3 ºC (±5.5 ºF) |
| Tip to ground resistance | <2 ohms |
| Ambient operating temp. | 10-40 ºC (50-104 ºF) |
| Communication connectors | USB-A / USB-B / Pedal |
| Robot connector | RJ12 for RS-232 protocol |
| ESD safe | |
| Package weight | 2,99 kg (6.59lb) |
| Package dimensions | 280 x 280 x 164 mm |
| (11.02 x 11.02 x 6.46 in) | |
