ALE Station

Automatic-Feed Soldering

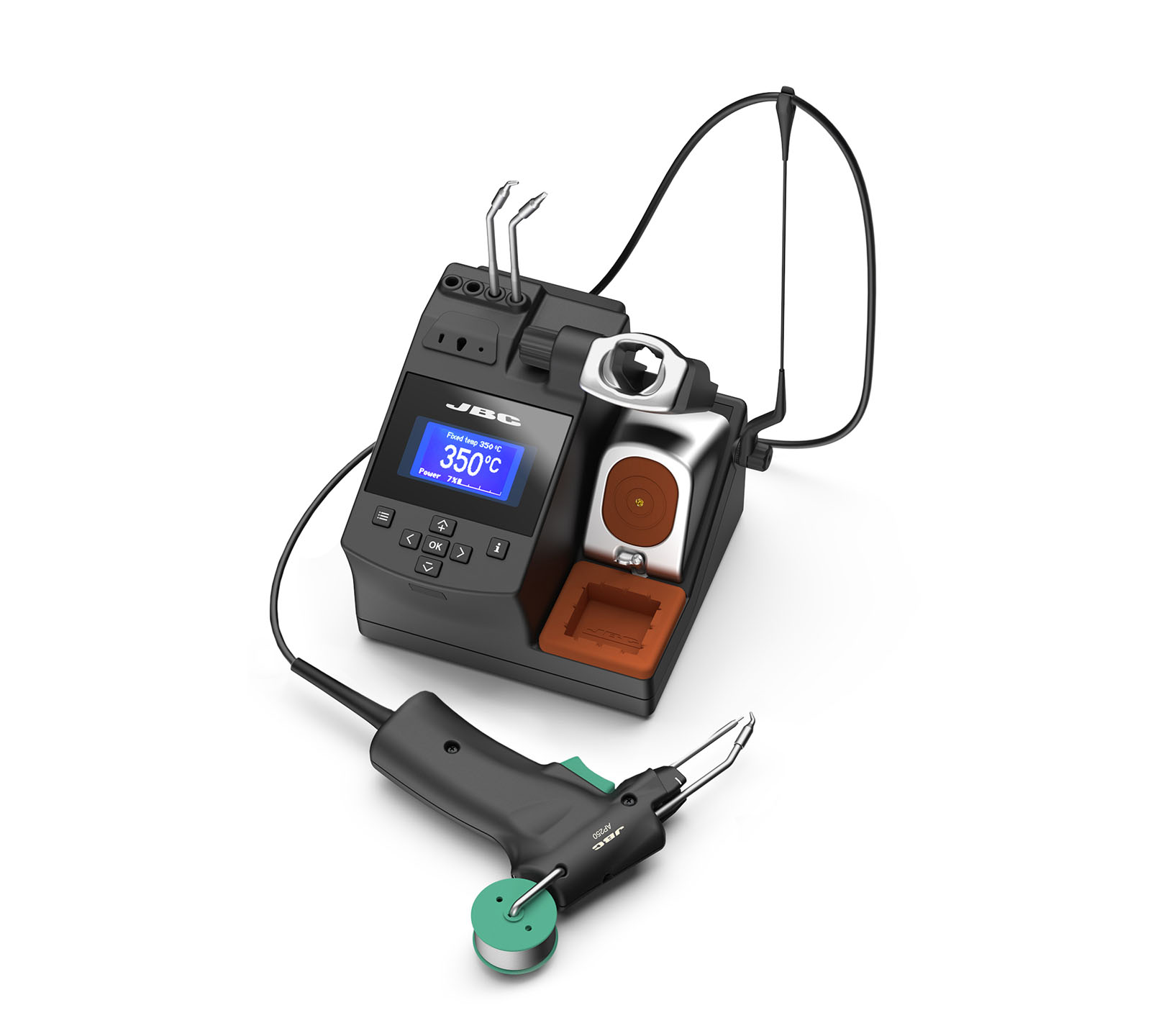

CA Station

Manual-Feed Soldering

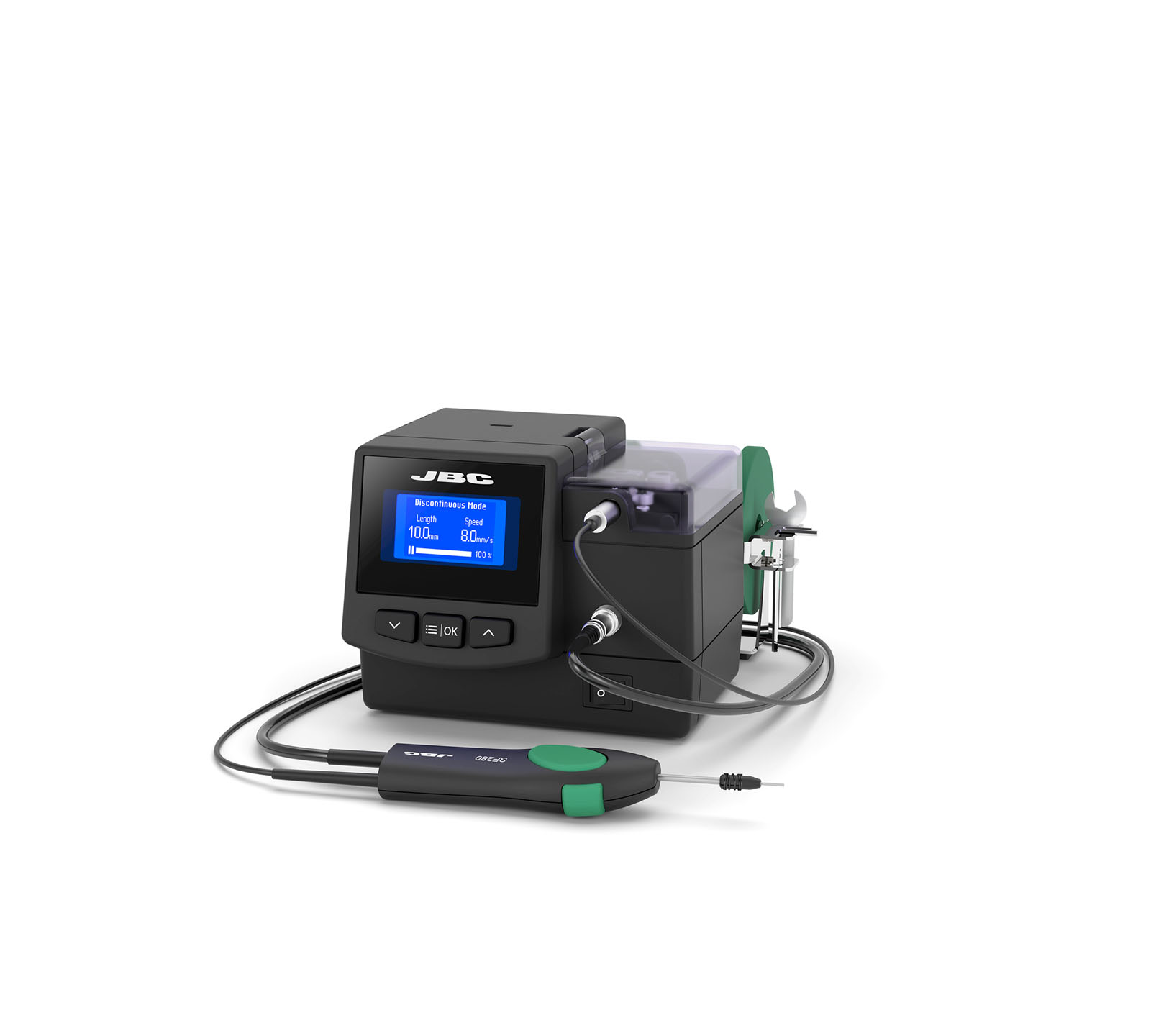

SF Station

Automatic Solder-Wire Feeder

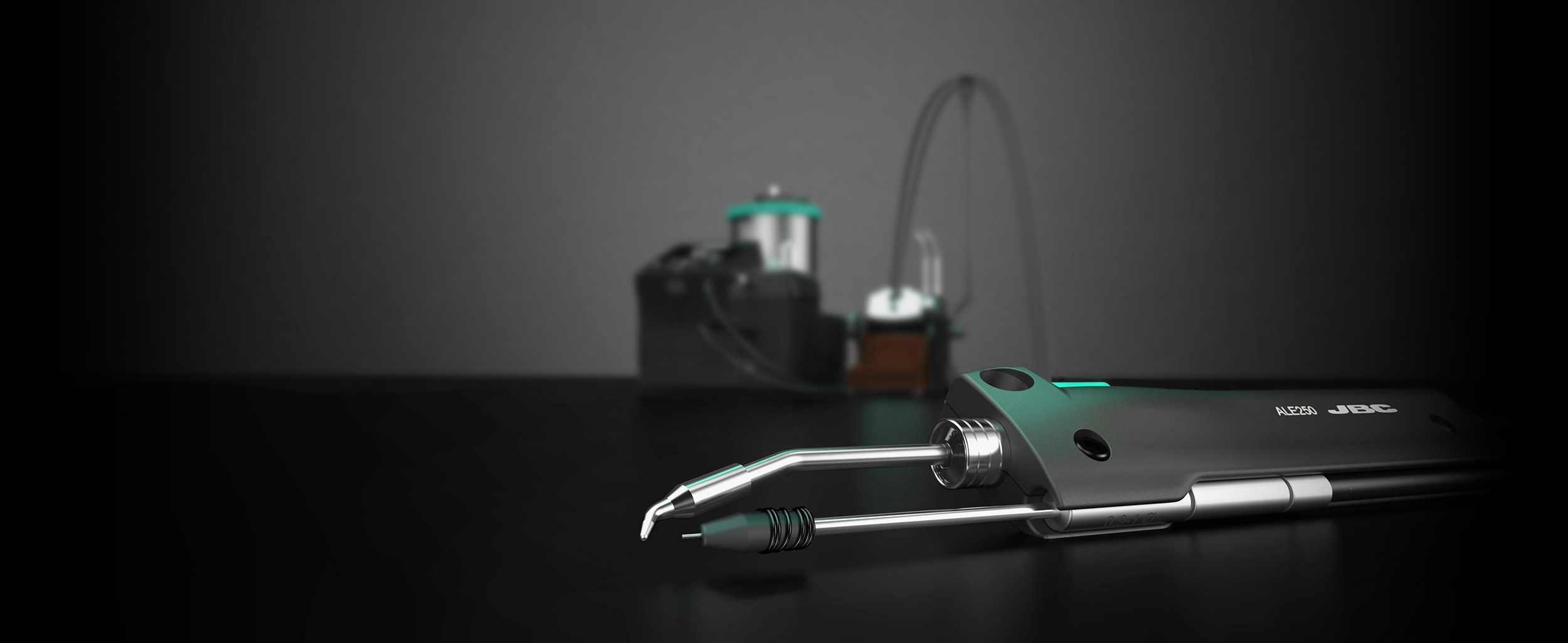

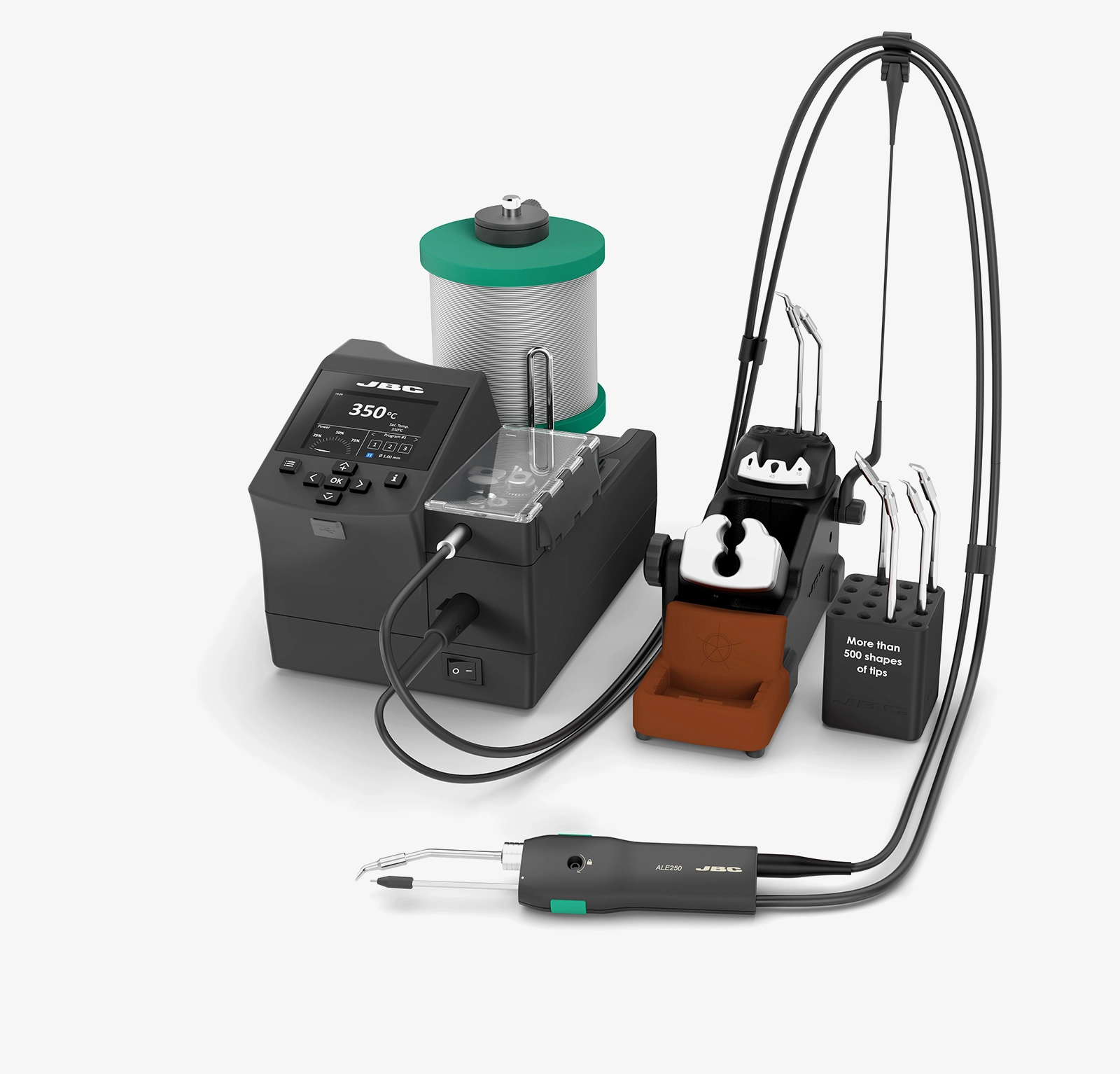

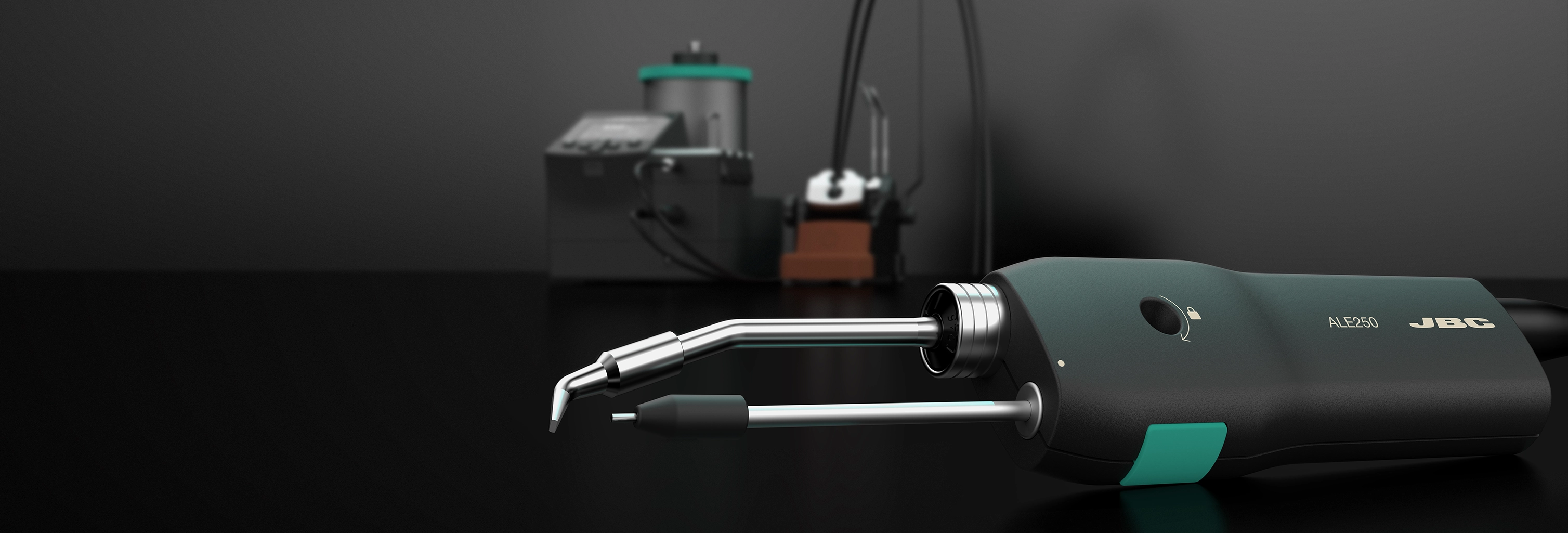

ALE Station, the ideal solution for soldering processes requiring high productivity.

At the push of a button, the station feeds precisely the programmed amount of solder wire, making the ALE station perfect for repetitive soldering jobs especially on the production line.

Introduction

ALE, the ideal solution for soldering processes requiring a free hand

By pressing the button, the station feeds precisely the programmed amount of solder wire, making the ALE station perfect for repetitive soldering jobs especially on the production line.

How do we achieve high-precision
solder wire dispensing?

By using these 3 working modes:

1
Continuous

Allows the operator to manually control the amount of solder wire being fed at a constant speed.

Ideal for products with solder joints that require different amounts of tin.

2

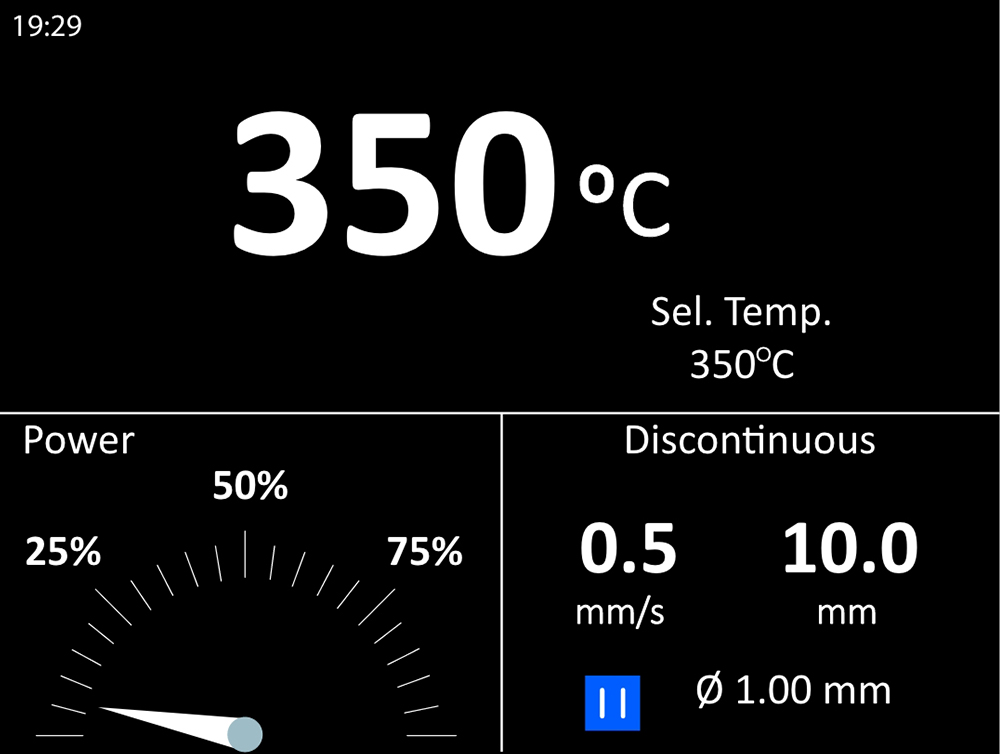

Discontinuous

Allows the operator to program the solder wire amount and speed that will automatically be dispensed on each click.

Ideal for repetitive soldering jobs.

3

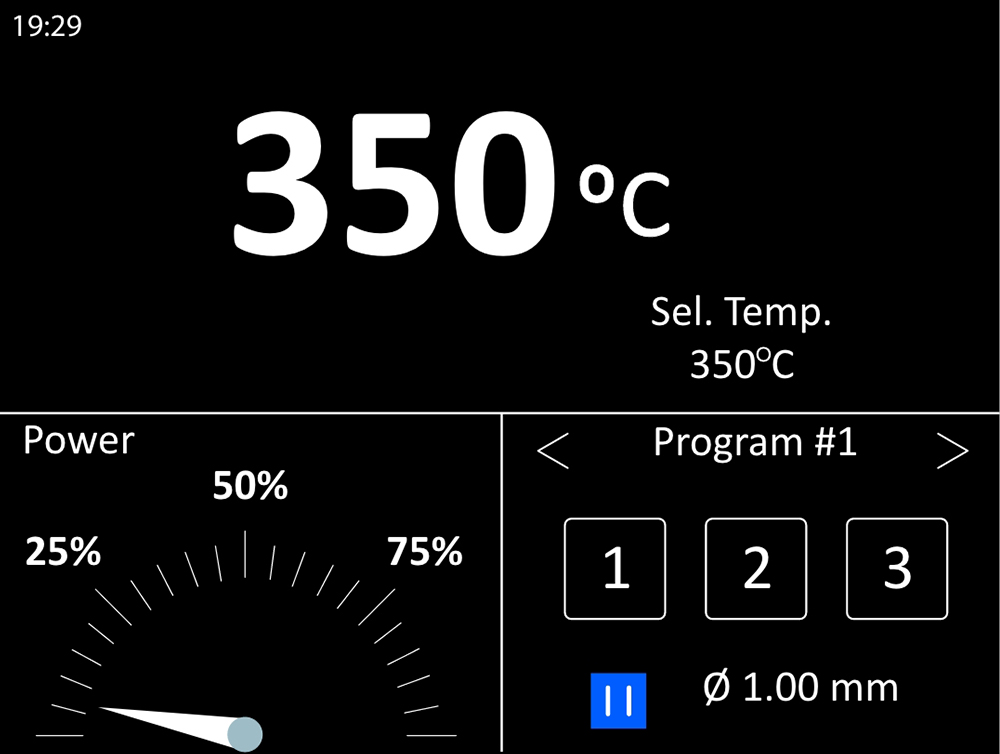

Program

The operator can customize up to 5 programs, each one with 3 different steps, making the process more dynamic and efficient.

Ideal for soldering jobs that require pre-tinning or a controlled feeding of tin at different speeds.

Avoid splashing while soldering

A small blade perforates the solder wire down to the flux core while feeding it.

This perforation process allows better flux flow and outgassing and avoids solder and flux splashing while soldering.

Avoid splashing while soldering

A small blade perforates the solder wire down to the flux core while feeding it.

This perforation process allows better flux flow and outgassing and avoids solder and flux splashing while soldering.

The perfect tool when solder amount consistency is required across repetitive solder joints

By pressing the button, the tool automatically feeds the precise amount of solder programmed in the station.

The perfect tool when solder amount consistency is required across repetitive solder joints.

By pressing the button, the tool automatically feeds the precise amount of solder programmed in the station.

Cartridge Range

This cartridge range features straight and bent tips to best suit your working needs.
In addition, it offers instant heat up, excellent heat transfer and great durability.
C250 Cartridges can be aligned using the anti-rotation screw incorporated in the tool.

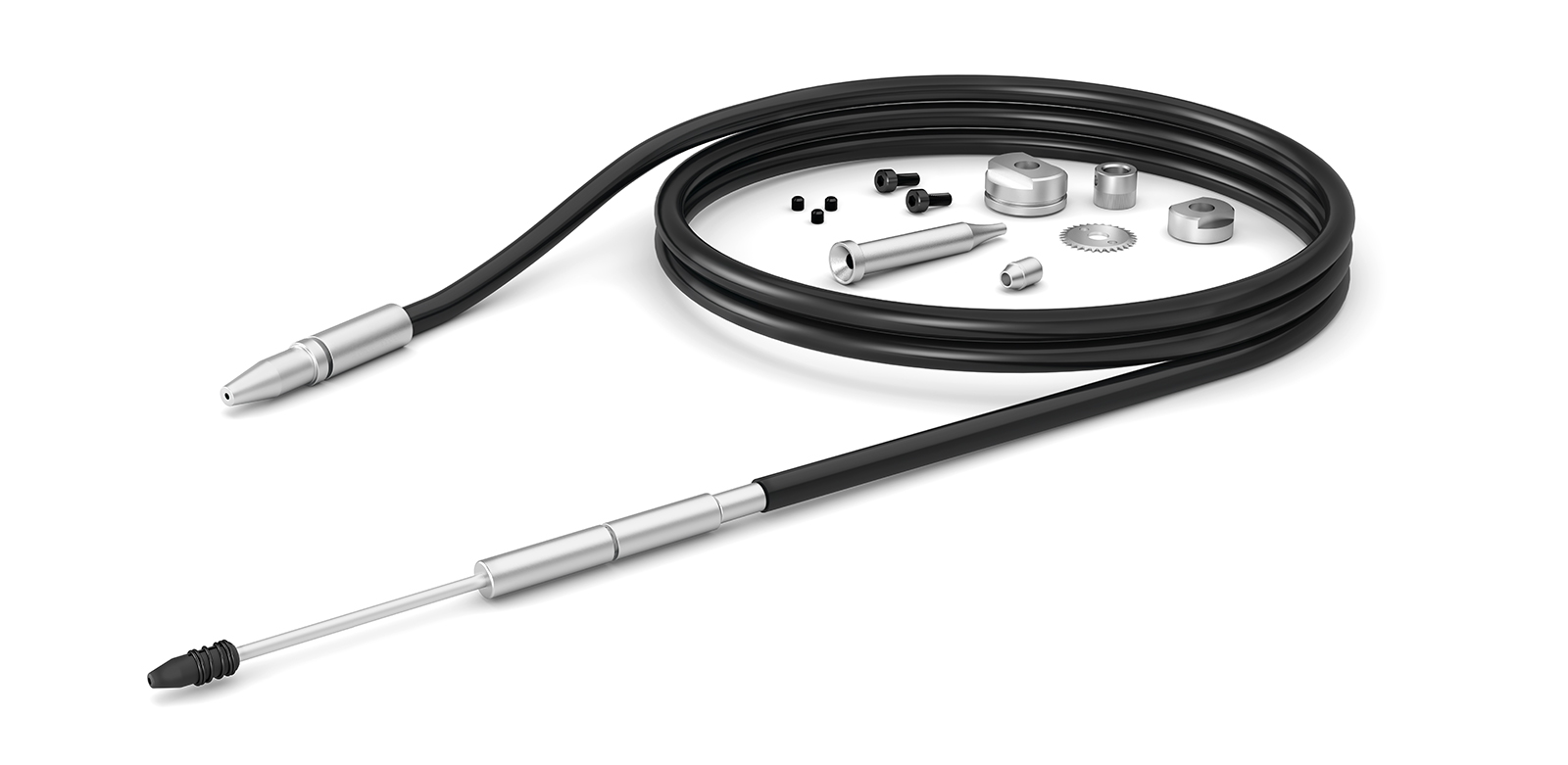

Guide Kit

Compatible with solder wire diameters from Ø 0.8mm (0.032 in) up to Ø1.6 mm (0.063 in) with solder wire perforation
and from Ø 0.4 mm (0.02 in) up to Ø 1.8 mm (0.07 in) without solder wire perforation.

Intelligent Heat Management

As all JBC Tools, ALE Auto-feed Soldering Station features JBC Exclusive Heating System ensuring an
extremely quick temperature recovery reaching 350°C in less than 4 seconds.

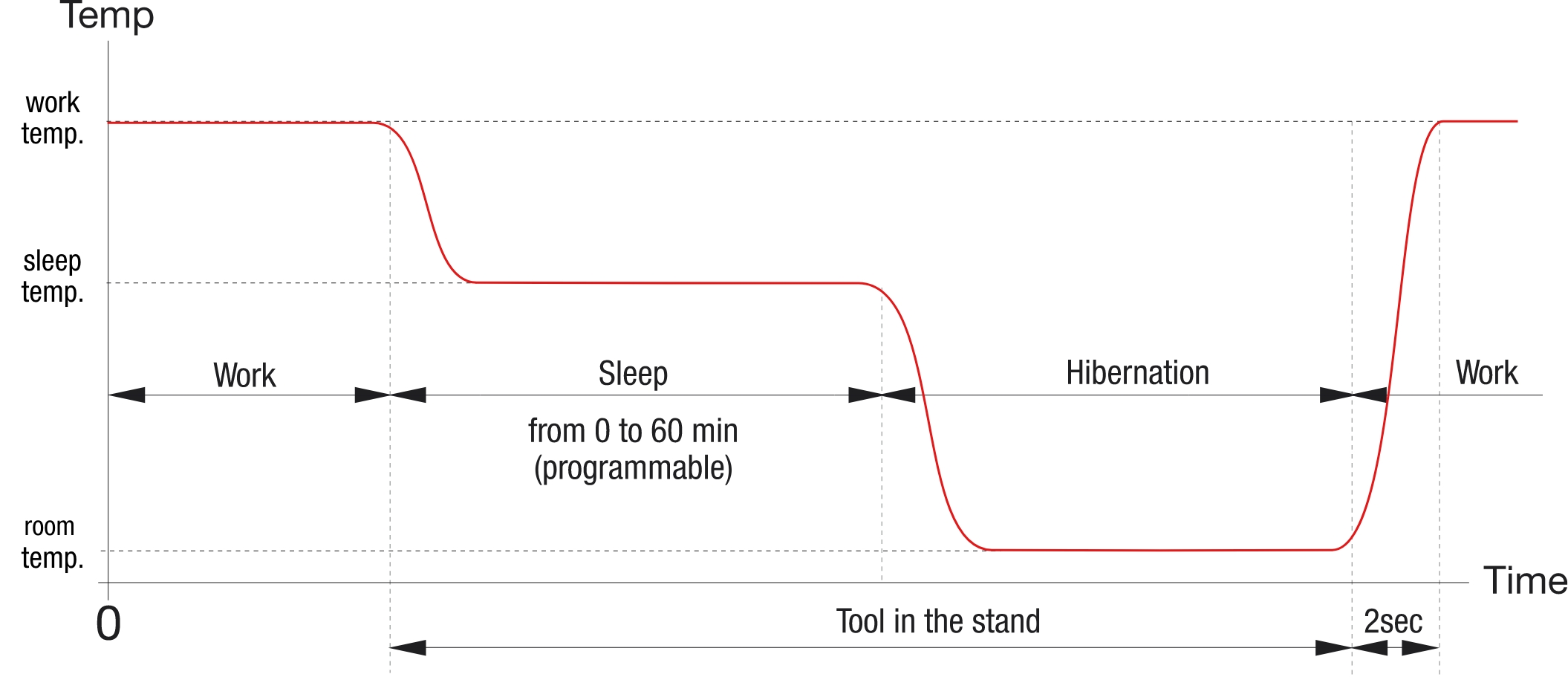

Automatic stand detection makes the tools enter Sleep & Hibernation Mode when not in use.
Sleep lowers tip temperature below solder melting point, preventing Tip iron dissolution into solder.
Hibernation cuts off power supply, making the tip reach room temperature thus preventing oxidation and saving energy.

User-friendly menu

Take advantage of all the JBC Station benefits such as station customization, full control of soldering processes and remote work management.

Fast, more intuitive and top-performing upgraded display.

Fast and easy configuration of the station thanks to the 7-key keypad.

User-friendly menu

Take advantage of all the JBC Station benefits such as station customization, full control of soldering processes and remote work management.

Fast, more intuitive and top-performing upgraded display.

Fast and easy configuration of the station thanks to the 7-key keypad.

Increase productivity

Without switching the station off, you can carry out different soldering jobs safely in just few seconds.

This station allows you to easily change and reload the solder wire and use a solder reel up to 2 kg / 4.40 lb.

Furthermore, it incorporates all the tools needed for changing the reels and changing or aligning the cartridges.

Increase productivity

Without switching the station off, you can carry out different soldering jobs safely in just few seconds.

This station allows you to easily change and reload the solder wire and use a solder reel up to 2 kg / 4.40 lb.

Furthermore, it incorporates all the tools needed for changing the reels and changing or aligning the cartridges.

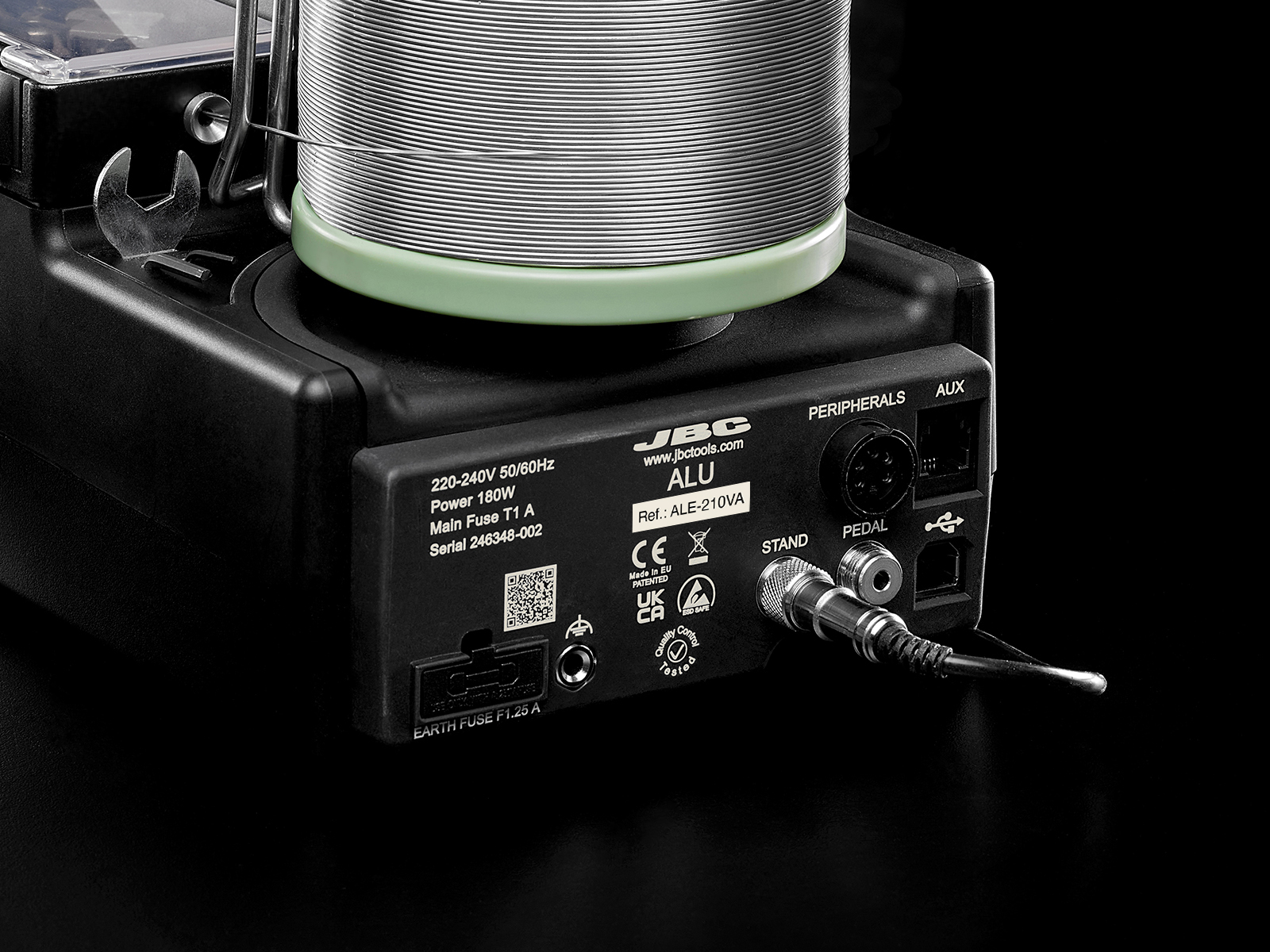

Connectivity

Use JBC devices and accessories together with your ALE Station to achieve the best soldering results.

• FAE Fume Extractors
• Pedal

Connectivity

Use JBC devices and accessories together with your ALE Station to achieve the best soldering results.

• FAE Fume Extractors
• Pedal

Stand

The newly upgraded stand includes:

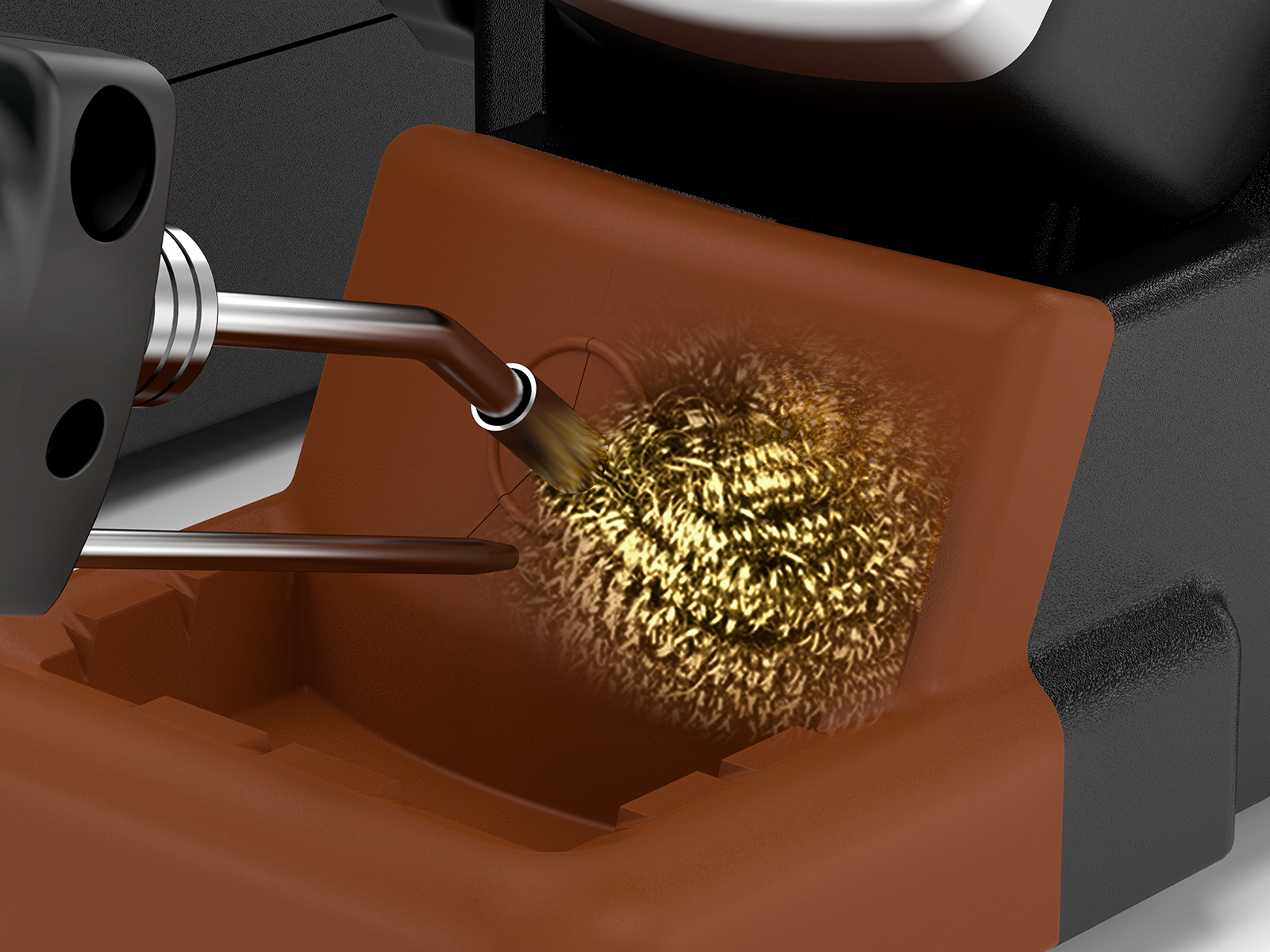

1. Tip Cleaner with brass wool to prevent oxidation between cleaning and rewetting.
2. Antisplash Membrane to keep the work area clean.

Furthermore, Cartridge Holder allows storing of up to four cartridges.

Stand

The newly upgraded stand includes:

1. Tip Cleaner with brass wool to prevent oxidation between cleaning and rewetting.
2. Antisplash Membrane to keep the work area clean.
Furthermore, Cartridge Holder allows storing of up to four cartridges.

Station Range

ALE Station

Automatic-Feed Soldering

CA Station

Manual-Feed Soldering

SF Station

Automatic Solder-Wire Feeder

Tool	ALE250 Auto-Feed Soldering Iron	AP250 Manual-Feed Soldering Iron	SF280 Auto Solder-Wire Handle
Solder wire diameter	0.4 - 1.8 mm / 0.02 - 0.07 in	0.8 - 1.5 mm / 0.03 - 0.06 in	0.5 - 1.5 mm / 0.02 - 0.06 in
Compatible Cartridges	C250	C250	No cartridge
Job Type	General Purpose	General Purpose	All
Sleep & Hibernation Modes
Cartridge Holder
Cartridge Extractor
Pedal Connector
Connection Station-PC	USB-B	USB-B	USB-B
Update Files	USB-A	USB-B	USB-B
Peripherals	FAE / pedals	FAE
Soldering Assistant
Reel Weight	Up to 2 kg / 4.41 lb	0.5 kg / 1.1 lb	Up to 1 kg / 2.2 lb
Max. Reel Diameter	100 mm / 3.94 in	-	80 mm / 3.15 in
Max. Reel Height	100 mm / 3.94 in	-	75mm / 2.95 in
Max. Wire Length	250 mm / 9.84 in (for discontinuous + program mode)	-	250 mm / 9.84 in
Min. Wire Length	0.5 mm / 0.02 in	-	-
Forward Speed Range	0.5 to 50 mm/s / 0.02 to 1.97 in/s	-	120 mm/s / 4.72 in/s
Speed of Backward Function	0.0 to 5.0 mm/s / 0.5 to 0.20 in/s	-	120 mm/s / 4.72 in/s
Number of Programs	5 Programs	-	35 Programs
Number of Program Steps	1 to 3 Steps (for each program)	-	1 to 3 Steps (for each program)
Output Peak Power	150 W	130 W	-
Temperature Range	90 to 450 ºC / 190 to 840 ºF	90 to 450 ºC / 190 to 840 ºF	-
Ambient Operating Temperature	10 to 50 ºC / 50 to 122 ºF	10 to 50 ºC / 50 to 122 ºF	-
Idle Temp. Stability (still air)	±1.5ºC / ±3ºF	±1.5ºC / ±3ºF	-
Temp. Accuracy	±3%	±3%	-
Temp. Adjustment	±50ºC / ±90ºF	±50ºC / ±90ºF	-
Tip-to-Ground Voltage/Resistance:	Meets and exceeds ANSI/ESD S20.20-2014 IPC J-STD-001F	Meets and exceeds ANSI/ESD S20.20-2014 IPC J-STD-001F	-
Earthing Fuse	F 1.25A	F 1.25A	-
