DDPE Station
2-Tool Precision Rework

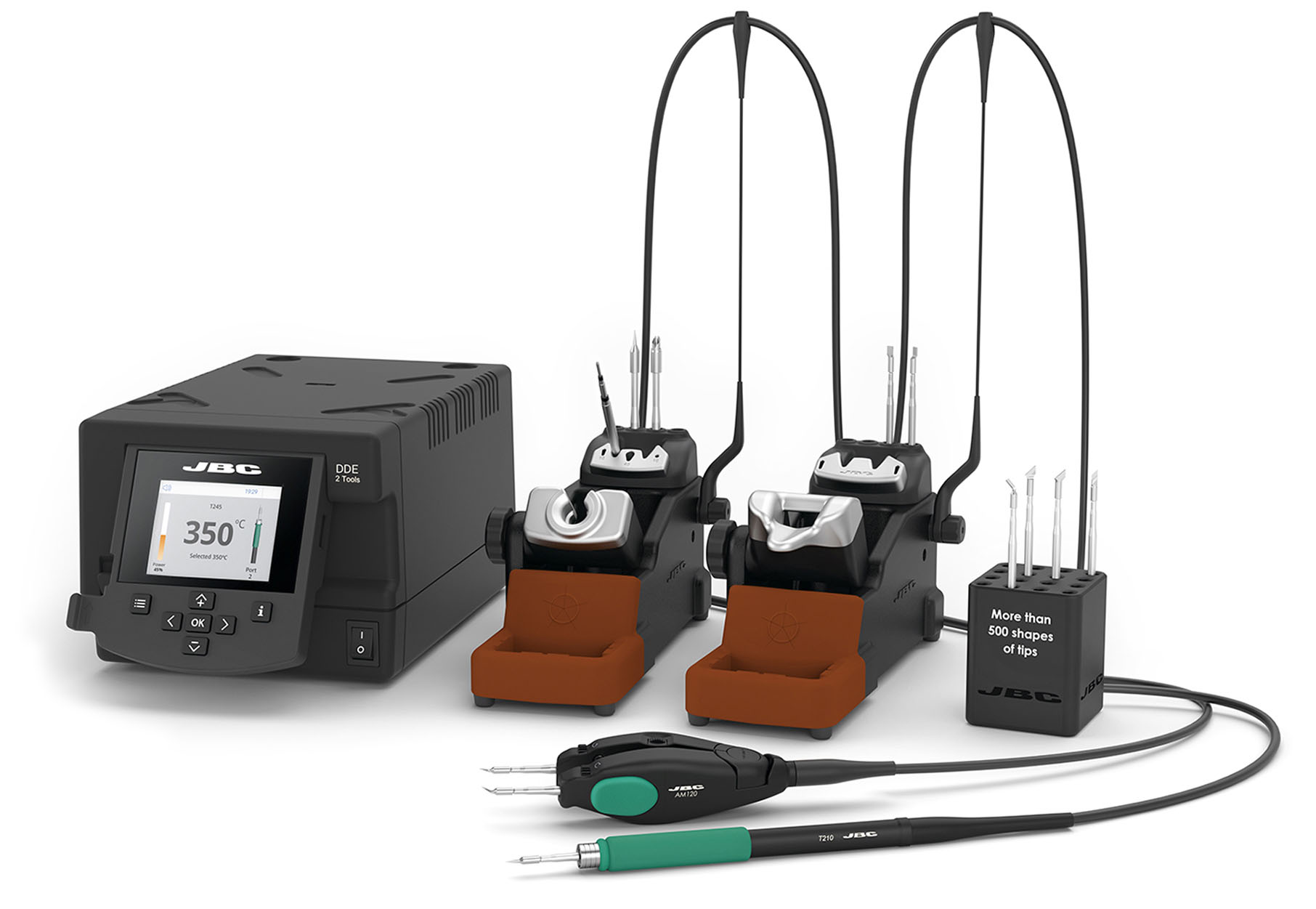

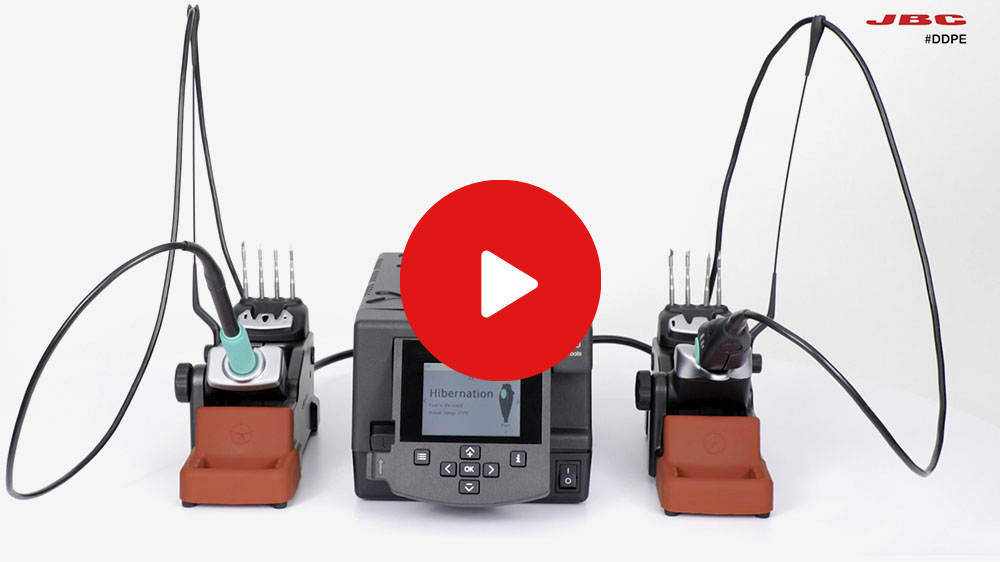

DDPE - 2-Tool Precision Rework Station
This station is the perfect solution for fast and precise SMD rework of chip components and small outline ICs.

It provides all the advantages of the JBC Most Efficient Soldering System.

Includes:
  • DDE 2-Tool Control Unit manages up to two tools simultaneously and is fully compatible with 10 different JBC tools.



  • T210 Precision Handle and AM120 Adjustable Micro Tweezers.

  • • T210 works with C210 Cartridge Range and AM120 with C120 Cartridge Range.

  • • Two stands with a complete Tip Cleaning System, Quick Cartridge Exchanger and a Cartridge Holder to store up to four cartridges.

  • SCH Cartridge Holder to store up to 16 cartridges and tips nearby.





  • Nominal power
    370W
    Peak power (Tool)
    150W per tool
    Selectable temperature
    90 to 450 ºC / 190 to 840 ºF
    Idle temp. stability (still air)
    ±1.5ºC / ±3ºF / Meets and exceeds IPC J-STD-001F
    Temperature accuracy
    ±3%
    Temp. adjustment
    ±50ºC / ±90ºF Through station menu setting
    Tip-to-ground resistance
    <2 ohms
    Tip-to-ground voltage
    <2 mV RMS
    Graphics and profiles
    FAE / Robot connector
    Remote control or FAE Fume Extractor connection
    Weight and dimensions
    Control Unit
    232 x 148 x 120 mm / 7.16 kg.
    9.13 x 5.83 x 4.72 in / 15.78 lb.
    Package
    545 x 345 x 275 mm / 10.40 kg.
    21.46 x 13.58 x 10.83 in / 22.93 lb.
