TESE
Precision Hot Air Station

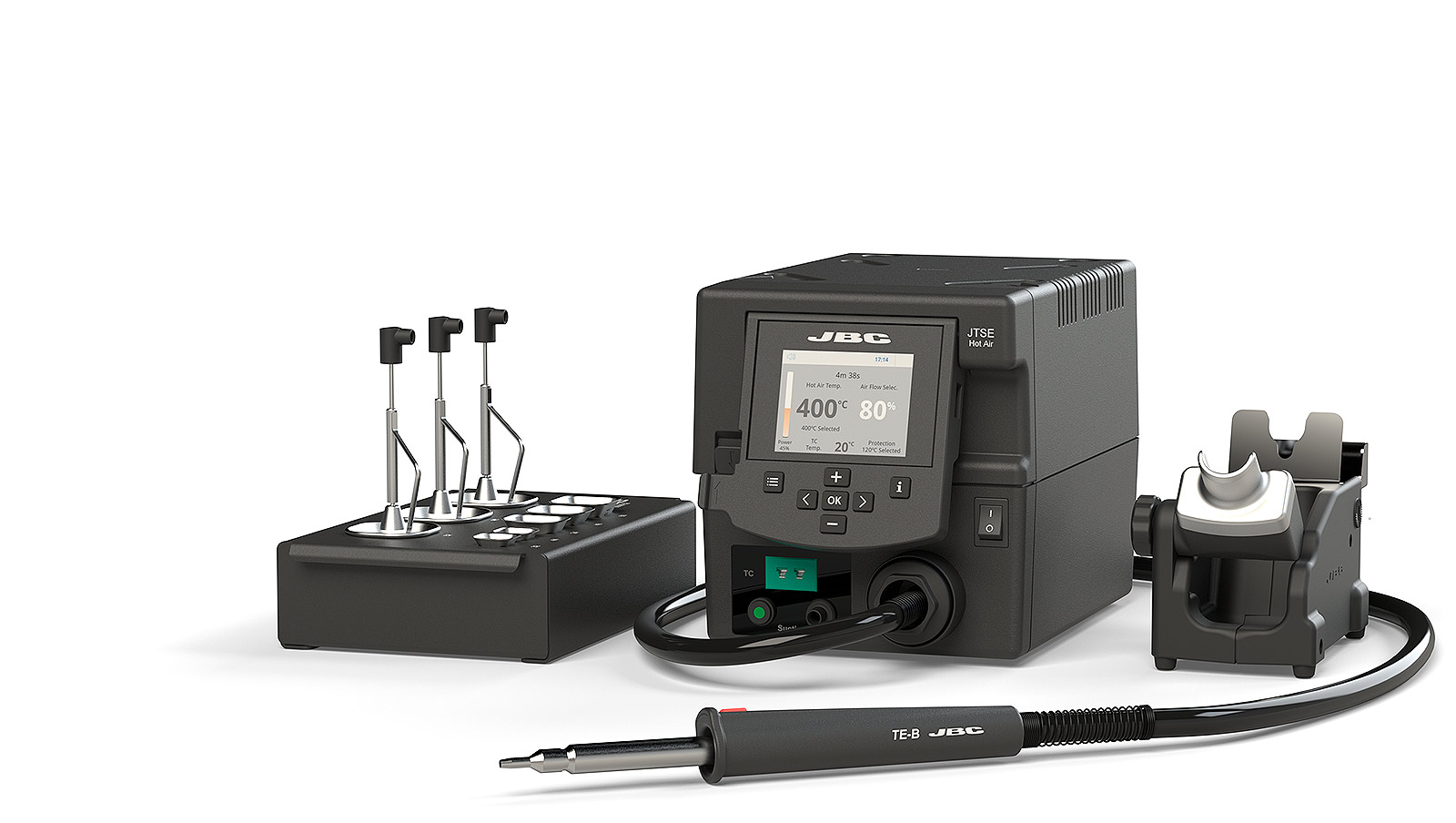

TESE - Precision Hot Air Station
The TESE is aprecision hot air Station capable of reworking small and medium SMDs. Watch video for examples.

The combination of the exclusive JBC hot air system with protectors, tripods and extractors ensures desoldering components easily and safety, concentrating the heat on the selected component as show:

Desoldering with TESE station



Connecting an external thermocouple provides a high-precise close-loop control of the component/PCB during the rework process or can also be used to protect a component or a specific area of the PCB.

As all the JBC Stations, the TESE has a menu with more than 10 parameters to customise the control unit.
With extractor desk:
TESE-1A
100-120 V
TESE-2A
230 V
Selectable Temperature
150 to 450 ºC (300-840 ºF)
Air flow
2 to 17 SLPM
Temperature profiles:
Design specific thermal profiles to avoid thermal shock during soldering processes.
Up to 25 fully configurable soldering profiles can be stored.
Operating modes
Heating / Profiles / Cooling
Vacuum
30% / 228 mmHg / 9 inHg

Connectivity
Type K thermocouple:
Can be used both for Control and Protection purposes.
USB-B (rear)
Software PC
USB-A (front)
Firmware update, Graphics / Profiles management
Robot
RS-232 remote control
Pedal
Optional tool control
Equipotential bonding
Optional connection to EPA

ESD/EOS
ESD safe

Power supply
Peak power
300 W
Ambient operating temp.
10 to 50 ºC / 50 to 120 ºF

Dimensions and weight
Premium Stations
230 x 148 x 160 mm / 4.72 kg.
9.06 x 5.83 x 6.30 in / 10.41 lb.
Package
474 x 368 x 195 mm / 5.69 kg.
18.66 x 14.49 x 7.68 in / 12.54 lb.
Without extractor desk:
TESE-1QA
100-120 V
TESE-2QA
230 V
Selectable Temperature
150 to 450 ºC (300-840 ºF)
Air flow
2 to 17 SLPM
Temperature profiles:
Design specific thermal profiles to avoid thermal shock during soldering processes.
Up to 25 fully configurable soldering profiles can be stored.
Operating modes
Heating / Profiles / Cooling
Vacuum
30% / 228 mmHg / 9 inHg

Connectivity
Type K thermocouple:
Can be used both for Control and Protection purposes.
USB-B (rear)
Software PC
USB-A (front)
Firmware update, Graphics / Profiles management
Robot
RS-232 remote control
Pedal
Optional tool control
Equipotential bonding
Optional connection to EPA

ESD/EOS
ESD safe

Power supply
Peak power
300 W
Ambient operating temp.
10 to 50 ºC / 50 to 120 ºF

Dimensions and weight
Premium Stations
230 x 148 x 160 mm / 4.72 kg.
9.06 x 5.83 x 6.30 in / 10.41 lb.
Package
474 x 368 x 195 mm / 5.69 kg.
18.66 x 14.49 x 7.68 in / 12.54 lb.
