CDN Station
High-Precision Soldering

Soldering beyond limits

This station is designed for highest-precision jobs in any micro-soldering application, offering maximum control working under the microscope.

It provides all the advantages of JBC Most Efficient Soldering System in the smallest footprint:

  • JBC Intelligent Heat Management which provides the best soldering quality and, with Sleep & Hibernation Modes extend tip life till 5 times.

  • • Complete Tip Cleaning System, with exclusive Cartridge Exchanger, which increases efficiency.
  • • Connectivity:
    • - Fume Extractor
    • - Data Download
    • - Software Updates
    • - Traceability

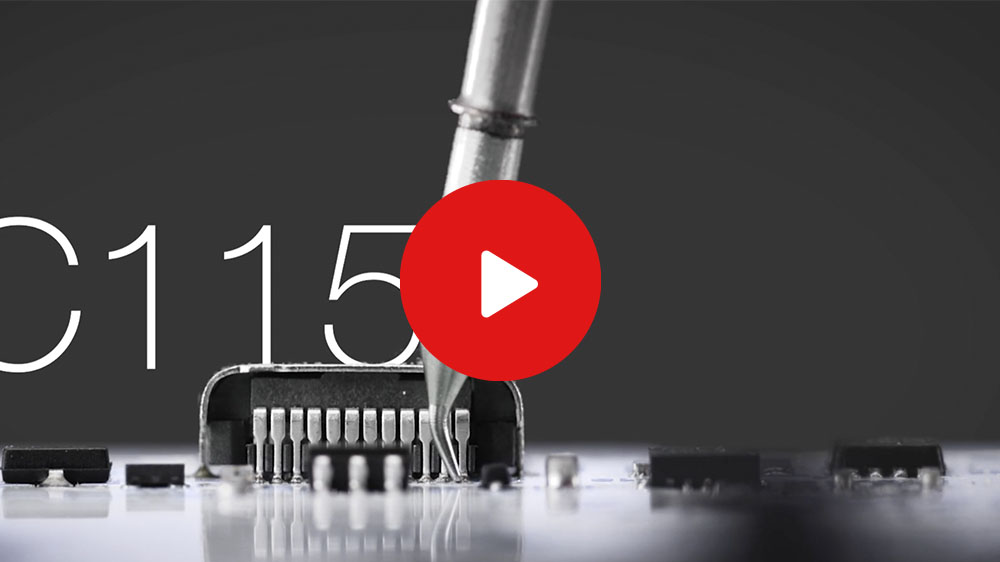

  • NT115 Nano Handle which works with our wide range of C115 Cartridges.

*Cartridge not included

CDN - High-Precision Soldering Station
CDN-9QF
100V
CDN-1QF
120V
CDN-2QF
230V
1
CD Control Unit
Peak power
25W
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Temperature accuracy
±3%
ESD safe
Meet ANSI/ESD S20.20-2014
Equipotential bonding
Connection to EPA
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2 mV RMS
FAE / Robot connector
Remote control or FAE Fume Extractor connection
Weight and dimensions
Control Unit
170 x 176 x 145 mm / 2.70 kg.
6.69 x 6.93 x 5.71 in / 5.95 lb.
Package
234 x 234 x 258 mm / 3.27 kg.
9.21 x 9.21 x 10.16 in / 7.21 lb.
