    HDRE-1B
    HDE-B Robot station

    DISCONTINUED

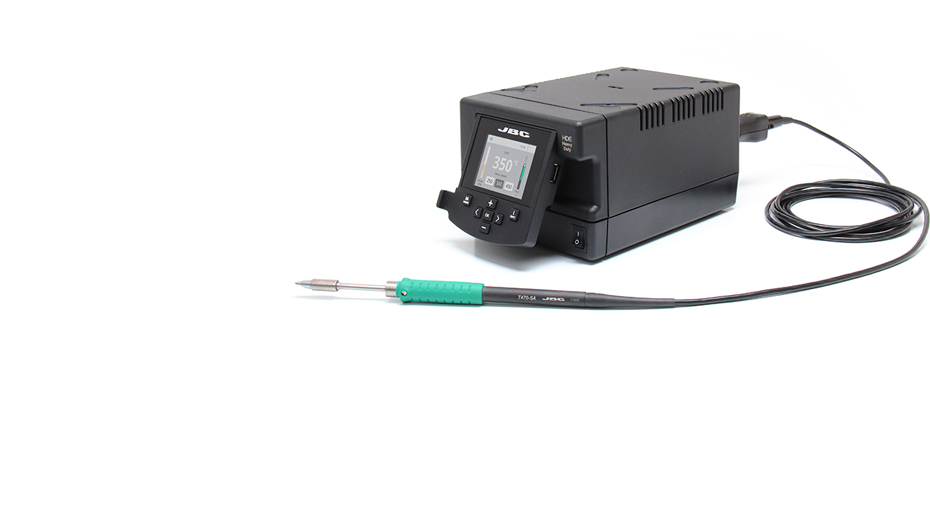

    HDRE-1B - HDE-B Robot station
    Don’t believe us...
    TRY IT!
    The ideal solution for repetitive jobs with robot requiring continued high thermal power.

    It includes the HDE Heavy Duty station which communicates with the robot through the RJ12 connector and in accordance with this Protocol.

    It also features the JBC exclusive heating system and the Excellence range benefits.

    The converter guarantees the sleep & hibernation modes without using a stand.

    The T470-SA Handle suits perfectly any robotic system thanks to its 3m cable and the screw to prevent the cartridge rotation.

    Cartridge not included.
    REFERENCE
    HDRE-1B
    PRODUCT COMPOSITION
    1
    HDE CONTROL UNIT HDE Control Unit
    SPECIFICATIONS
    Net weight
    3,98 kg (8.77lb)
    Dimensions
    145 x 120 x 225 mm
    5.71 x 4.72 x 8.86 in
    Voltage
    120V
    Input fuse
    4A
    Output peak power
    250W
    Temperature selection
    90-500 ºC (190-932 ºF)
    Idle temp. stability (still air)
    ±1.5 ºC (±3 ºF)
    Tip to ground resistance
    <2 ohms
    Tip to ground voltage
    <2 mV RMS
    Operating temp. range
    10-40 ºC (50-104 ºF)
    Communication connectors
    USB-A / USB-B / Peripherals
    Robot connector
    RJ12 for RS-232 protocol
    ESD safe
    Package weight
    4,39 kg (9.67lb)
    Package dimensions
    258 x 328 x 208 mm
    10.16 x 12.91 x 8.19 in
    3.978 kg (8.77 lb)
