DDVE
2 Tools Rework Station with Pneumatic Pump

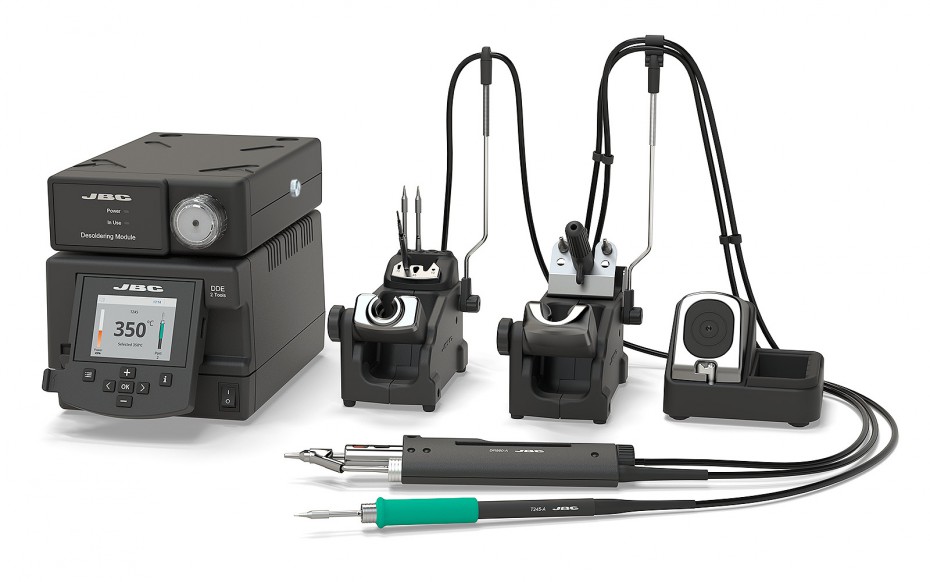

DDVE - 2 Tools Rework Station with Pneumatic Pump
A complete solution for fast and safe PCB repair.

The DDE 2 Tools Control Unit manages the tip
temperature and the MVE Pneumatic Desoldering Module sucks the solder. Clean and dry compressed air is required.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.

It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.

Although the unit is compatible with any JBC tool,
the DDVE works simultaneously with the DR560 Desoldering Iron and the T245 Handle.
Available in the following references:
120 V - Ref.

230 V - Ref.

100 V - Ref.

Net Weight8,35 kg (18.40lb)
DimensionsSee individual modules
Voltage(AC)120V / 230V / 100V
Input fuse4A / 2A / 5A
Output peak power150W per tool
Temperature selection90-450 ºC (190-840 ºF)
Idle temp. stability (still air)±1.5 ºC (±3 ºF)
Tip to ground resistance<2 ohms
Tip to ground voltage<2 mV RMS
Ambient operating temp.10-40 ºC (50-104 ºF)
Communication connectorsUSB-A / USB-B / Peripherals
Robot connectorRJ12 for RS-232 protocol
Vacuum at 6 Bar (MVE-A)90% / 680mmHg / 26.8inHg
Flow rate (MVE-A)15 SLPM
Air pressure (MVE-A)4-6 Bar
ESD safe
Package weight9,85 kg (21.72lb)
Package dimensions368 x 474 x 195 mm
(14.49 x 18.66 x 7.68 in)
