DISCONTINUED

120 V - 2 Tools Control Unit
Ref.
DD-1B

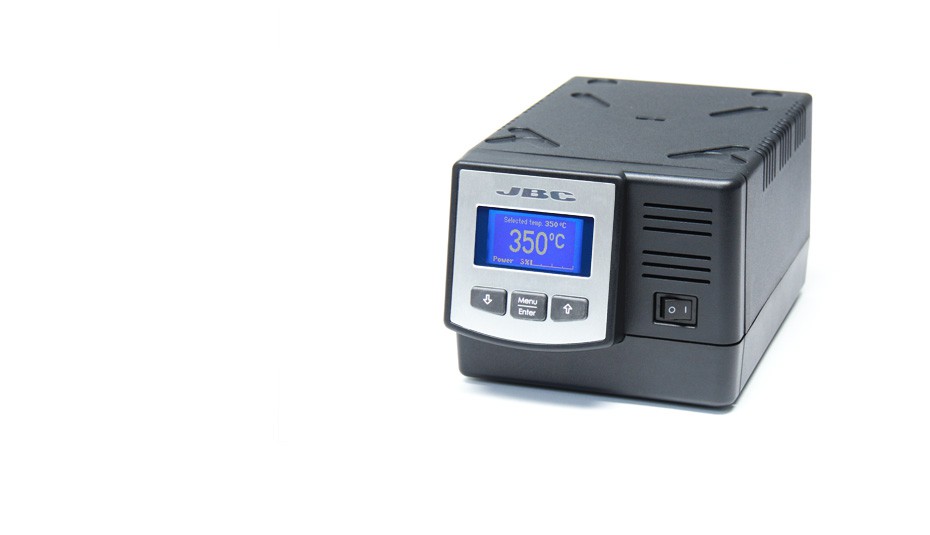

DD-1B - 2 Tools Control Unit
This control unit manages up to 2 soldering tools that can work simultaneously. It offers full connectivity to any kind of tools in order to build your own soldering or desoldering station.

For a basic working system, you also need at least 1 stand, 1 tool and 1 cartridge. There are available more than 300 cartridges to choose.

DD incorporates the JBC exclusive heating system that increases the work efficiency thanks to the fast temperature recovery.

The intelligent sleep and the hibernation feature enable to extend tip´s life more than 5 times.

Through the menu you can customize more than 20 functionalities in order to manage the soldering process.

Specifications
Net Weight3.6 kg (7.8 lb)
Size145x120x225 mm
Voltage(AC)120V
Input Fuse4A
Output Peak Power150W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB interface station-PC
Package weight3.9 kg (8.6 lb)
Package dimensions280x205x210 mm
Documentation

Manuals:
DD Manual(1.17 Mb)

Brochures:
Modular line(279 Kb)

Exploded View:
