Nitrogen generator module

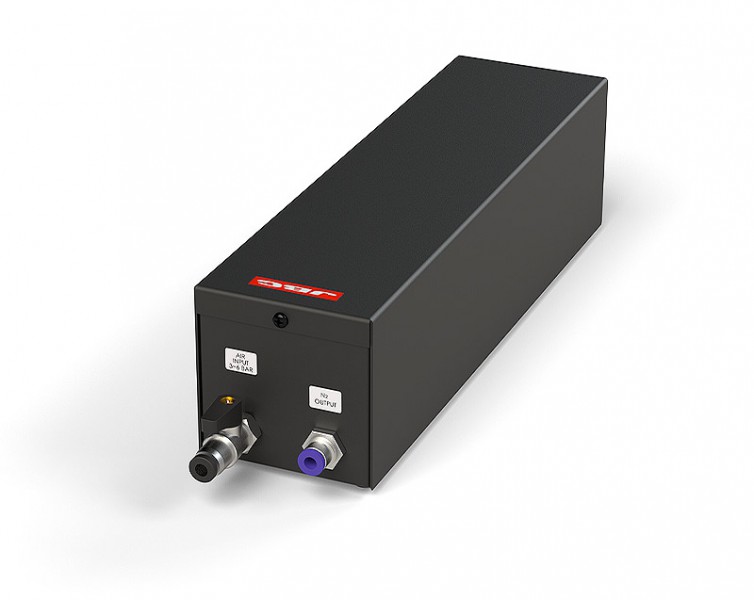

GN-A - Nitrogen generator module
Powered by a compressor unit

The GN-A supplies nitrogen to the T245-NA handpiece to provide extra heat and helps prevent tip oxidation.

This generator separates the nitrogen from the compressed air by means of a high-performance membrane.

The GN-A perfectly works with the MN-A nitrogen
flow regulator and with DI, DD or DM control units.
Net Weight2,00 kg (4.41lb)
Size85x90x355 mm
(3.35 x 3.54 x 13.98 in)
Compressed air pressure4 - 6 bar
Gas concentrationUp to 99%
Concentrated N2 gas flow1 - 2 SLPM
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
Package weight2,60 kg (5.73lb)
Package dimensions368 x 368 x 125 mm
(14.49 x 14.49 x 4.92 in)
