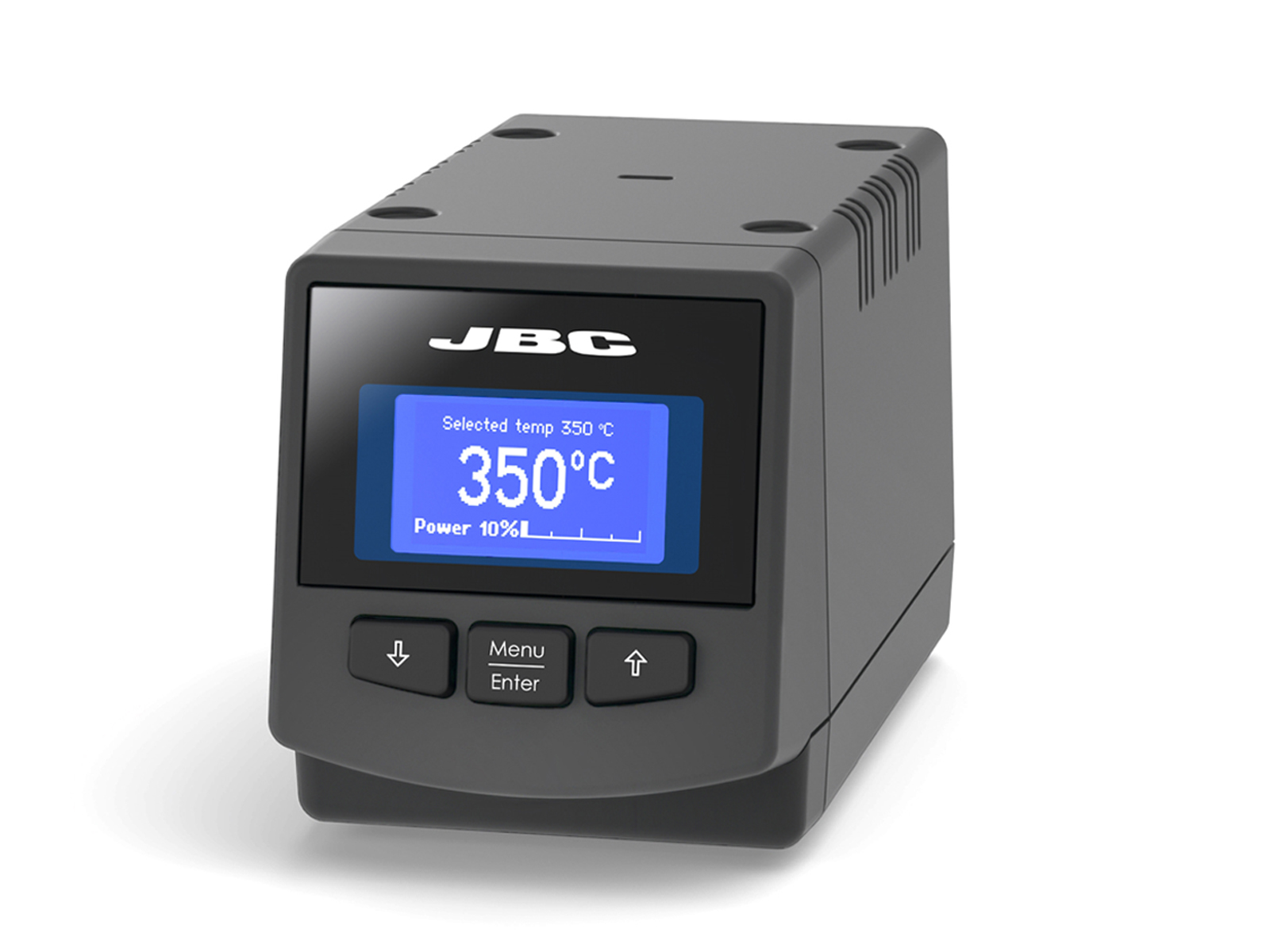

DI Control Unit
1-Tool

This control unit operates with one soldering or desoldering tool and is fully compatible with 10 different JBC Tools delivering up to 130 W.

It works with JBC Exclusive Heating System and Sleep & Hibernation Modes.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

The USB connector allows you to update software, create graphs and manage parameters from a PC.

For a basic working system, you need at least 1 stand, 1 tool and 1 cartridge.
DI - 1-Tool Control Unit
DI-9D
100 V
DI-1D
120 V
DI-2D
230 V
1
DI 1-Tool Control Unit
Peak power
130 W – 23.5 V
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Temperature accuracy
±3%
ESD safe
Meet ANSI/ESD S20.20-2021
Equipotential bonding
Optional connection to EPA
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2 mV RMS
USB-B
Peripherals connectors
Weight and dimensions
Control Unit
180 x 94 x 106 mm / 2.25 kg.
7.09 x 3.70 x 4.17 in / 4.96 lb.
Package
220 x 213 x 160 mm / 2.53 kg.
8.66 x 8.39 x 6.30 in / 5.57 lb.
