TESE-Q
Precision Hot Air station without extractor desk

TESE-Q - Precision Hot Air station without extractor desk

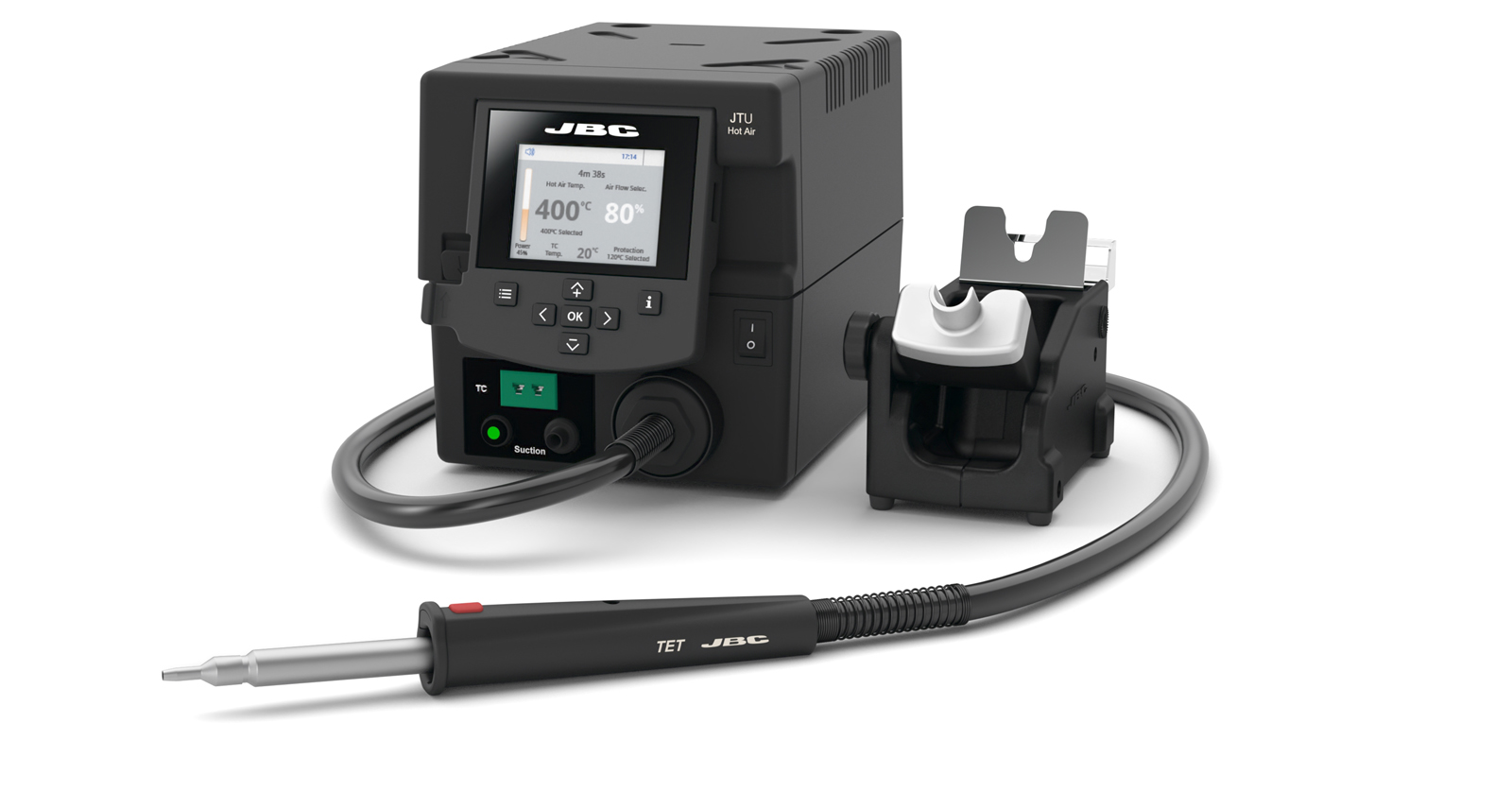

The TESE-Q is aprecision hot air Station capable of reworking small and medium SMDs. Watch video for examples.

Connecting an external thermocouple provides a high-precise close-loop control of the component/PCB during the rework process or can also be used to protect a component or a specific area of the PCB.

As all the JBC Stations, the TESE-Q has a menu with more than 10 parameters to customise the control unit.
Selectable Temperature
150 to 450 ºC (300-840 ºF)
Air flow
2 to 17 SLPM
Temperature profiles:
Design specific thermal profiles to avoid thermal shock during soldering processes.
Up to 25 fully configurable soldering profiles can be stored.
Operating modes
Heating / Profiles / Cooling
Vacuum
30% / 228 mmHg / 9 inHg

Connectivity
Type K thermocouple:
Can be used both for Control and Protection purposes.
USB-B (rear)
Software PC
USB-A (front)
Firmware update, Graphics / Profiles management
Robot
RS-232 remote control
Pedal
Optional tool control
Equipotential bonding
Optional connection to EPA

ESD/EOS
ESD safe

Power supply
Peak power
300 W
Ambient operating temp.
10 to 50 ºC / 50 to 120 ºF

Dimensions and weight
Premium Stations
230 x 148 x 160 mm / 3.44 kg.
9.06 x 5.83 x 6.30 in / 7.58 lb.
Package
474 x 368 x 195 mm / 4.41 kg.
18.66 x 14.49 x 7.68 in / 9.71 lb.
