Pneumatic Desoldering Module for DDE & DME

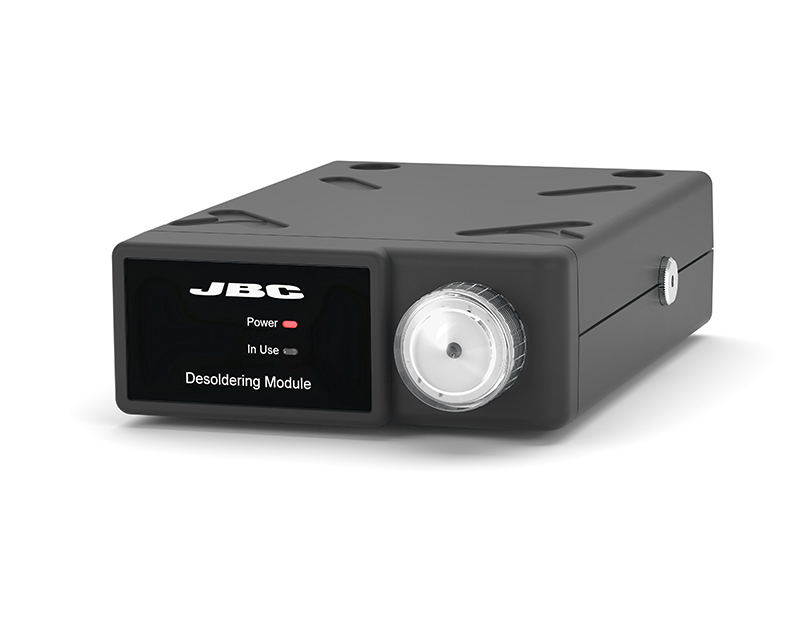

MVE-A - Pneumatic Desoldering Module for DDE & DME
Clean and dry compressed air is required.

The Pneumatic Desoldering Module is indispensable for a complete desoldering process.

By using compressed air and a Venturi valve, the system provides the best results due to its instantaneous vacuum ramp.

It is supplied with easy-to-change filters for extending the pump´s life.

The MVE can be joined to any port of the DDE & DME control units and has the possibility
to be controlled by the P-005 Pedal.

It works with the comfortable DS360 or DR560 desoldering irons and their corresponding tips.
Net Weight0,70 kg (1.54lb)
Dimensions145 x 55 x 225mm
(5.71 x 2.17 x 8.86 in)
Air pressure4 - 6 Bar
Vacuum (at 6 Bar)90% / 680mmHg / 26.8inHg
Flow rate15 SLPM
Ambient operating temp.10-40 ºC / 50-104 ºF
Pedal connection
ESD Safe
Package weight1,00 kg (2.20lb)
Package dimensions280 x 195 x 115 mm
(11.02 x 7.68 x 4.53 in)

MVE Manual(883 Kb)

Modular Line(622 Kb)

Exploded View:
Exploded View(419 Kb)
