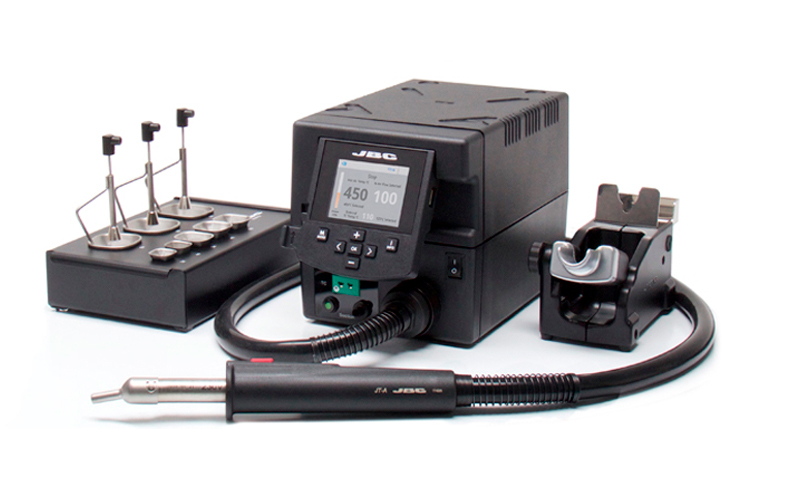

Hot Air station
It features along with the manual mode a powerful functionality of profiles to perform rework tasks with the maximum precision.You can control temperature values and air flow rate by creating up to 25 profiles.
Read the temperature at a specific point on the PCB with the control thermocouple. It helps
protect the components or a specific area on the PCB and provides greater precision when regulating the temperature.
A safety measure which ensures the heat is automatically cut off when the tool is in the JT-SD stand.
It comes with a complete extractor desk, tripods, protectors & extractors listed below.
Available languages: English, Spanish, German, French, Italian, Portuguese, Japanese, Chinese, Russian and Korean.
|Net Weight||3.5 kg (7.8 lb)|
|Dimensions (Control Unit)||148 x 184 x 140|
|Voltage (AC)||230V / 120V / 100V|
|Input Fuse||4A (230V), 8A (120V and 100V)|
|Nominal Power||700 W|
|Temperature selection||Room Temperature / 150-450 ºC (300-840 ºF)|
|Cool mode: temp. Off|
|Ambient operating temp.||10-40 ºC (50-104 ºF)|
|Air Flow Regulation||5 - 50 SLPM|
|Vacuum||30% / 228 mmHg / 9 inHg|
|Rated Current||3A (230V), 7A (100V-120V)|
|Pedal connection||P-005 Pedal|
|Package weight||4.1 kg (9 lb)|
|Package dimensions||300 x 275 x 135 mm|
