Hot Air station without extractor desk

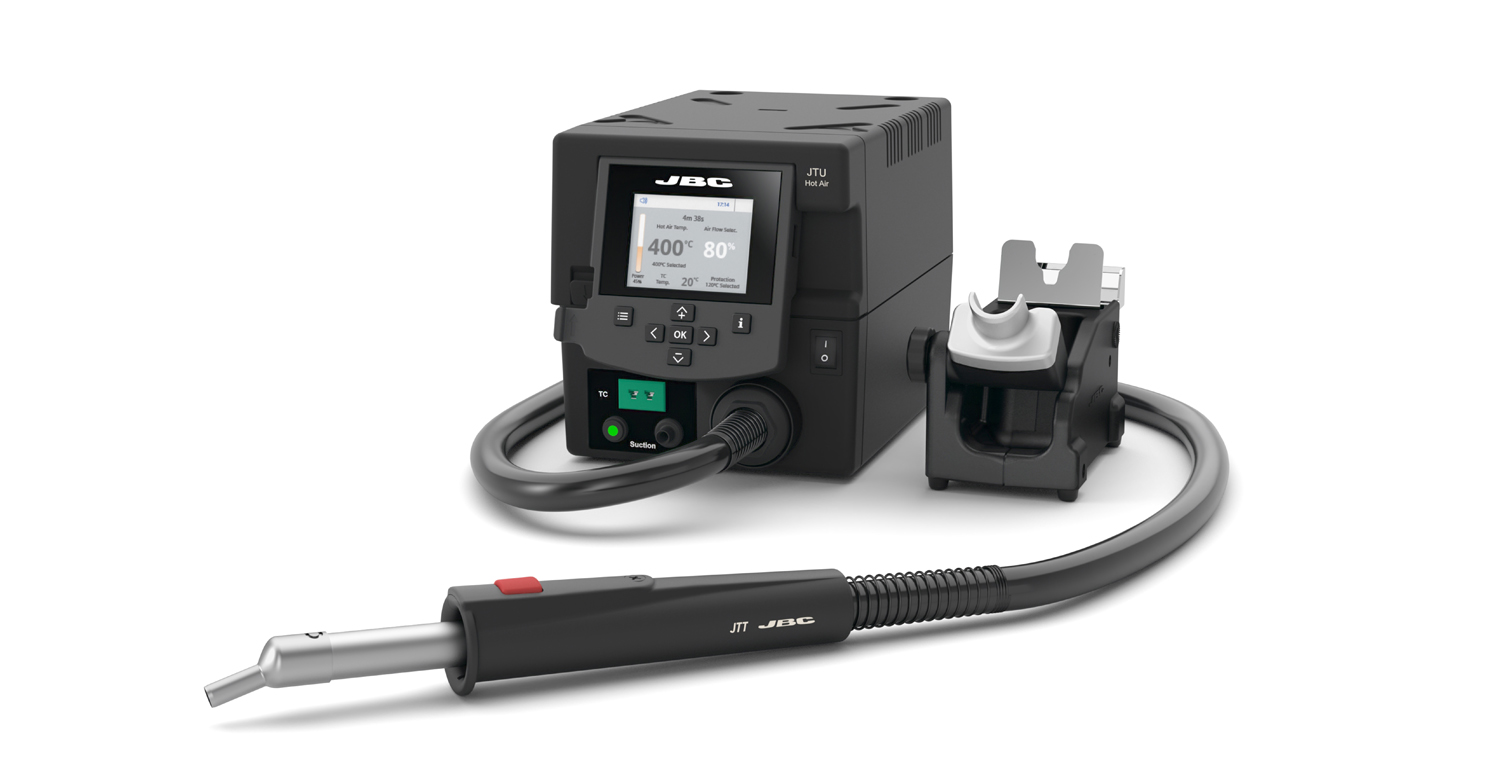

This is a high powered hot air station for repairing all types of SMDs quickly and safely, including the biggest QFPs and PLCCs.
Profiles mode It features along with the manual mode a powerful functionality of profiles to perform rework tasks with the maximum precision.You can control temperature values and air flow rate by creating up to 25 profiles.
Control thermocouple Read the temperature at a specific point on the PCB with the control thermocouple. It helps protect the components or a specific area on the PCB and provides greater precision when regulating the temperature.
Auto-stop function
A safety measure which ensures the heat is automatically cut off when the tool is in the JT-SE stand.
Available languages: English, Spanish, German, French, Italian, Portuguese, Japanese, Chinese, Russian and Korean.
JTSE-1QA - Hot Air station without extractor desk
Net weight
4,10 kg (9.05lb)
Dimensions (Control Unit)
148 x 184 x 140
5.83 x 7.24 x 5.51 in
120V / 100V
Input fuse
8A (120V and 100V)
Nominal power
700 W
Temperature selection
Room Temperature / 150-450 ºC (300-840 ºF)
Cool mode: temp. Off
Operating temp. range
10-40 ºC (50-104 ºF)
Air flow regulation
5 - 50 SLPM
30% / 228 mmHg / 9 inHg
Rated current
7A (100V - 120V)
Communication connectors
Pedal connector
P-005 Pedal
ESD safe
Package weight
5.171 kg (11.40 lb)
Package dimensions
474 x 368 x 195 mm
18.66 x 14.49 x 7.68 in
4.104 kg (9.05 lb)
