FSE
Fume Extractor Switch for DDE & DME

DISCONTINUED

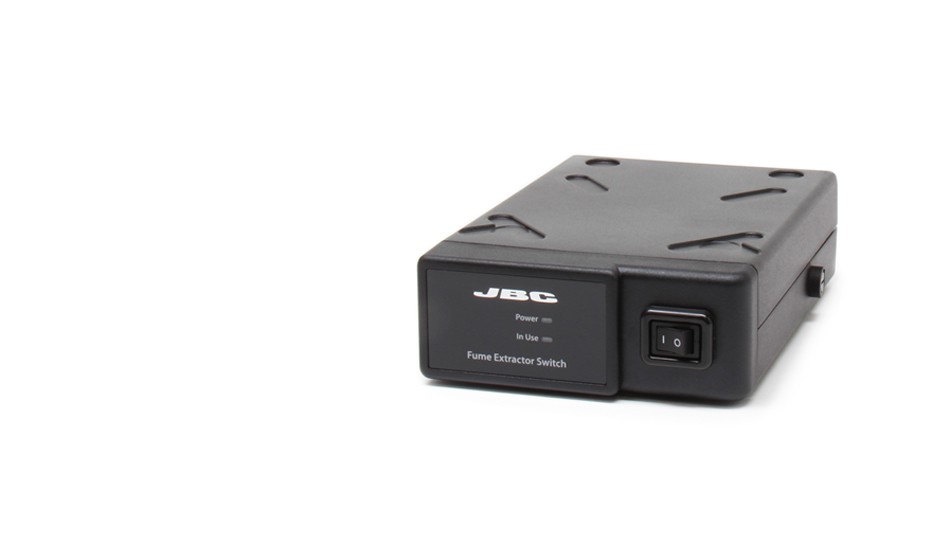

FSE - Fume Extractor Switch for DDE & DME
This accessory performs as a switch fumes suction system.

The feed of fume suction system is connected to the FSE and this to the network acting as a switch.

When the soldering iron is in the stand the fume suction system stops, returning to work by lifting the iron to use.

The FSE is compatible with DDE & DME control units and HDE station. It has the possibility to be controlled by the P-005 Pedal.
Net weight
0,91 kg (2.01lb)
Size
150 x 55 x 210 mm
5.91 x 2.17 x 8.27 in
Voltage
24V (from control unit)
Fuse
5A T
Ambient operating temp.
10-40 ºC / 50-104 ºF
ESD safe
Package weight
1,39 kg (3.06lb)
Package dimensions
243 x 115 x 75 mm
9.57 x 4.53 x 2.95 in
