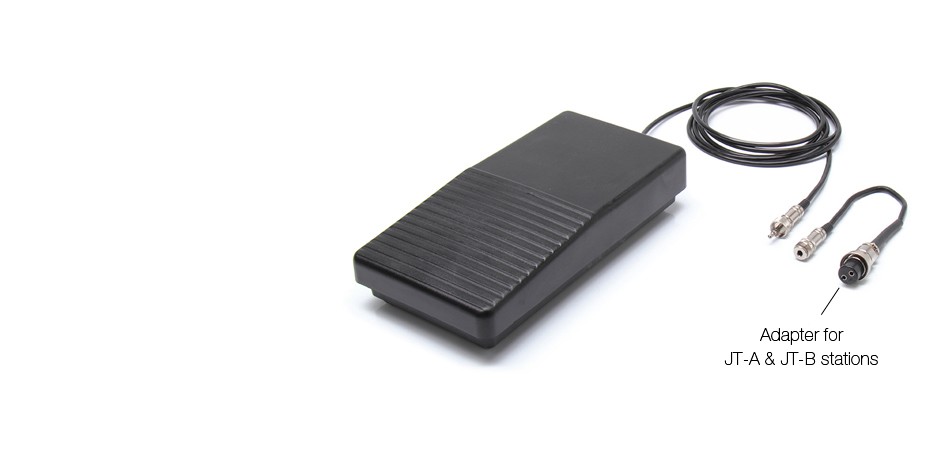

This foot switch makes the tool enter sleep or hibernation modes, causing no thermal stress when the component is placed on the PCB. Ideal for working with tweezers.
It also enables/disables any Excellence module and requires, at least, one of them to function (except when used with Nano stations).
You can select the activating mode (pressed or released) and set a minimum activation time.
It also works as start/stop button with Hot Air stations, Preheaters, Fume Extractor and Auto-Feed station.
It also enables/disables any Excellence module and requires, at least, one of them to function (except when used with Nano stations).
You can select the activating mode (pressed or released) and set a minimum activation time.
It also works as start/stop button with Hot Air stations, Preheaters, Fume Extractor and Auto-Feed station.
Net weight
0,41 kg (0.91lb)
Dimensions
100 x 200 x 40 mm
(3.94 x 7.87 x 1.57 in)
Cable length
1.9 m
Package weight
0,56 kg (1.24lb)
Package dimensions
300 x 125 x 65 mm
(11.81 x 4.92 x 2.56 in)
Compatible Stations
PreHeater
Compatible moduls
Fume Extractor
