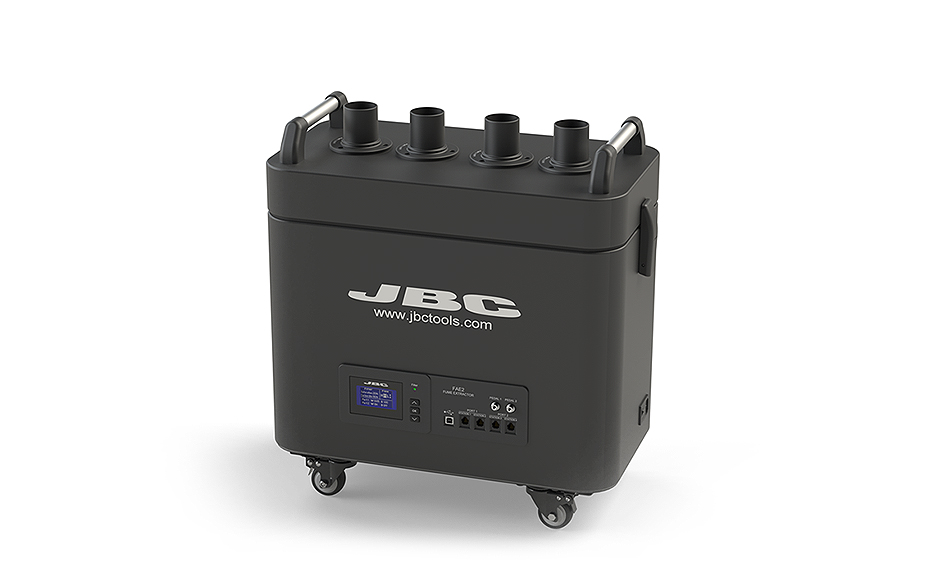

FAE2-5B
Fume Extractor
FAE2-5B
Fume Extractor
The FAE is the most efficient solution to avoid exposure to solder fumes. It optimizes fume extraction operating only when needed.
The extractor starts up only when soldering. This function saves power and the life of the equipment as well as the filter.
Thanks to a vacuum system integrated into the stand, the system also detects when the tool is at rest and automatically absorbs the fumes.
The FAE2 provides direct connection of up to 4 soldering or rework stations and stand fume extractions for up to 8 tools.
It can be controlled via JBC stations, a pedal, a robotic system or a PC.
It has 3 predefined levels of aspiration: low, medium and high, and a custom mode with which you can set the airflow within the low (10%) and max rates (100%).
The extractor starts up only when soldering. This function saves power and the life of the equipment as well as the filter.
Thanks to a vacuum system integrated into the stand, the system also detects when the tool is at rest and automatically absorbs the fumes.
The FAE2 provides direct connection of up to 4 soldering or rework stations and stand fume extractions for up to 8 tools.
It can be controlled via JBC stations, a pedal, a robotic system or a PC.
It has 3 predefined levels of aspiration: low, medium and high, and a custom mode with which you can set the airflow within the low (10%) and max rates (100%).
SPECIFICATIONS
Selectable parameters
Aspiration flow rate
Low / Medium / High / Custom
Operation modes
Automatic (JBC Stations)
Continuous
Pedal
RS-232 remote control
Others
Blower type
Brushless
Max. flow rate
290m3/h (170.7 CFM)
Max. vacuum
6.1 KPa (0.88 psi)
Work areas
2
Noise Level
54 dB @ 1m
Filters
Pre-filter
Medium dust filter M5 (EN 779)
Compact filters
H13 particle filter (EN 1822) + activated carbon filter
Connectivity
USB-B
Firmware update
Station 1-2 (RJ12)
Direct connection for 2 Stations
Aux (RJ45)
Peripheral expansion
Pedal
Optional tool control through Pedal P-005
ESD/EOS
ESD safe
Power supply
Peak power
400 W (120 V - 230 V)
320 W (120 V)
Ambient operating temp.
10 to 40 ºC / 50 to 104 ºF
Dimensions and weight
Unit
560 x 320 x 590 mm / 33.60 kg.
22.05 x 12.60 x 23.23 in / 74.07 lb.
Package
725 x 485 x 760 mm / 36.00 kg.
28.54 x 19.09 x 29.92 in / 79.37 lb.
