Precision Hot Air station

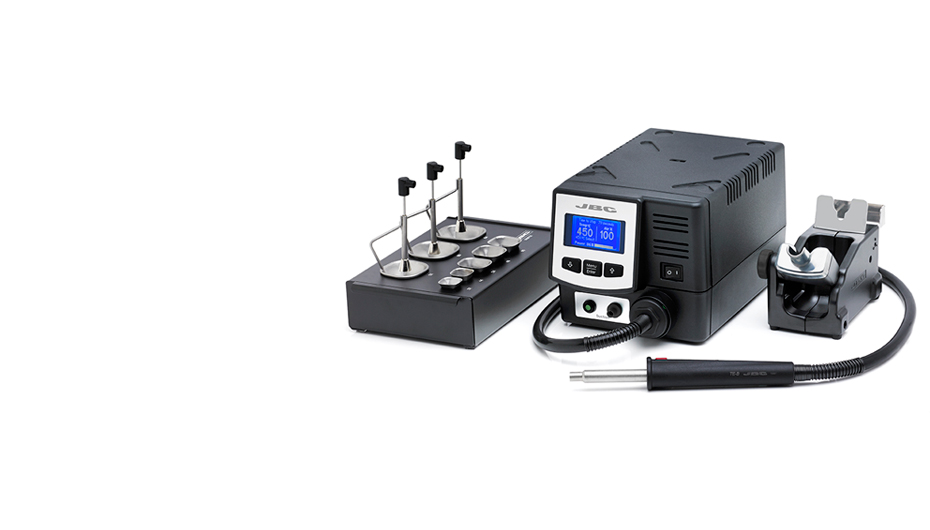

TE-2B - Precision Hot Air station
TE is a precision hot air station for repairing small and medium SMD quickly and safely.

The unit features two work modes -manual and profile- to manage efficiently the temperature and the hot air flow.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

The station works with the TE-TB heater
and incorporates a USB connector (type B).

It comes with a complete extractor desk and a heater stand with a quick nozzle changer.
Net Weight5.4 kg (11.9 lb)
SizeSee individual modules
Input Fuse4A
Nominal power300W
Temperature selectionRoom Temperature / 150-450 ºC (300-840 ºF)
Ambient operating temp.10-40 ºC (50-104 ºF)
Idle Temp. Stability+/-20 ºC / +/-36 ºF
ESD Safe
Air Flow Range5-20 SLPM
Vacuum30% / 228 mmHg / 9 inHg
Rated Current3A
Package weight6.5 kg (14.2 lb)
Package dimensions475x370x200 mm
