Convection Preheater Set

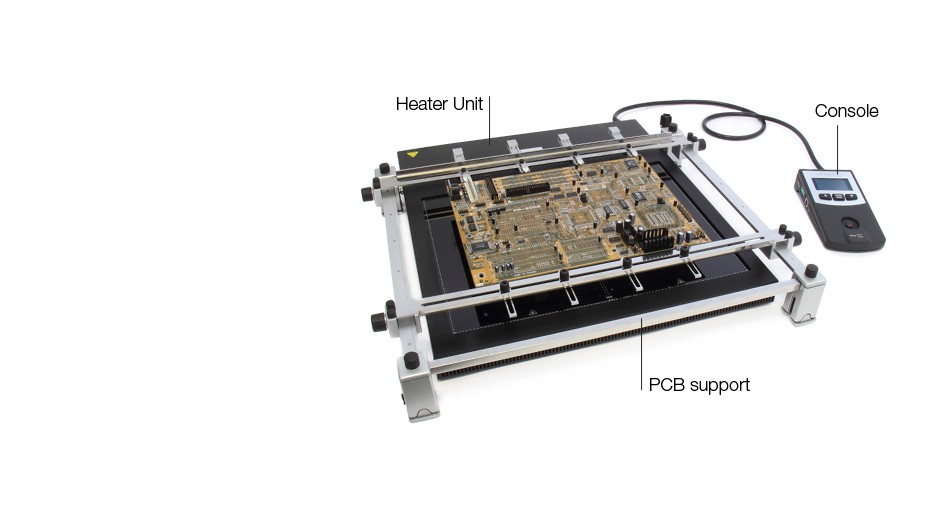

PHB-2KA - Convection Preheater Set
Heating area 360 x 277 mm.

The most complete solution to preheating
large PCBs. Essential for soldering on multilayered boards.

Uniform heat distribution with 2 independent
heating zones
. The heater is protected by high resistance glass.

It has 3 adjustable heights and can fit
all sizes and shapes of PCBs.

3 preset temperature profiles and
20 more user defined profiles.

The Control Thermocouple follows a temperature profile precisely and the auxiliary Thermocouple protects PCB´s components.
Net Weight9.790 kg (21.58 lb)
Dimensions Heater Unit426 x 446 x 41 mm
Maximum Power1800W
Heating Area180 x 277 mm (1 zone)
360 x 277 mm (2 zones)
Temperature Range50 to 250ºC (120 to 482ºF)
Temperature MeasurementThermocouple type K
JBCset Temperature Profiles3 profiles ( 2, 3 or 4 steps)
User Temperature Profiles20 (up to 6 steps for each)
Maximum work time:600 min. or indefinite
Fuse10 A T
Package weight11.986 kg (26.42 lb)
Package dimensions595 x 520 x 180 mm
(23.43 x 20.47 x 7.09 in)
