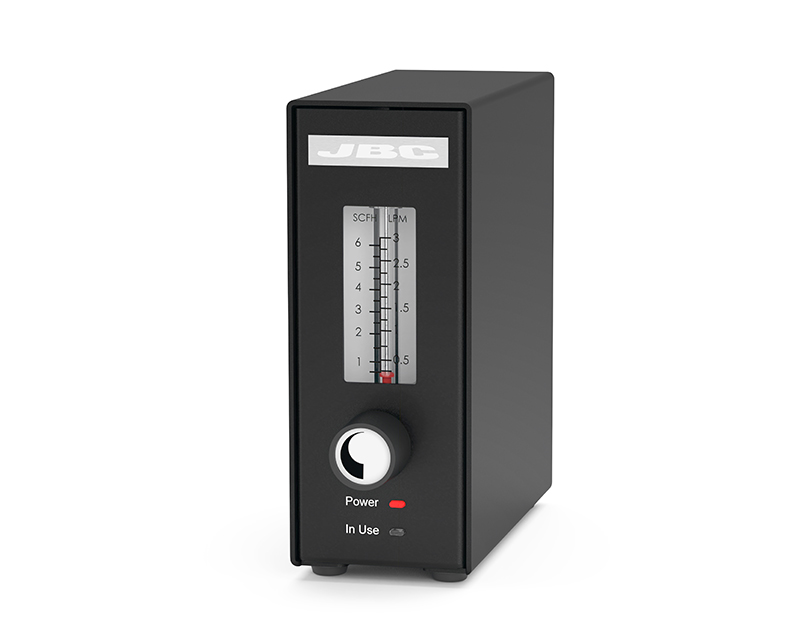

MNE-A
Nitrogen Flow Regulator for DDE, DME & HDE

Nitrogen improves the quality of any solder joint as it provides extra heat and helps prevent tip oxidation.

The MNE-A regulates nitrogen flow to the soldering tip in order to optimize consumption.

It automatically activates the flow when you remove the Nitrogen Handles (T210-NA, T245-NA or T470-NA) from the stand. The flow stops when the Handle is placed back and the tip temperature drops to the sleep temperature.

It requires the GN-A Nitrogen Generator or an available nitrogen supply at the operator´s bench.

The MNE-A can be joined to any port of the DDE, DME & HDE control units and has the possibility to be controlled by the P-005 Pedal.
MNE-A - Nitrogen Flow Regulator for DDE, DME & HDE
Voltage
24V (from control unit)
Power
3W
N2 pressure range supply
3-5 Bar
Max. pressure
6 Bar
N2 flow regulation
0.5 - 3 SLPM
Recommended N2 flow
1-2 SLPM
Ambient operating temp.
10-40 ºC / 50-104 ºF
ESD safe
Dimensions and weight
Control Unit
130 x 55 x 140 mm / 1.14 kg.
5.12 x 2.17 x 5.51 in / 2.52 lb.
Package
280 x 195 x 115 mm / 1.30 kg.
11.02 x 7.68 x 4.53 in / 2.86 lb.
