HA470
Soldering Unit for Robot

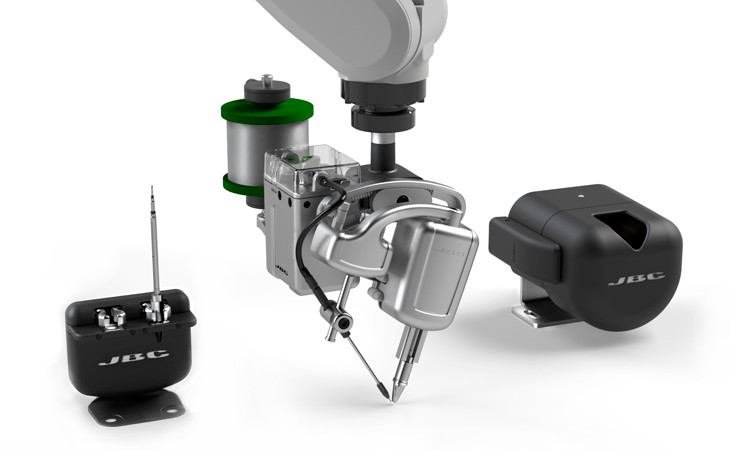

HA470 Soldering Unit for Heavy Duty Soldering makes the first selective soldering solution featuring Automatic Cartridge Exchange available to the electronic industry.

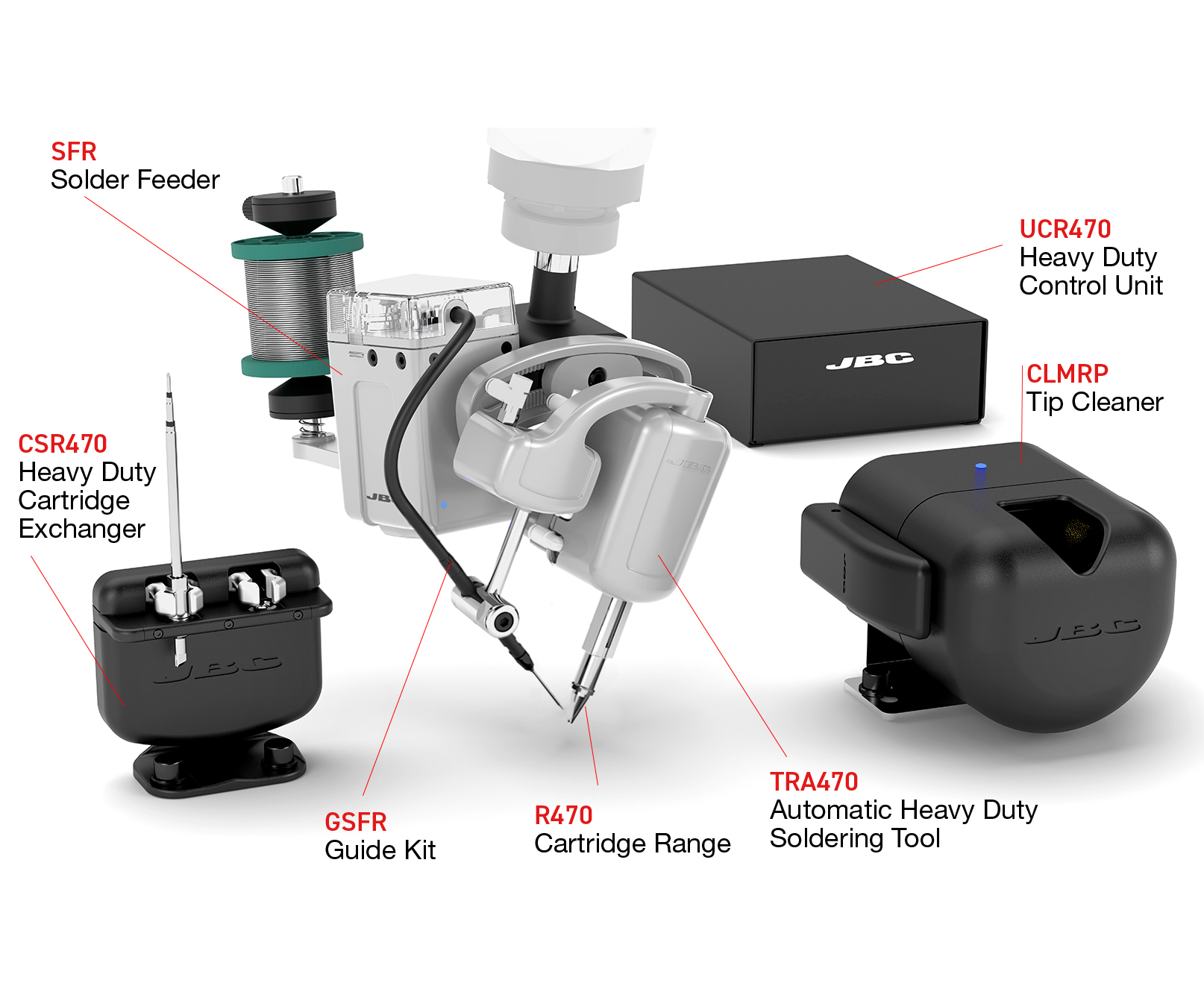

TRA470 Automatic Soldering Iron, in combination with CSR470 Cartridge Stand, feature Automatic Cartridge Exchange which allows the soldering robot using different tip geometries to get the highest soldering quality.

SFR Solder Feeder, includes a solder wire perforation function, allowing flux flow and outgassing to minimize solder splashing.

CLR Tip Cleaner with its 50 mm (1.97") diameter, brushes the soldering tip thoroughly clean in just 1 second increasing its heat transfer capacity.

In order to establish the communication between UCR470 Control Box and the robot (PC or PLC) JBC provides the RS232 Communication Protocol. Download at www.jbctools.com.

R470 Cartridges and GSFR Guide Kit are not included.
HA470A-5B - Soldering Unit
Selectable parameters
Selectable Temperature
90 to 450 ºC (190 to 840 ºF)
Solder wire length
0.5 to 250 mm / 0.02 to 9.84 in
Solder wire speed
0.5 to 120 mm/s / 0.02 to 4.72 in/s
Solder compatibility
Wire diameter
0.5 to 1.5 mm / 0.020 to 0.062 in
Special features
Cartridge compatibility
Automatic cartridge exchange
The TRA features automatic
cartridge exchange which allows the soldering robot using different tip geometries to get the Highest Soldering Quality or automatically changing the cartridge when the one being used wears out.
Solder Wire Perforation
Specific GSFR solder wire guide
sets for flux core perforation are available allowing flux flow and outgassing to minimize solder splashing.
Fast, thorough and gentle tip cleaning:
The Tip Cleaner CLMR with its
50 mm (1.97") diameter brushes thoroughly clean the soldering tip in just 1 second increasing its
heat transfer capacity. Brushes
are available with metal or plastic bristles.
ESD/EOS
ESD safe
Tip to ground resistance
<2 ohms
Power supply
Peak power
250 W - 42 V
Ambient operating temp.
10 to 40 ºC / 50 to 104 ºF
For extended information follow the links
Control Box
Automatic Solder Iron
Solder Feeder
Cartridge Stand
Tip Cleaner
Dimensions and weight
Package
545 x 345 x 275 mm / 6.0 kg
21.5 x 13.6 x 10.8 in / 13.23 lb
