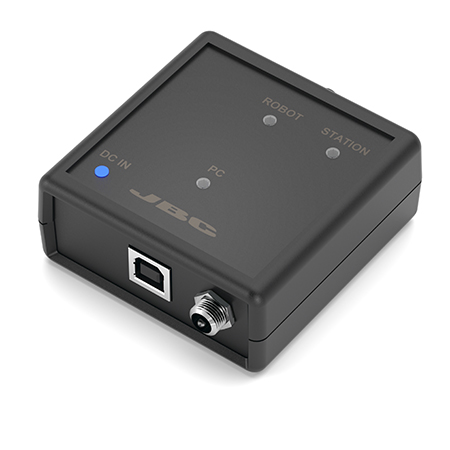

SKR
Communication Debugger for Robot

SKR is an optional device that has been developed to test the communications between PC and JBC devices:


The software Robot Control Program, allows to send example frames to test the communications, connections and the device correct behavior.

See corresponding “Communication Protocol”:
SKR-A - Communication Debugger for Robot
SKR-A
1
SKR Communication Debugger for Robot
Connections

USB A/B Cable* to connect SKR with PC/PLC.

Communication cable* to connect JBC devices with SKR.

AC Adapter*.

*included
Complies with CE standards
Weight and dimensions
Package
256 x 184 x 42 mm / 0.57 kg.
10.08 x 7.24 x 1.65 in / 1.25 lb.
