4 Tools Control Unit

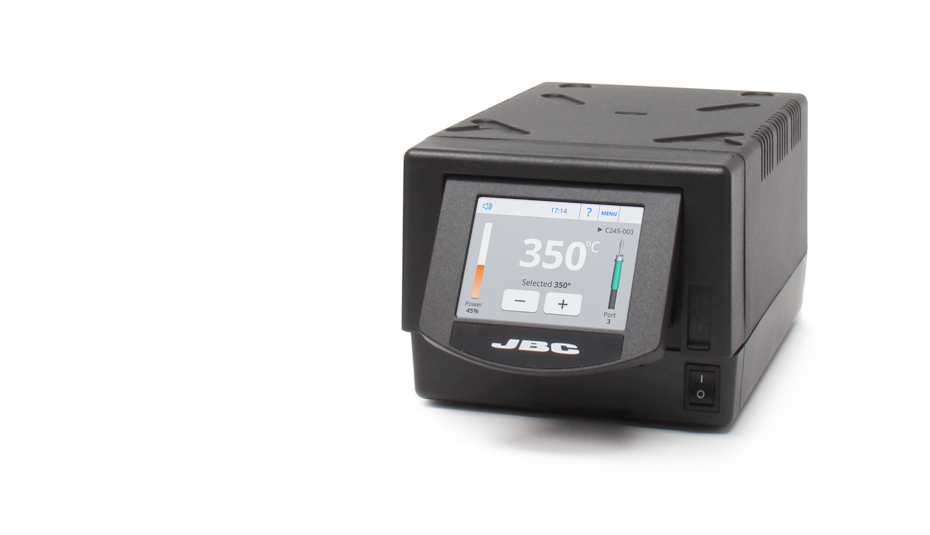

DME-9A - 4 Tools Control Unit
The DME manages up to 4 tools simultaneously and it is fully compatible with most of JBC tools.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.

It features all the Excellence range benefits such as station customization, full control over the soldering process and remote work management.

The easy-to-use menu helps you monitor the work in real time: graphics, partial counters or simultaneous control of ports.

The DME also provides you with extra applications that support your work: USB microscope, file storage, unit converter, video, etc.

For a basic working system, you need 1 stand, 1 tool and 1 cartridge.
Selectable parameters
90 to 450 ºC / 190 to 840 ºF
Dynamic Soldering Profiles
Designed to avoid thermal shock when soldering Ceramic Chip components like MLCC, this new and unique feature allows controlling the heating ramp up rate of the tool to gradually increase the temperature of the
component through all the phases of the soldering process. Up to 25 fully configurable soldering profiles can be stored.
Special features
These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max. and min. temperature:
Limit the temperature range in which the operator is allowed to work.
Temperatue levels
Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
Soldering graphics
Real time visualization of tip temperature and power delivered to the solder joint during soldering process.
PIN protection
Keep station parameters protected against unauthorized access.
10 user interface languages
English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean, Chinese.
USB-B (rear)
Software PC / Traceability
USB-A (front)
Firmware update.
Soldering Graphics / Profiles management.
Dino-Lite USB microscope connection. Compatible models: AM2011 and AM2111.
RS-232 remote control or Smart Fume Extractor connection
Remote control / Traceability
Interconnection of up to 5 PSE control units to manage up to 24 tools simultaneously.
Equipotential bonding
ESD safe
Power supply
Peak power
160 W per tool – 23.5 V
Voltage (AC)
ref. DME-9A - 100 V
Ambient operating temp.
10 to 40 ºC / 50 to 104 ºF
Dimensions and weight
Control Unit
148 x 120 x 232 mm / 4.57 kg
5.8 x 4.7 x 9.1 in / 10.08 lb
258 x 328 x 208 mm / 4.97 kg
10.2 x 12.9 x 8.2 in / 10.96 lb

DME Manual(1.78 Mb)

Exploded View:
Exploded View(601 Kb)
