1 Tool Control Unit

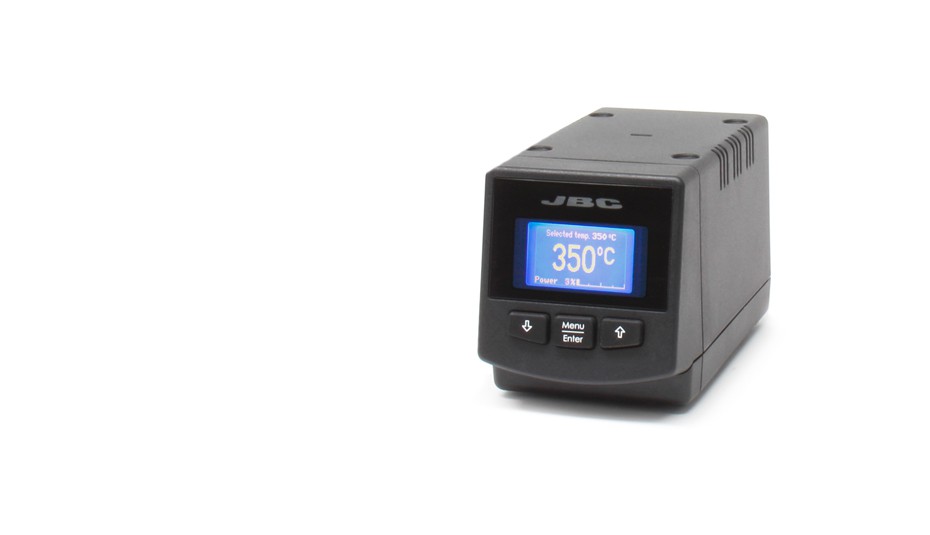

DI-1D - 1 Tool Control Unit
This control unit manages 1 tool for soldering or desoldering.

It offers full connectivity to any of JBC tools in order to set up your personalized station.

The DI works with the JBC Exclusive Heating System and the intelligent sleep & hibernation features to extend a tip´s life up to 5 times longer.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

The USB connector allows to update software, create graphs and manage parameters from a PC.

For a basic working system, you need at least 1 stand, 1 tool and 1 cartridge. See the full cartridge range.

Net weight
2,15 kg (4.75lb)
(0.35 x 0.39 x 7.09 in)
Input fuse
Output peak power
130W / 23.5V
Temperature selection
90-450 ºC / 190-840 ºF
Tip to ground resistance
<2 ohms
Ambient operating temp.
10-40 ºC / 50-104 ºF
ESD safe
USB interface station-PC
Package weight
2,50 kg (5.51lb)
Package dimensions
220 x 213 x 160 mm
(8.66 x 8.39 x 6.30 in)

DI-D Manual(1.63 Mb)

Modular Line(622 Kb)

Exploded View:
Exploded View(537 Kb)
