230 V - Micro Tweezers station

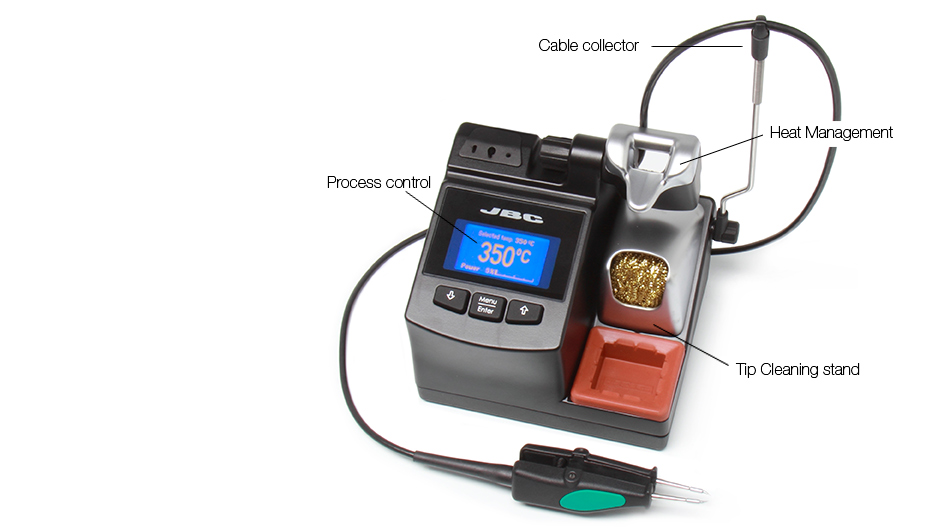

CP-2D - Micro Tweezers station
The CP is a soldering and desoldering station for small and medium SMD components.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It features a USB connector to update software, create graphs and manage parameters from a PC.

Complete cleaning system with an antisplash membrane to keep the work area clean. Choose from 3 cleaning methods. Use the integrated wiper to remove excess solder from the tip.

CP works with the lightest and ergonomic PA120 microtweezers and the C120 cartridges.
Product Composition
Control Unit:
CP with tip cleaning system
Net Weight2.702 kg (5.95 lb)
Size150x175x145 mm
Input Fuse1A
Output Peak Power80W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB station-PC
Package weight3.141 kg (6.92 lb)
Package dimensions234 x 234 x 258 mm

CP-D Manual(1.62 Mb)
PA120-A Manual(1.18 Mb)

Compact Line(371 Kb)

Exploded View:
Exploded View(685 Kb)
