Try them out now and
see the difference for yourself!
Try them out now and
see the difference for yourself!
Automatic dispensing ensures
uniform solder joints.
Continuous solder supply
reduces interruptions.

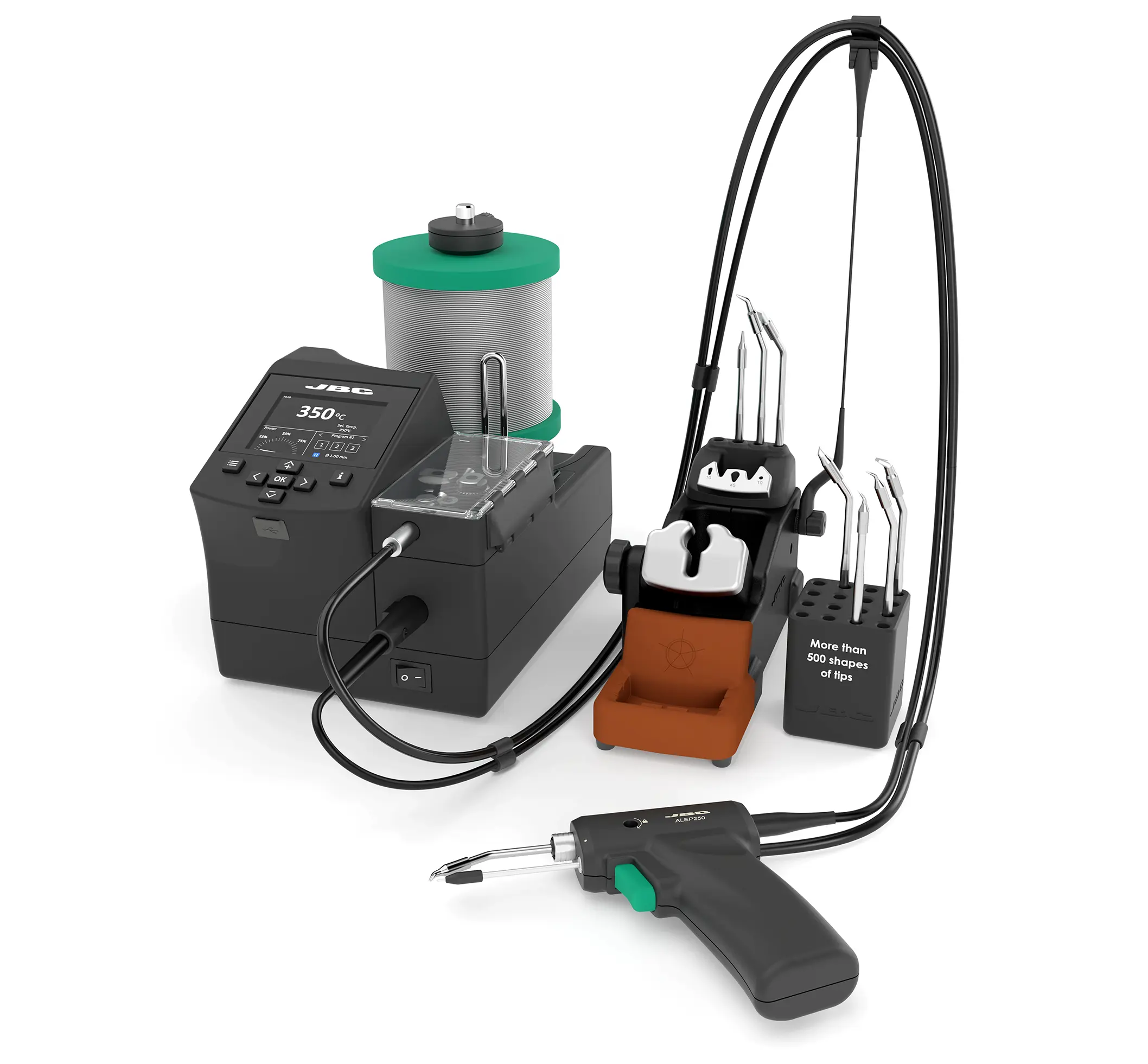

ALEP250 ergonomic design improves
stability in repetitive tasks.

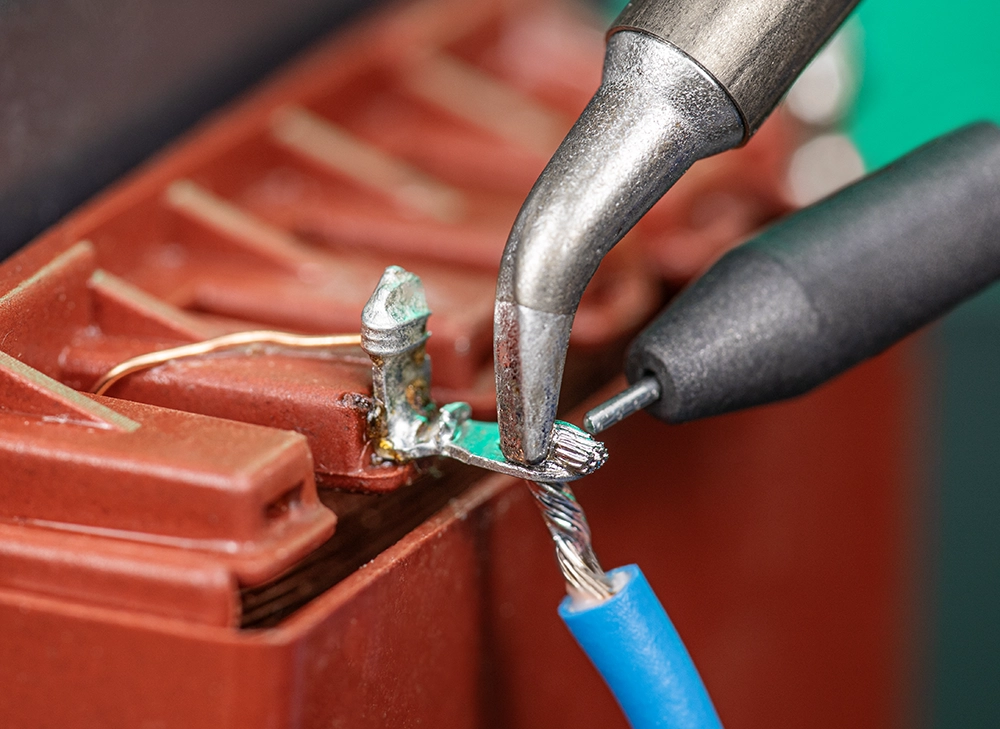

Perfect for soldering wires to PCBs or terminals. The system frees one hand to hold the cable, improving stability and precision during the process.

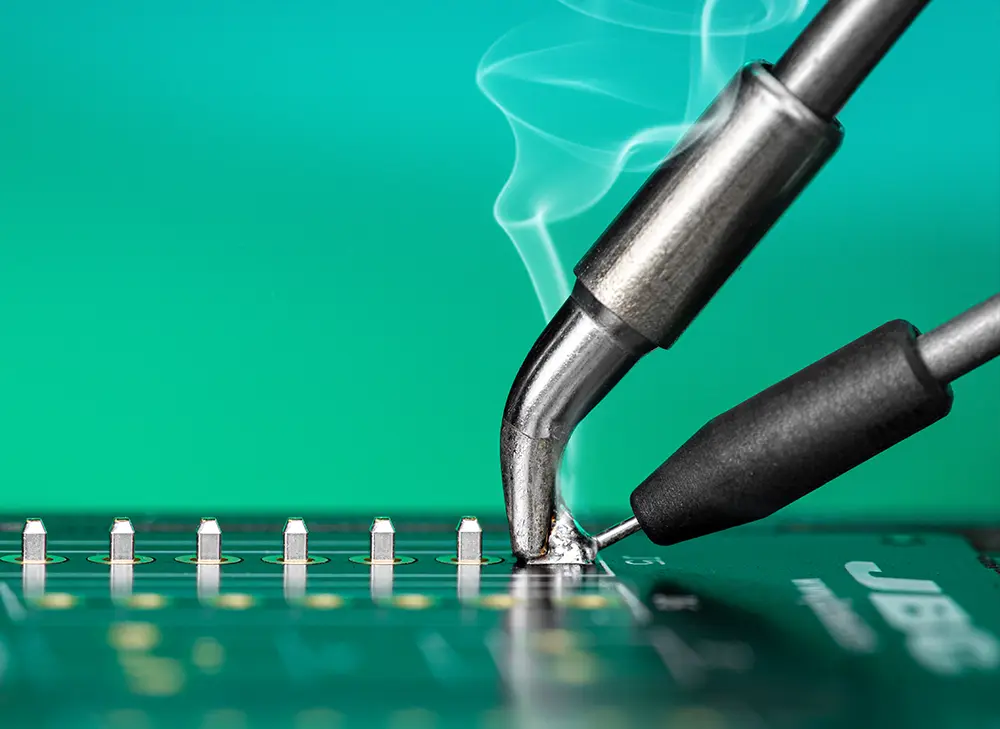

Ideal for through-hole components that require consistent solder volume and reliable joint quality. Automatic feeding ensures uniform results across repetitive joints.
Automatic-Feed technology improves repeatability and efficiency in manual soldering processes by automatically dispensing the programmed amount of solder wire.
A symmetrical design ensures precision and repeatability with every cut.
Ideal for applications where joints require different amounts of solder.
Operator-controlled feed of solder wire at a constant speed.

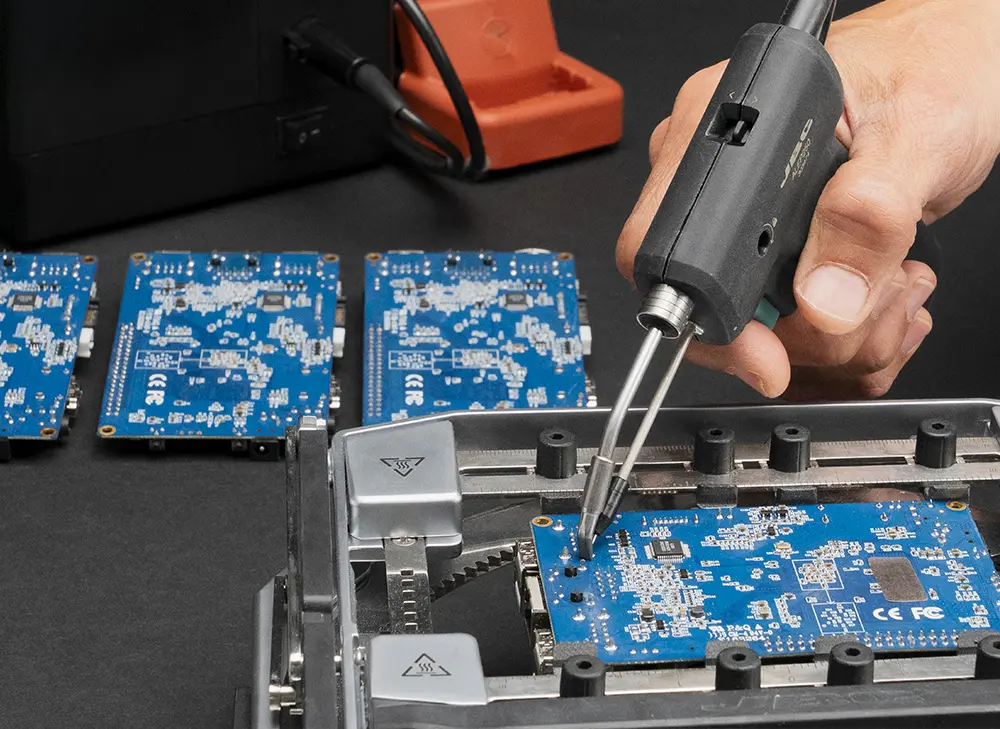

Best suited for repetitive soldering applications.
Solder wire amount and speed are fully programmable, automatically dispensed on each click.

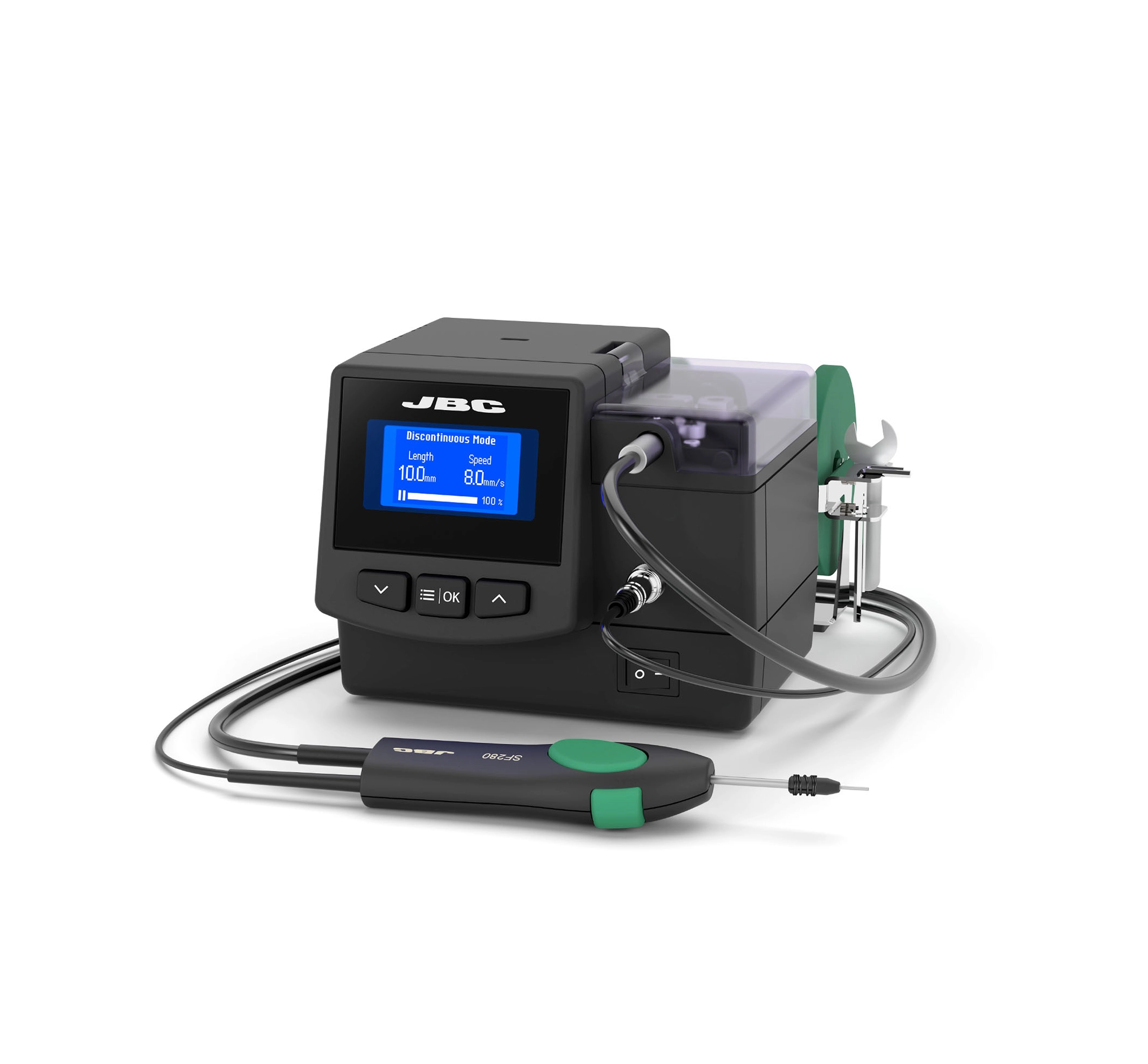

For soldering operations that require pre-tinning or controlled solder feed at different speeds.
Fully customizable, with up to 5 programs, each with 3 individual steps, for greater process control and efficiency.
Make the most of JBC Station's full capabilities such as station customization, full control of soldering processes and remote process management.
Faster, more intuitive top-performing upgraded display.
Quick and precise station configuration through the 7-key keypad.
Without switching the station off, you can carry out different soldering tasks safely in just a few seconds.

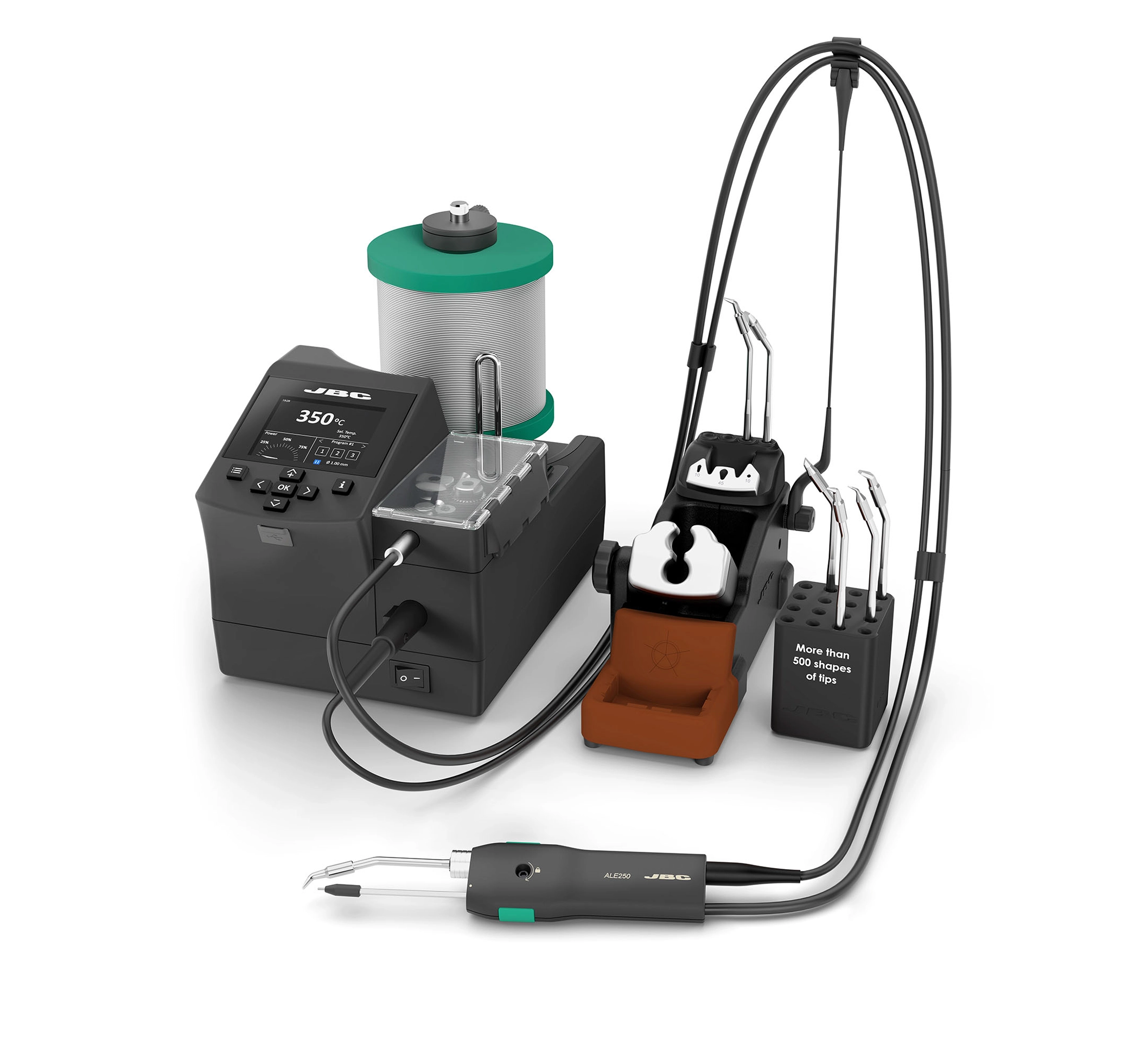

This station allows you to reload the solder wire easily, supporting reels of up to 2 kg / 4.40 lb.
Furthermore, it incorporates all the tools needed for reel changes and cartridge alignment.
Connect JBC devices and accessories to your ALE Station for greater soldering results.
• FAE Fume Extractors
• Foot pedal
The upgraded stand includes:
1. Tip Cleaner with brass wool to prevent oxidation between cleaning and rewetting.
2. Antisplash Membrane to keep the work area clean.
Additionally, the Cartridge Holder stores up to four cartridges.

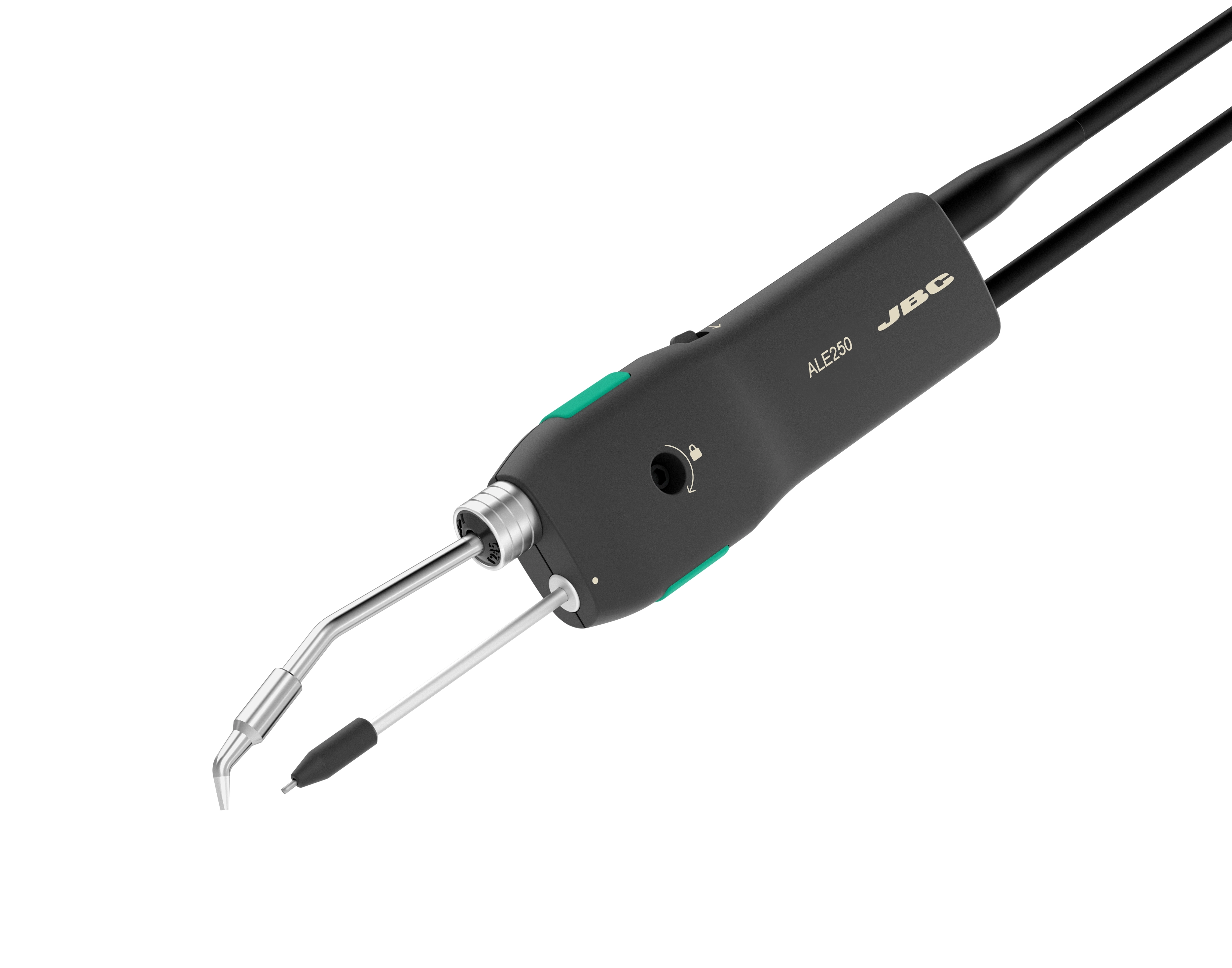

| Tool | ALEP250 Angled Automatic-Feed Soldering Iron | ALE250 Automatic-Feed Soldering Iron | SF280 Automatic Solder-Wire Handle |
| Solder wire diameter | 0.4 - 1.8 mm / 0.02 - 0.07 in | 0.4 - 1.8 mm / 0.02 - 0.07 in | 0.5 - 1.5 mm / 0.02 - 0.06 in |
| Compatible Cartridges | C250 & C250E | C250 & C250E | No cartridge |
| Job Type | General Purpose | General Purpose | All |
| Sleep & Hibernation Modes | |||
| Cartridge Holder | |||
| Cartridge Extractor | |||
| Pedal Connector | |||
| Connection Station-PC | USB-B | USB-B | USB-B |
| Update Files | USB-A | USB-A | USB-B |
| Peripherals | FAE / pedals | FAE / pedals | Pedal |
| Soldering Assistant | |||
| Output Peak Power | 150 W | 150 W | - |
| Temperature Range | 90 to 450 ºC / 190 to 840 ºF | 90 to 450 ºC / 190 to 840 ºF | - |
| Ambient Operating Temperature | 10 to 50 ºC / 50 to 122 ºF | 10 to 50 ºC / 50 to 122 ºF | - |
| Idle Temp. Stability (still air) | ±1.5ºC / ±3ºF | ±1.5ºC / ±3ºF | - |
| Temp. Accuracy | ±3% | ±3% | - |
| Temp. Adjustment | ±50ºC / ±90ºF | ±50ºC / ±90ºF | - |
| Tip-to-Ground Voltage/Resistance: |
Meets and exceeds ANSI/ESD S20.20 IPC J-STD-001F |
Meets and exceeds ANSI/ESD S20.20 IPC J-STD-001F |
- |
| Earthing Fuse | F 1.25A | F 1.25A | - |
| Reel Weight | Up to 2 kg / 4.41 lb | Up to 2 kg / 4.41 lb | Up to 1 kg / 2.2 lb |
| Max. Reel Diameter | 100 mm / 3.94 in | 100 mm / 3.94 in | 80 mm / 3.15 in |
| Max. Reel Height | 100 mm / 3.94 in | 100 mm / 3.94 in | 75mm / 2.95 in |
| Max. Wire Length | 250 mm / 9.84 in (for discontinuous + program mode) |
250 mm / 9.84 in (for discontinuous + program mode) |
250 mm / 9.84 in |
| Min. Wire Length | 0.5 mm / 0.02 in | 0.5 mm / 0.02 in | - |
