UCR

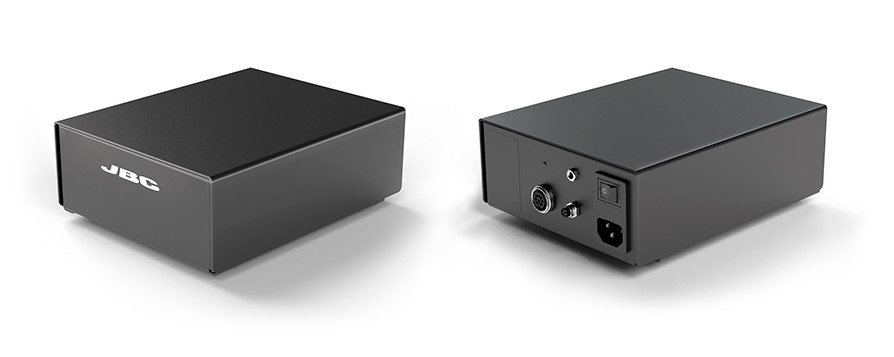

Control Unit for Robot

UCR Control Unit manages TR and TRA, specially developed for automated soldering processes.

UCR245 is used for standard soldering requirements and UCR470 for heavy duty requirements.

More than 40 commands help control parameters such as Temperature, Sleep, Hibernation and Control Unit status. It also allows you to get information about errors and hours counter.

In order to establish the communication between UCR Control Unit and the robot (PC or PLC) JBC provides RS232 Communication Protocol. Download it here.
UCR - Control Unit
Special features
Cartridge compatibility
UCR245:R245
UCR470:R470
Tool compatibility
UCR245 / UCR470:
Solering Tool: TR245 / TR470
Automatic Unit: TRA245 / TRA470
Selectable parameters
Selectable temperature
UCR245:
90 to 450 ºC (190 to 840 ºF)
UCR470:
90 to 500 ºC (190 to 930 ºF)
Connectivity
Tool connection
M16-8pins
Serial communication RS-232
M8-5pins
Equipotential bonding
ESD/EOS
ESD safe
Tip-to-ground resistance
<2 ohms
Power supply
Peak power
UCR245: 160 W - 21 V
UCR470: 250 W - 42 V
Operating temp. range
10 to 40 ºC / 50 to 104 ºF
Weight and dimensions
Control Box
210 x 162 x 75 mm / 2.20 kg
8.3 x 6.4 x 3.0 in / 4.85 lb
Package
328 x 258 x 208 mm / 2.60 kg
12.9 x 10.2 x 8.2 in / 5.73 lb
