JT-2B
Hot Air station

DISCONTINUED

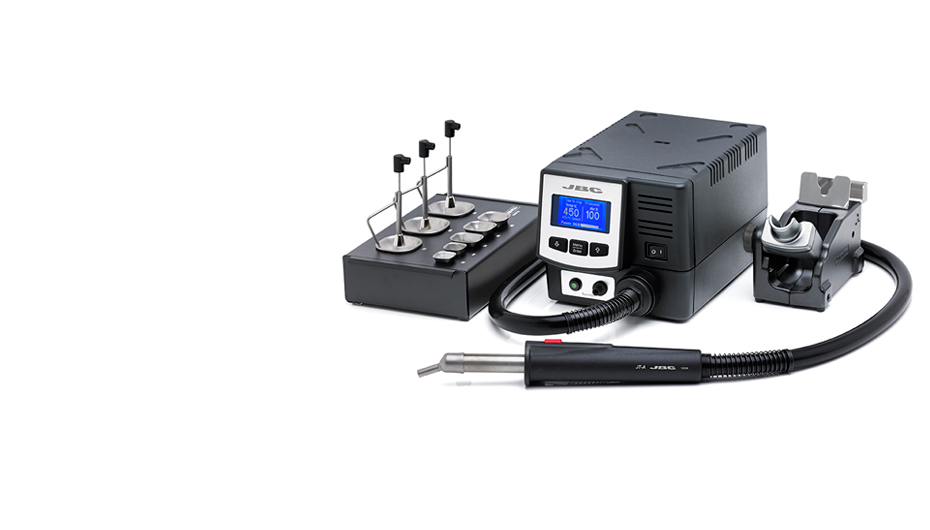

The JT is a high powered hot air station to repair all types of SMD quickly and safely , even the biggest QFPs and PLCCs.

The unit features two work modes -manual or profile- to manage efficiently the temperature and the hot air flow.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

The station works with the JT-TA heater and incorporates a USB connector (type B).

It comes with a complete extractor desk and a heater stand with the quick nozzle changer.
Net weight
0,000 kg (0.00lb)
Size
See individual modules
0.00 in
Voltage
230V
Input fuse
4A
Nominal power
700W
Temperature selection
Room Temperature / 150-450 ºC (300-840 ºF)
Operating temp. range
10-40 ºC (50-104 ºF)
ESD safe
Air flow range
6 - 45 SLPM
Vacuum
30% / 228 mmHg / 9 inHg
Rated current
3A
Package weight
6,70 kg (14.77lb)
Package dimensions
475x370x200 mm
1.85 x 1.46 x 7.87 in
