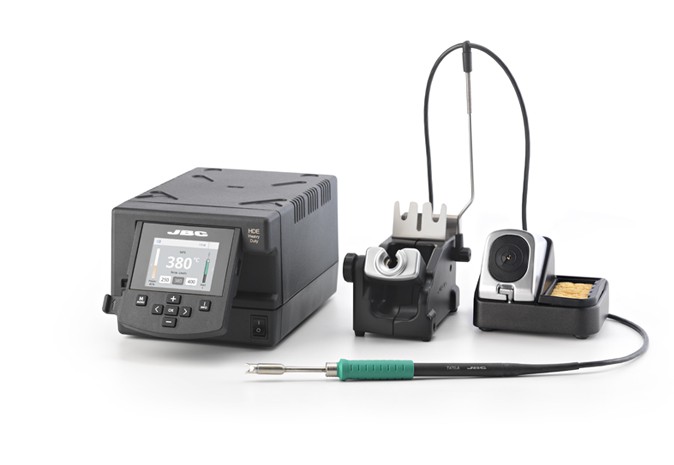

Heavy Duty station
230 V - Ref.
It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.
It features all the Excellence range benefits. The
easy-to-use menu offers innovative functions to help you monitor the work in real time such as graphics or partial counters.
This station works with the comfortable T470 handpiece and C470 cartridges.
No cartridge supplied with this station.
|Net Weight||6.100 kg (13.45 lb)|
|Dimensions||145 x 120 x 225 mm|
|(5.71 x 4.72 x 8.86 in)|
|Output peak power||250W|
|Temperature selection||90-500 ºC (190-932 ºF)|
|Idle temp. stability (still air)||±1.5 ºC (±3 ºF)|
|Tip to ground resistance||<2 ohms|
|Tip to ground voltage||<2 mV RMS|
|Ambient operating temp.||10-40 ºC (50-104 ºF)|
|Communication connectors||USB-A / USB-B / Peripherals|
|Robot connector||RJ12 for RS-232 protocol|
|Package weight||6.950 kg (15.32 lb)|
|Package dimensions||368 x 368 x 195 mm|
|(14.49 x 14.49 x 7.68 in)|
