HDE-1C
Heavy Duty station

DISCONTINUED

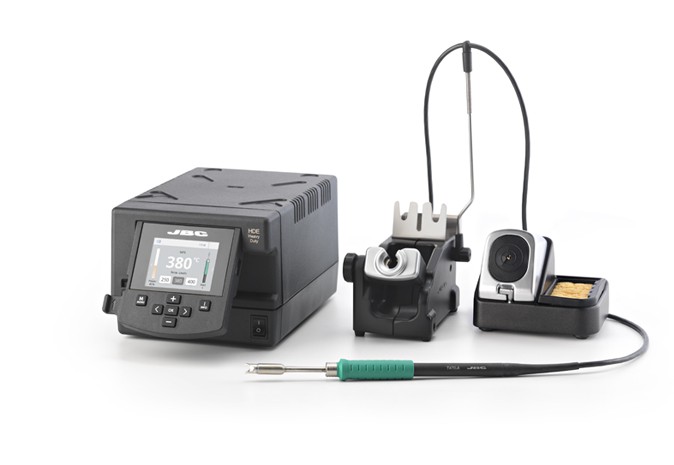

HDE-1C - Heavy Duty station
This is the ideal solution for high thermal demand or prolonged soldering applications such as the production of solar panels, multi-layered circuits and components of large dissipation surfaces.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.

It features all the Excellence range benefits. The easy-to-use menu offers innovative functions to help you monitor the work in real time such as graphics or partial counters.

This station works with the comfortable T470 handpiece and C470 cartridges.

No cartridge supplied with this station.
Net weight
4,17 kg (9.18lb)
Dimensions
145 x 120 x 225 mm
5.71 x 4.72 x 8.86 in
Voltage
120V
Input fuse
4A
Output peak power
250W
Temperature selection
90-500 ºC (190-932 ºF)
Idle temp. stability (still air)
±1.5 ºC (±3 ºF)
Tip to ground resistance
<2 ohms
Tip to ground voltage
<2 mV RMS
Ambient operating temp.
10-40 ºC (50-104 ºF)
Communication connectors
USB-A / USB-B / Peripherals
Robot connector
RJ12 for RS-232 protocol
ESD safe
Package weight
5,92 kg (13.05lb)
Package dimensions
368 x 368 x 195 mm
14.49 x 14.49 x 7.68 in
