DSS-9D
Micro Desoldering station
DSS-9D
Micro Desoldering station
DISCONTINUED
Product Support
×
Manuals:
DSS-D Manual
(1.88 Mb)
DI-D Manual
(1.13 Mb)
MS Electric Desoldering Pump Manual
(683 Kb)
Stands Manual
(1.96 Mb)
DS360-A Manual
(1.5 Mb)
CL8499 ESD Tip Cleaner Manual
(730 Kb)
Exploded View:
DSS-D Exploded View
(606 Kb)
DSS-D Exploded View
(1.93 Mb)
DSS-D Exploded View from series 194804
(1.23 Mb)
Software:
Program update version 8886522
Videos
×
How to replace the filters?
Don’t believe us...
TRY IT!
This is the best solution for
desoldering small and medium-sized insertion
components.
The
DI Control Unit
and the
MS Electric Suction Module
guarantee a quick & safe desoldering process.
It works with the
JBC Exclusive Heating System
and the intelligent
sleep & hibernation
features.
Using the
menu
you can personalize over 20 parameters to help manage the soldering process.
The
USB connector
allows to update software, create graphs and manage parameters from a PC.
This station works with the
DS360 Micro Desoldering Iron
and
C360 tips
.
REFERENCE
DSS-9D

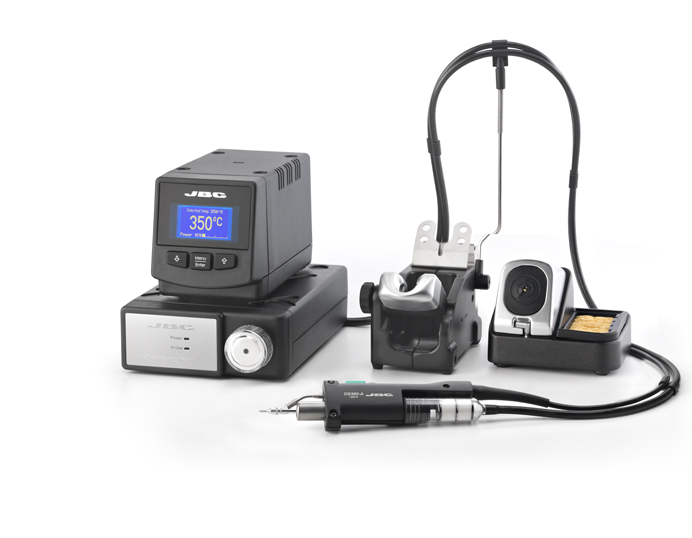

PRODUCT COMPOSITION
1
DIU 1-Tool Control Unit
1
MS-A Electric Desoldering Module
1
DS360 Micro Desoldering Iron
(C360004 already inserted)
1
DSS Stand for DS360 Micro Desoldering Iron
1
CLM Manual Tip Cleaner
SPECIFICATIONS
Net weight
5,82 kg (12.83lb)
Size
See individual modules
0.00 in
Voltage
100V
Input fuse
2.5A
Output peak power
130W
Temperature selection
90-450 ºC / 190-840 ºF
Tip to ground resistance
<2 ohms
Operating temp. range
10-40 ºC / 50-104 ºF
ESD safe
USB interface station-PC
Vacuum
75% / 570mmHg / 22.4inHg
Flow rate
9 SLPM
Package weight
6,69 kg (14.75lb)
Package dimensions
368 x 368 x 195 mm
14.49 x 14.49 x 7.68 in
Cartridge Range
Other Compatible Items
C360 Range
MS - Electric Desoldering Module for DIU & CDD
MV - Pneumatic Desoldering Module for DIU
DS360 - Micro Desoldering Iron
DR560 - Desoldering Iron
CONNECTABLES
Modular System
MS-A
Electric Desoldering Module for DIU & CDD
MV-A
Pneumatic Desoldering Module for DI
Compatible tools
DS360-A
Micro Desoldering Iron
DR560-A
Desoldering Iron
