Best solution for automation process with no programming knowledge needed

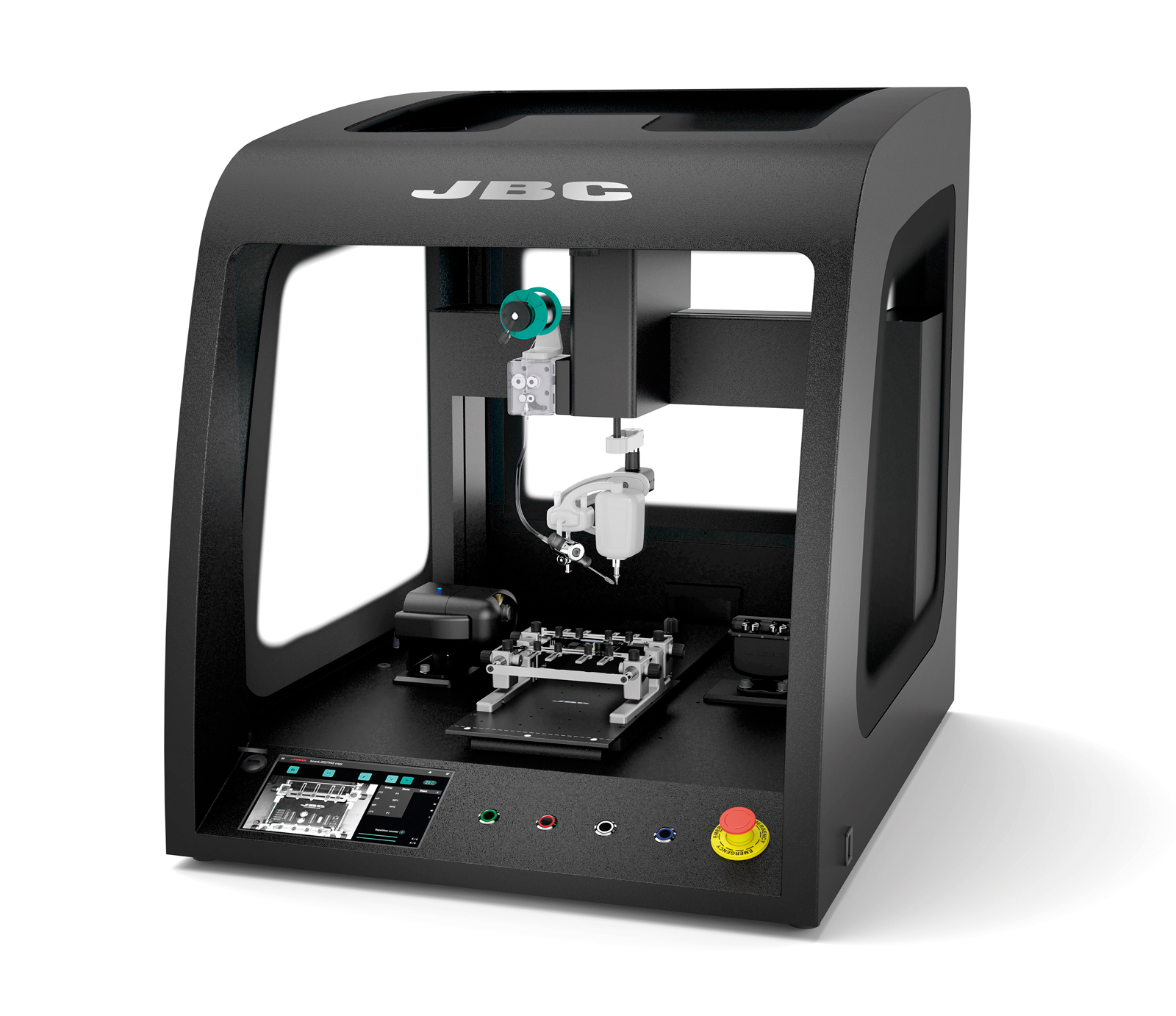

Desktop
Robot

For automation process

It is a complete system and it has everything necessary for an optimal and quality soldering for automated processes that require an increase in production.

Easy-to-use, thanks to the touch screen and the intuitive software provided by JBC technology, It allows anyone to operate it without prior training.

In addition, it includes a hand-held motion detector sensor for added security.

Artificial vision

Easy-to-use

Save time

Safety

Gerber file

How it is work?

The Desktop Robot features an artificial vision, it can work with the gerber files and detect with great accuracy the PCB position and pads to symplify the soldering process.

Turnkey
Solution

Customer can easily implemented the Desktop Robot into a current soldering production line.
This solution is a cost-effective way to standardize and increase your production.

It includes TRA Automatic Soldering Iron for Robot, SFR Solder Feeder for Robot, CSR Cartridge Stand for Robot and CLR Tip Cleaner for Robot.

tra

TRA
Automatic
Soldering Iron

Actuates by compressed air allowing fast and automatic cartridge exchange.

sfr

SFR
Solder
Feeder

Designed for automatic solder wire feeding and controlled by a PC/PLC.

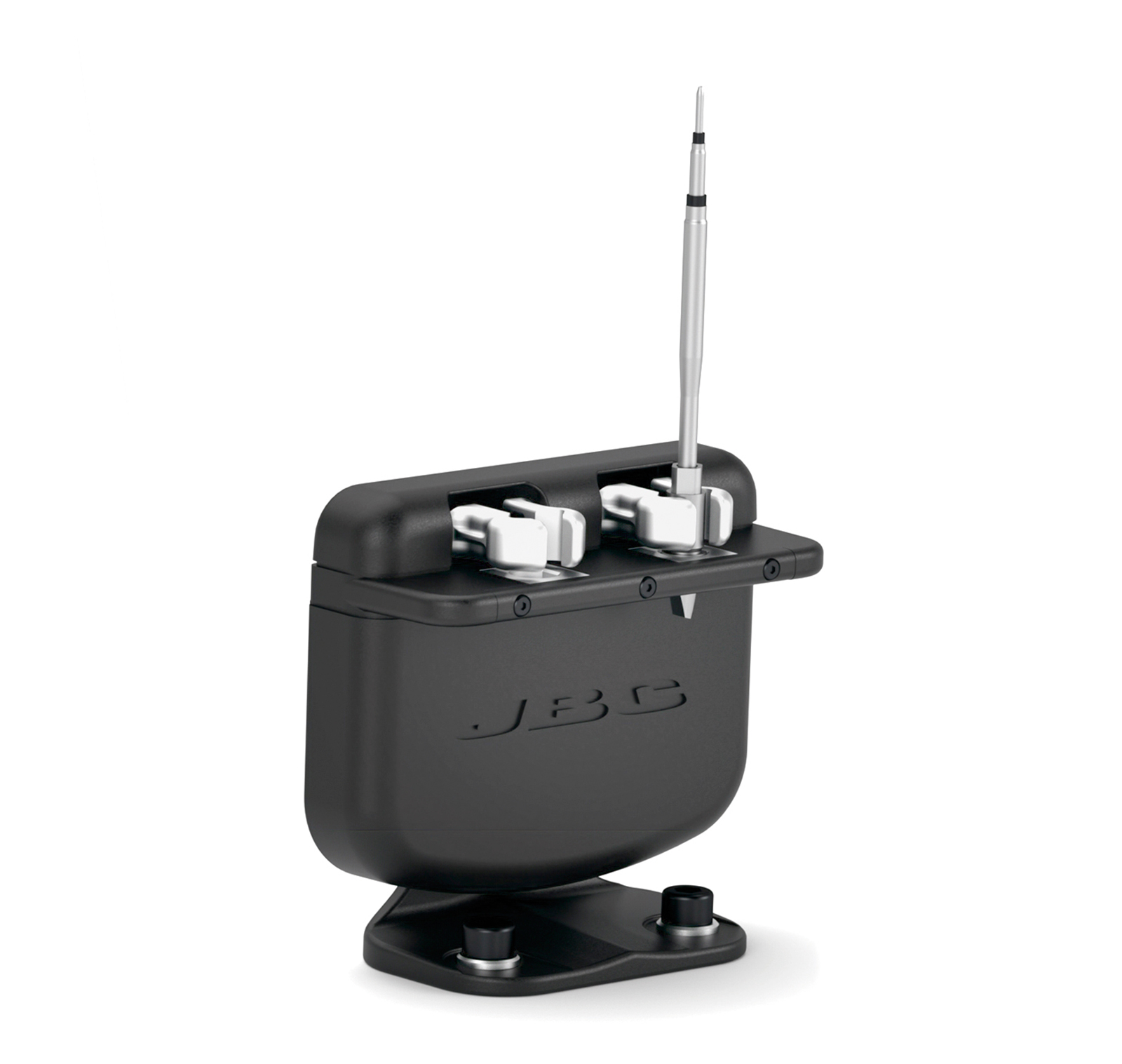

csr

CSR
Cartridge
Stand

It works with compressed air to automatically fix and release the cartridges.

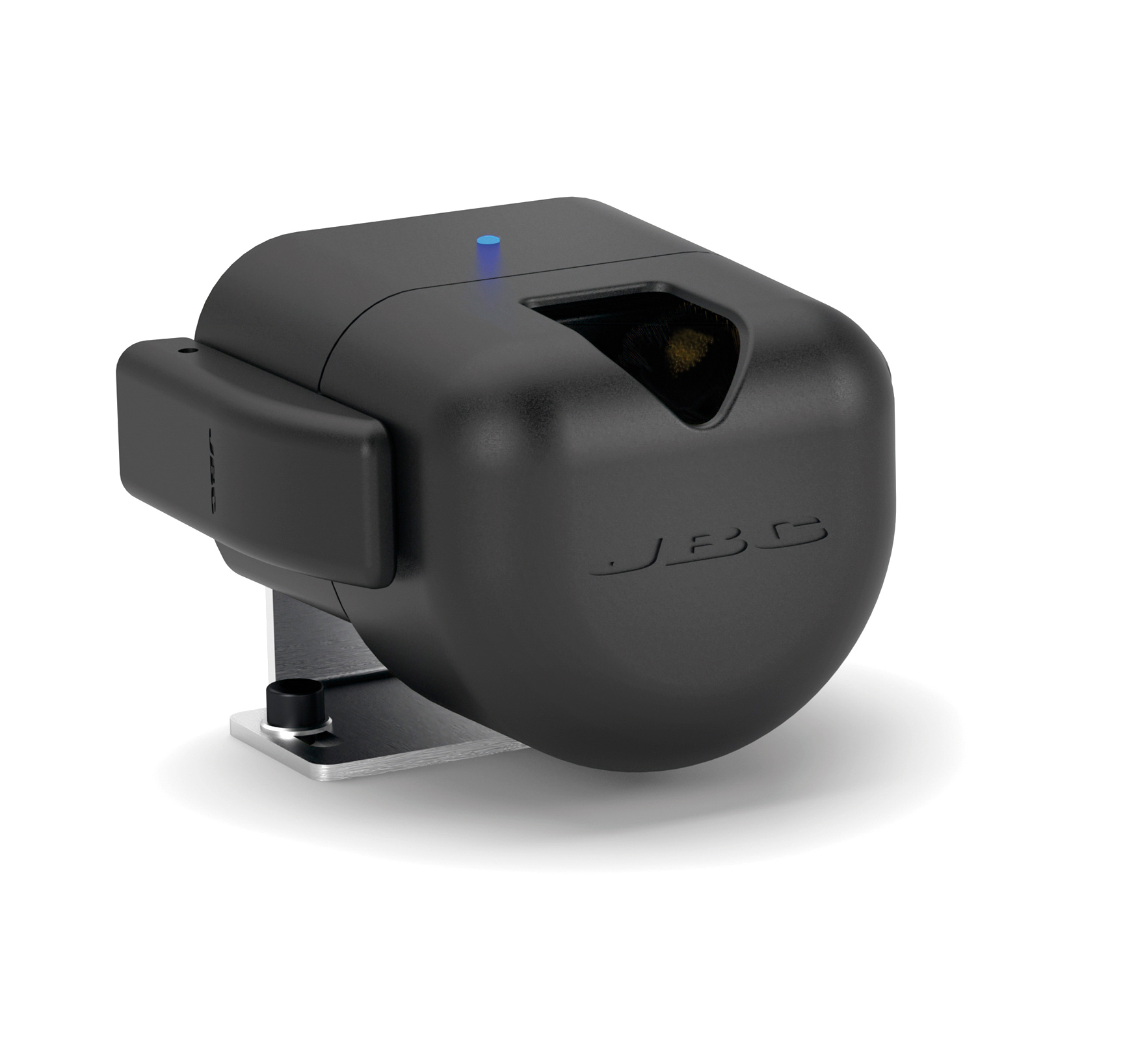

clr

CLR
Tip
Cleaner

It performs a through and gentle tip cleaning, increasing heat transfer to maximize soldering quality.

Cartridge Range

More than 46 different tip shapes.
Desktop Robot is fully compatible with R245 Cartridge Range and R470 Range Cartridge Range
