DDE-1B
2 Tools Control Unit

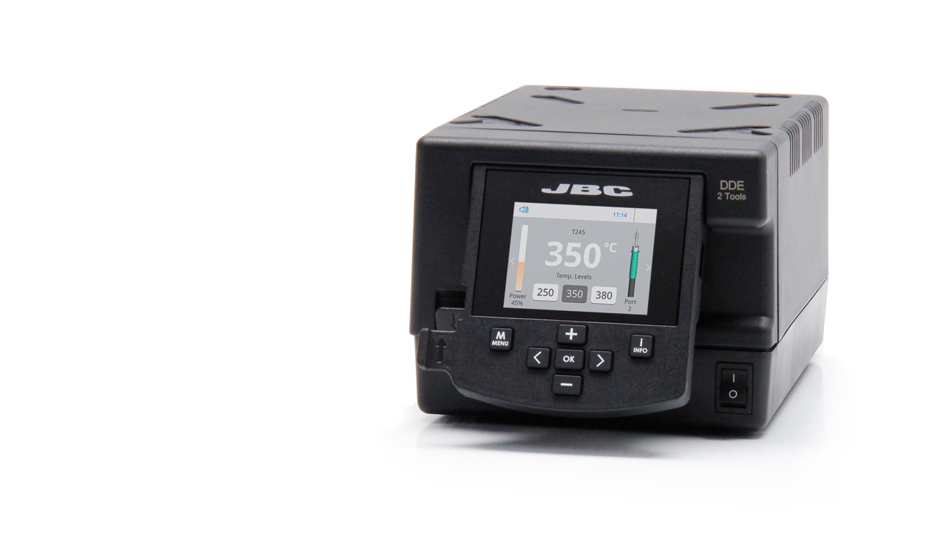

DDE-1B - 2 Tools Control Unit
This control unit manages up to 2 tools simultaneously. It offers full connectivity to any JBC soldering or desoldering tools.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.

It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.

The easy-to-use menu offers innovative functions to help you monitor the work in real time: graphics, partial counters or tool port monitoring.

For a basic working system, you need 1 stand, 1 tool and 1 cartridge.
Net Weight3,82 kg (8.41lb)
Dimensions148 x 120 x 232 mm
(5.83 x 4.72 x 9.13 in)
Voltage(AC)120V
Input fuse4A
Output peak power150W per tool
Temperature selection90-450 ºC (190-840 ºF)
Idle temp. stability (still air)±1.5 ºC (±3 ºF)
Tip to ground resistance<2 ohms
Tip to ground voltage<2 mV RMS
Ambient operating temp.10-40 ºC (50-104 ºF)
Communication connectorsUSB-A / USB-B / Peripherals
Robot connectorRJ12 for RS-232 protocol
ESD safe
Package weight4.269 kg (9.41 lb)
Package dimensions258 x 328 x 208 mm
(10.16 x 12.91 x 8.19 in)
Weight3.815 kg (8.41 lb)

Manuals:
DDE-B Manual(3.11 Mb)

Brochures:
Modular Line(622 Kb)

Exploded View:
Exploded View(183 Kb)
