CP-2E
Micro Tweezers Station

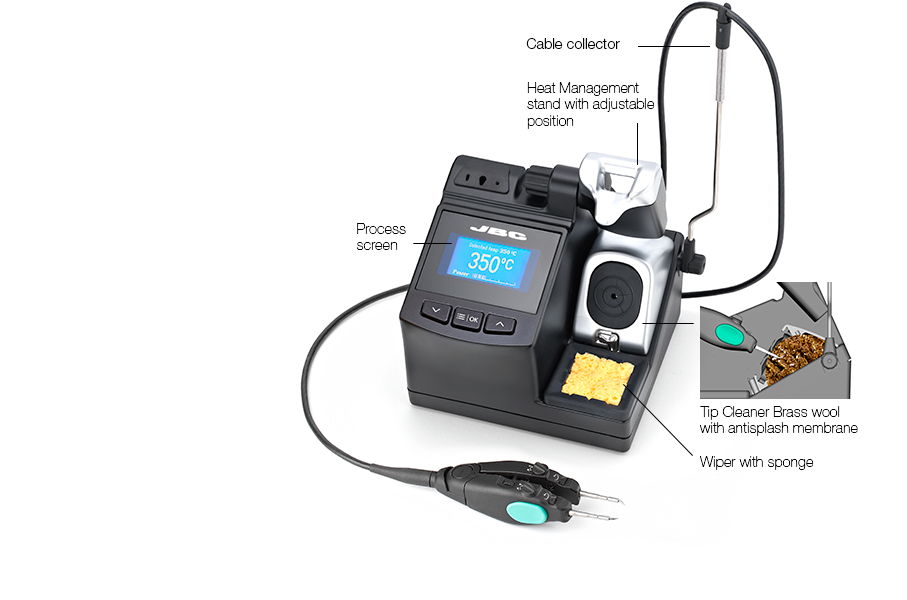

CP-2E - Micro Tweezers Station
The Station comes with the Adjustable Micro Tweezers PA120. This is the fastest way to remove SMD passive components and small/medium SOP from PCB assemblies.

The Tweezers are suitabel for C120 Cartridges.

The Station works with the JBC exclusive Heating System and the intelligent Sleep & Hibernation features.

Using the menu you can personalize over 20 parametes.

It features a USB connector to update software, create graphs and manage parameters from a PC.

A complete Cleaning System with antisplash membrane and wiper with sponge is integrated.

Net Weight2,70 kg (5.96lb)
Size150x175x145 mm
(5.91 x 6.89 x 5.71 in)
Voltage(AC)230V
Input Fuse1A
Output Peak Power80W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB station-PC
Package weight3,14 kg (6.92lb)
Package dimensions234 x 234 x 258 mm
(9.21 x 9.21 x 10.16 in)
