DISCONTINUED

230 V - Micro Tweezers station
Ref.
CP-2C

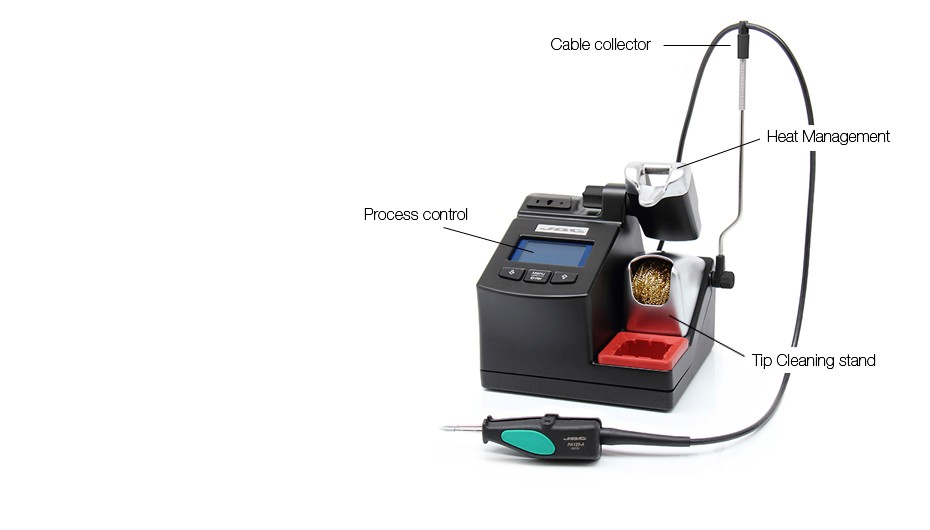

CP-2C - Micro Tweezers station
The CP is a soldering and desoldering station for small and medium SMD components.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It incorporates a USB connector (type B) to update station software and create graphs.

CP works with the lightest and ergonomic PA120 microtweezers and the C120 cartridges.
Product Composition
Consumables:
Control Unit:
CP with tip cleaning system
Cartridges:
Specifications
Net Weight2.7 kg (6 lb)
Size150x175x145 mm
Voltage(AC)230V
Input Fuse1A
Output Peak Power80W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB interface station-PC
Package weight3.1 kg (6.8 lb)
Package dimensions235x235x260 mm
Documentation

Manuals:
CP Manual(2.5 Mb)
PA120-A Manual(1.18 Mb)

Brochures:
Compact line(1.03 Mb)

Exploded View:
Exploded View(617 Kb)
Consumables
Connectable tools
