CD-9BE
100 V - Soldering station for general purposes

CD-9BE - Soldering station for general purposes

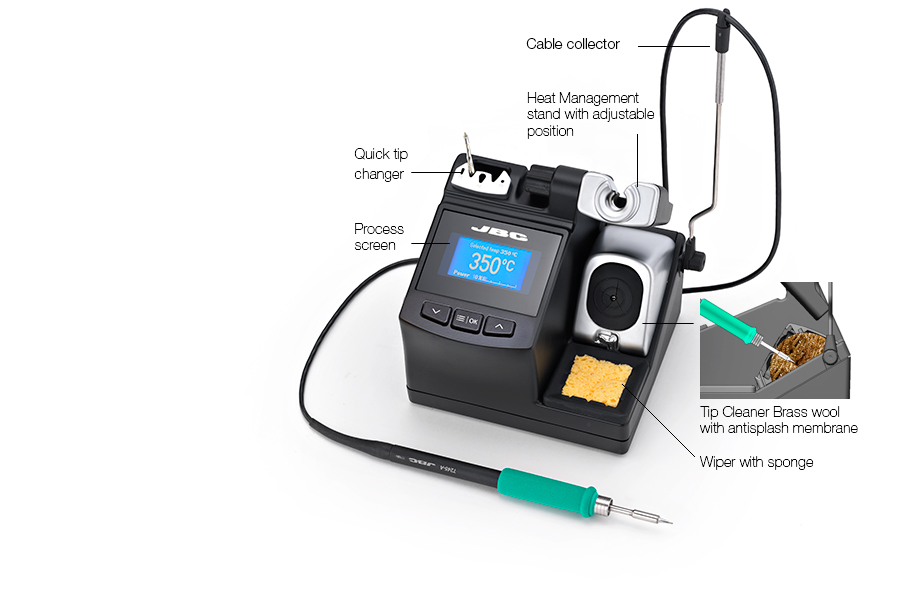

The CD-B is a soldering station with the JBC Advanced system for general electronic applications.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It features a USB connector to update software, create graphs and manage parameters from a PC.

Complete cleaning system with an antisplash membrane to keep the work area clean.
Use the integrated wiper to remove excess solder from the tip.

CD-B works with the lightest and ergonomic T245 Handpiece and the C245 cartridges.
You can also connect any T210 with C210 Cartridge range.
Compact Line
Product Composition
Consumables:
Control Unit:
CD with tip cleaning system
Cartridges:
Specifications
Weight2,67 kg (5.88lb)
Size150x175x145 mm
(5.91 x 6.89 x 5.71 in)
Voltage(AC)100V
Input Fuse2A
Output Peak Power130W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB station-PC
Package weight3,15 kg (6.94lb)
Package dimensions234 x 234 x 258 mm
(9.21 x 9.21 x 10.16 in)
Documentation

VideoTutorial:

Manuals:
CD-BE Manual(4.73 Mb)

Brochures:
Compact Line(371 Kb)

Exploded View:
