Precision Hot Air station without extractor desk

TESE-1QA - Precision Hot Air station without extractor desk

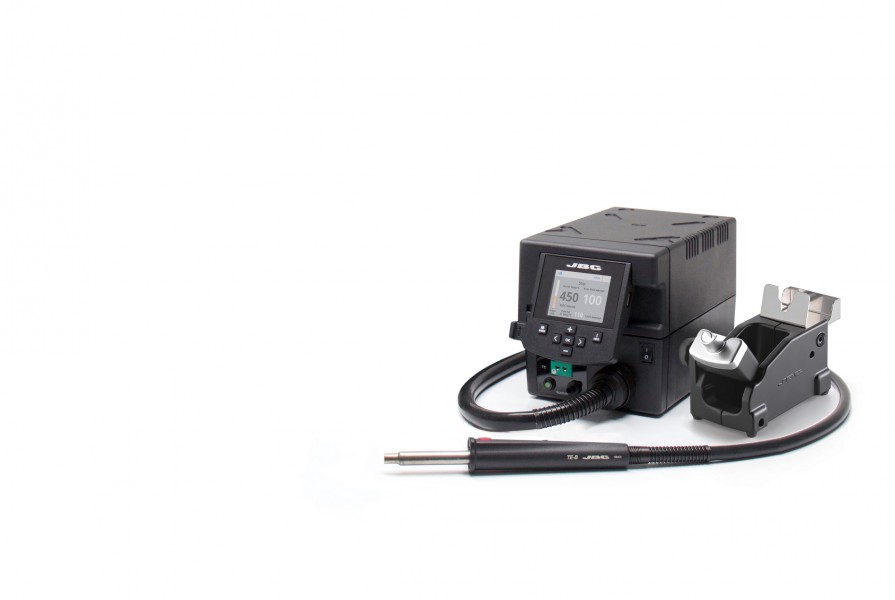

TESE-Q is a precision hot air station for repairing small and medium SMDs quickly and safely.

Profiles mode
It features along with the manual mode a powerful functionality of profiles to perform rework tasks with the maximum precision.You can control temperature values and air flow rate by creating up to 25 profiles.

Control thermocouple
You can read the temperature at a specific point on the PCB with the control thermocouple
PH218. It helps protect the components or a specific area on the PCB.

Auto-stop function
The auto-stop function is a safety measure which ensures the heat is automatically cut off when the tool is in the TE-SD stand.

Available languages: English, Spanish, German, French, Italian, Portuguese, Japanese, Chinese, Russian and Korean.
Net Weight3,44 kg (7.58lb)
Dimensions (Control Unit)148 x 184 x 140 mm
(5.83 x 7.24 x 5.51 in)
Voltage(AC)120V / 100V
Input Fuse8A (120V and 100V)
Nominal power300W
Temperature selectionRoom Temperature / 150-450 ºC (300-840 ºF)
Ambient operating temp.10-40 ºC (50-104 ºF)
Air Flow Range2-17 SLPM
Vacuum30% / 228 mmHg / 9 inHg
Rated Current7A (100V - 120V)
ESD Safe
Package weight4,41 kg (9.71lb)
Package dimensions474 x 368 x 195 mm
(18.66 x 14.49 x 7.68 in)

TESE-QA Manual(2.21 Mb)

Rework Brochure(5.88 Mb)

Exploded View:
Connectable tools
