TE-9B
Precision Hot Air station

DISCONTINUED

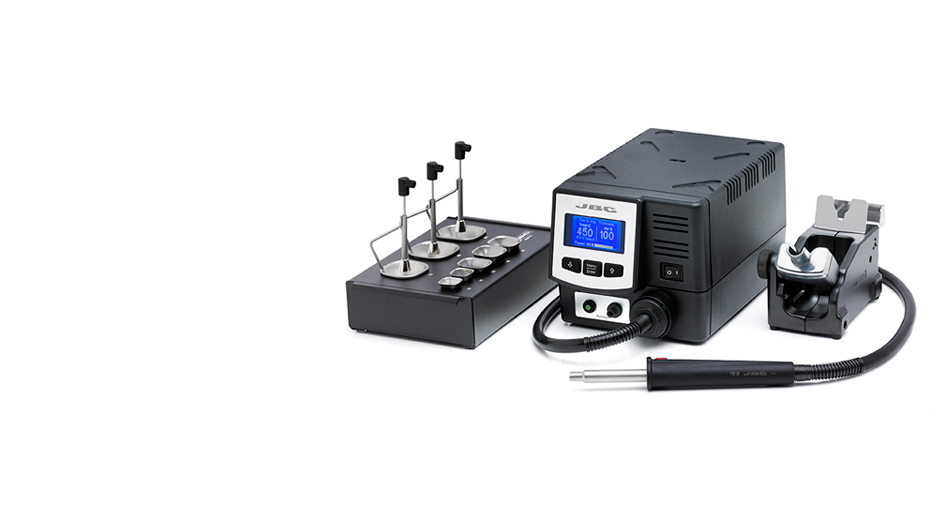

TE is a precision hot air station for repairing small and medium SMD quickly and safely.

The unit features two work modes -manual and profile- to manage efficiently the temperature and the hot air flow.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

The station works with the TE-TB heater and incorporates a USB connector (type B).

It comes with a complete extractor desk and a heater stand with a quick nozzle changer.
If you require any further information, feel free to contact us
Net weight
5.4 kg (11.9 lb)
Size
See individual modules
0.00 in
Voltage
100V
Input fuse
8A
Nominal power
300W
Temperature selection
Room Temperature / 150-450 ºC (300-840 ºF)
Operating temp. range
10-40 ºC (50-104 ºF)
Idle temp. stability
+/-20 ºC / +/-36 ºF
ESD safe
Air flow range
5-20 SLPM
Vacuum
30% / 228 mmHg / 9 inHg
Rated current
7A
Package weight
6.500 kg (14.33 lb)
Package dimensions
475x370x200 mm
1.85 x 1.46 x 7.87 in
TE-9B - Precision Hot Air station
