Precision Hot Air station without extractor desk

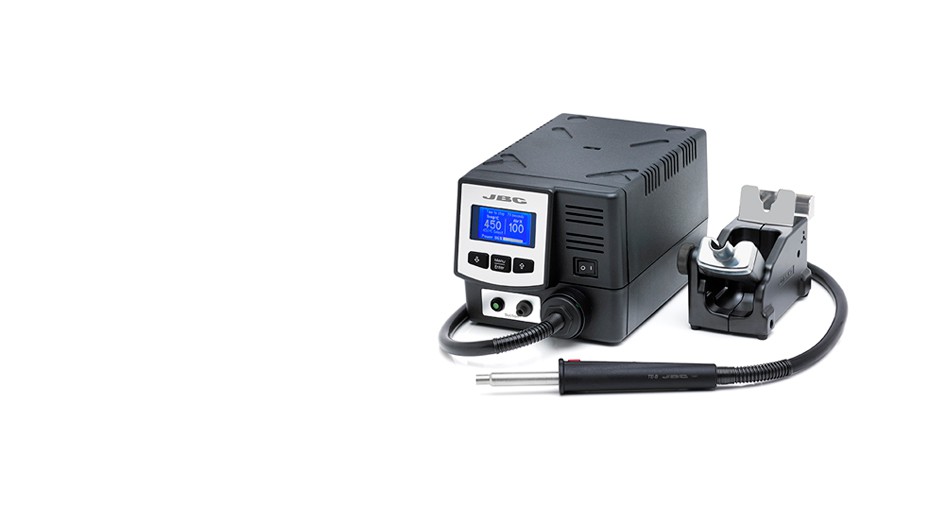

TE-2QC - Precision Hot Air station without extractor desk
TE is a precision hot air station for repairing small and medium SMD quickly and safely.

The unit features two work modes -manual or program- to manage efficiently the temperature and the hot air flow.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

The station works with the TE-TB heater
and incorporates a USB connector (type B).

It comes with the heater stand with a quick nozzle changer.
Net Weight5.200 kg (11.46 lb)
Dimensions (Control Unit)148 x 184 x 140 mm
Input Fuse4A
Nominal power300W
Temperature selectionRoom Temperature / 150-450 ºC (300-840 ºF)
Ambient operating temp.10-40 ºC (50-104 ºF)
Air Flow Range3-17 SLPM
Vacuum30% / 228 mmHg / 9 inHg
Rated Current3A (230V), 6A (120V), 7A (100V)
ESD Safe
Package weight5.200 kg (11.46 lb)
Package dimensions475x370x200 mm
