TE-1D - Precision Hot Air station
TE is a precision hot air station for repairing small and medium SMD quickly and safely.

The unit features two work modes -manual or program- to manage efficiently the temperature and the hot air flow.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

The station works with the TE-TB heater and incorporates a USB connector (type B).

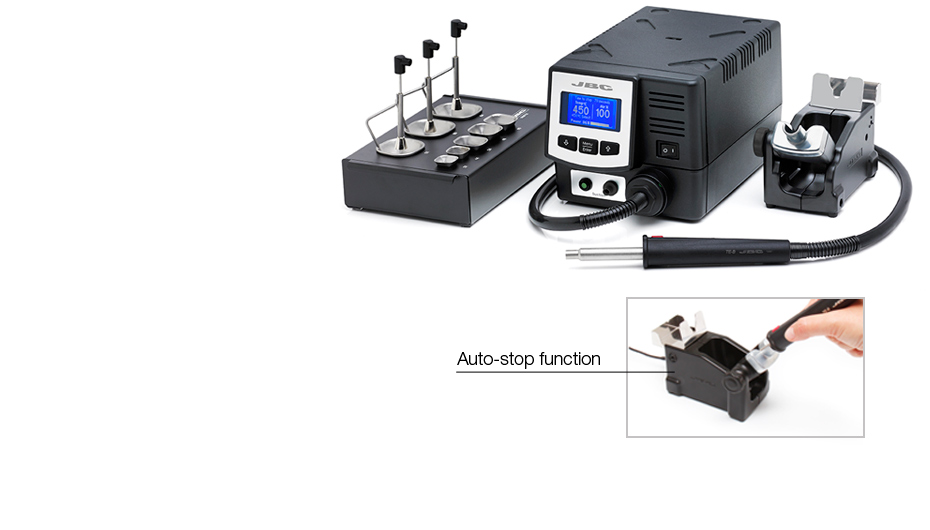

It comes with a complete extractor desk and the TE-SD Stand that guarantees the Auto-stop function.
Net weight
5,08 kg (11.21lb)
Dimensions (Control Unit)
148 x 184 x 140 mm
5.83 x 7.24 x 5.51 in
Voltage
120V 50/60Hz
Input fuse
T 8A
Nominal power
300W
Rated current
6A
Temperature selection
150-450 ºC (300-840 ºF)
Cool mode
Room Temperature
Operating temp. range
10-40ºC (50-104 ºF)
Air flow range
3-17 SLPM
Vacuum
30% / 228 mmHg / 9 inHg
USB-B connector station-PC
P-005 Pedal Connector
ESD safe
Package weight
6,19 kg (13.64lb)
Package dimensions
474 x 368 x 195 mm
18.66 x 14.49 x 7.68 in
