RMVE-9A
Complete Rework station with Pneumatic Pump
RMVE-9A
Complete Rework station with Pneumatic Pump
DISCONTINUED
Product Support
×
Manuals:
RMVE-A Manual
(8.22 Mb)
Exploded View:
Exploded View
(492 Kb)
Software:
Program update version 9996994
Videos
×
Don’t believe us...
TRY IT!

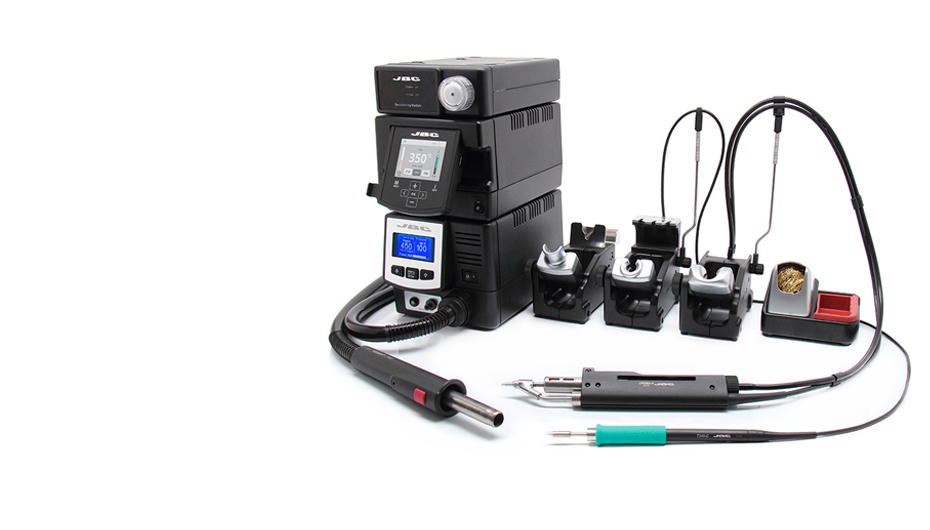

The
quickest and safest solution
for soldering and rework, also using Hot Air.
It consists of stackable modules and all the
necessary accessories
to make your job easier.
It works with the
JBC exclusive heating system
and the intelligent
sleep & hibernation
modes.
It features all the
Excellence range
benefits such as station customization, full control of soldering processes and remote work management.
The RMVE works simultaneously with the
DR560 Desoldering Iron
, the
T245 Handle
and the
JT-TA Heater Hose Set
and is compatible with most JBC tools.
Required compressed air at the operator´s bench.
REFERENCE
RMVE-9A
PRODUCT COMPOSITION
1
JTE-B Hot Air Unit
1
DDE-9A 2 Tools Control Unit
1
MVE Pneumatic Desoldering Module for DDU & DMU
1
JTT Heater Hose Set
1
T245-C Soft Thermal Insulator Handle
1
DR560 Desoldering Iron
(C560003 already inserted)
1
AD-SD Stand for T210 & T245
1
DR-SD Stand for DR560
1
JT-SB Stand for JT heater
1
C245903 Conical Cartridge Ø 1
1
C245906 Chisel Cartridge 1.2 x 0.7
1
C560004 Through-hole Desoldering Tip Ø 1.3
1
C560005 Through-hole Desoldering Tip Ø 1.5
1
C560013 Pad Cleaning Tip Ø 1
1
CL9885 Tip Cleaner
1
JN2015 Bent Nozzle Ø4 - 18º for JTT
1
JN2012 Bent Nozzle Ø6 - 18º for JTT
1
JN2020 Straight Nozzle Ø8 for JTT
1
T260 Pick & Place Handle
1
EXTRACTOR DESK Extractor Desk
SPECIFICATIONS
Weight and Dimensions
See individual modules
Voltage
120 V / 230 V / 100 V
Output peak power
DDE
:150 W per tool
Nominal power
JT
: 700 W
Temperature selection
JT
:150-450ºC (300-840ºF) or Cool mode: Temp Off
DDE
: 90-450 ºC (190-840 ºF)
Idle temp. stability (still air)
DDE
: ± 1.5 ºC (± 3 ºF)
Operating temp. range
10-40 ºC (50-104 ºF)
Air flow regulation
JT
:10-50 SLPM / MVE: 15 SLPM
Air pressure
4-6 Bar
Vacuum
JT
: 30% / 228 mmHg / 9 inHg
Vacuum (at 6 bar)
MVE
: 90% / 680 mmHg / 26.8inHg
Tip to ground resistance
DDE
: <2 ohms
Tip to ground voltage
DDE
: <2 mV RMS
Communication connectors
JT
: USB-B
DDE
: USB-A / USB-B / Peripherals
Robot connector
DDE
: RJ12 for RS-232 protocol
Pedal conection
JT
and
MVE
: P-005 Pedal
ESD safe
Package weight
16.600 kg (36.60 lb)
Package dimensions
480 x 375 x 390 mm
18.90 x 14.76 x 15.35 in
Cartridge Range
Other Compatible Items
C210 Range
C245 Range
C560 Range
JTT - Heater Hose Set
T210 - Precision Handle
T210P - Blue-Grip Precision Handle
T245 - General Purpose Handle
T245P - Blue-Grip Handle
DR560 - Desoldering Iron
EXTRACTORS - Extractors for desoldering jobs using Hot Air Stations
PROTECTORS - Protectors for desoldering jobs using Hot Air Stations
JN NOZZLES - for JTT Heater Hose Set
T260 - Pick & Place Handle
CONNECTABLES
Compatible tools
JT-T1A
100V/120V - Heater Hose Set
T210-A
Precision Handle
T210-PA
Blue Grip Precision Handle
T245-A
General Purpose Handle
T245-PA
Blue Grip General Purpose Handle
DR560-A
Desoldering Iron
Accessories
EXTRACTORS
Extractors for desoldering jobs using Hot Air Stations
PROTECTORS
Protectors for desoldering jobs using Hot Air Stations
JTNOZZLES
for JTT Heater Hose Set
T260-A
Pick & Place
