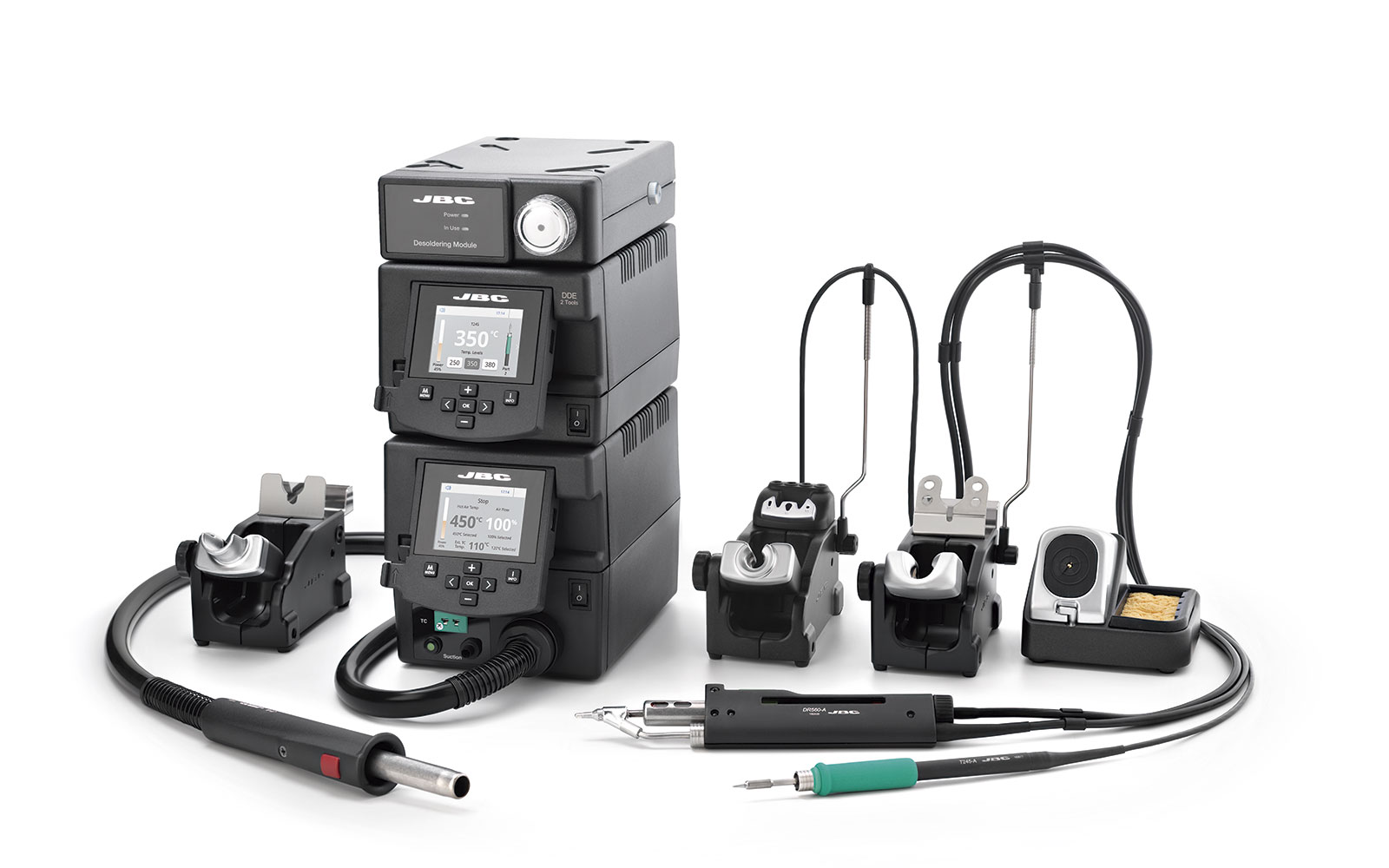

RMVE-1DComplete Rework station with Pneumatic Pump

RMVE-1D
Complete Rework station with Pneumatic Pump

DISCONTINUED
The quickest and safest solution for soldering and rework, also using Hot Air.

It consists of stackable modules and all the necessary accessories to make your job easier.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.

It features all the Excellence range benefits and the JT-SD Stand that guarantees the Auto-stop function when the heater is at rest.

The RMSE works simultaneously with the
DR560 Desoldering Iron, the T245 Handle and the JT-TA Heater Hose Set and is compatible with most JBC tools.

Clean and dry compressed air is required.
Net weight
14,04 kg (30.95lb)
Voltage
120 V / 230 V / 100 V
Input fuse
DDE:4A/ 2A/ 5A JT:8A/ 4A/ 8A
Output peak power
DDE: 150 W per tool
Nominal power
JT: 700 W
Temperature selection
JT: 150-450ºC (300-840ºF) or Cool mode: Temp Off
DDE: 90-450 ºC (190-840 ºF)
Idle temp. stability (still air)
DDE: ± 1.5 ºC (± 3 ºF)
Operating temp. range
10-40 ºC (50-104 ºF)
Air flow regulation
JT: 10-50 SLPM
Flow rate
MSE: 9 SLPM
Vacuum
JT: 30% / 228 mmHg / 9 inHg
MSE:75%/570 mmHg/22.4 inHg
Rated current
JT: 6A/ 3A / 7A
Tip-to-ground resistance
DDE: <2 ohms
Tip-to-ground voltage
DDE: <2 mV RMS
Communication connectors
JT: USB-B
DDE:USB-A/USB-B/Peripherals
Robot connector
DDE: RJ12 for RS-232 protocol
Pedal Connector
JT and MSE: P-005 Pedal
ESD safe
Package weight
15,86 kg (34.97lb)
Package dimensions
480 x 370 x 380 mm
18.90 x 14.57 x 14.96 in
14.040 kg (30.95 lb)
