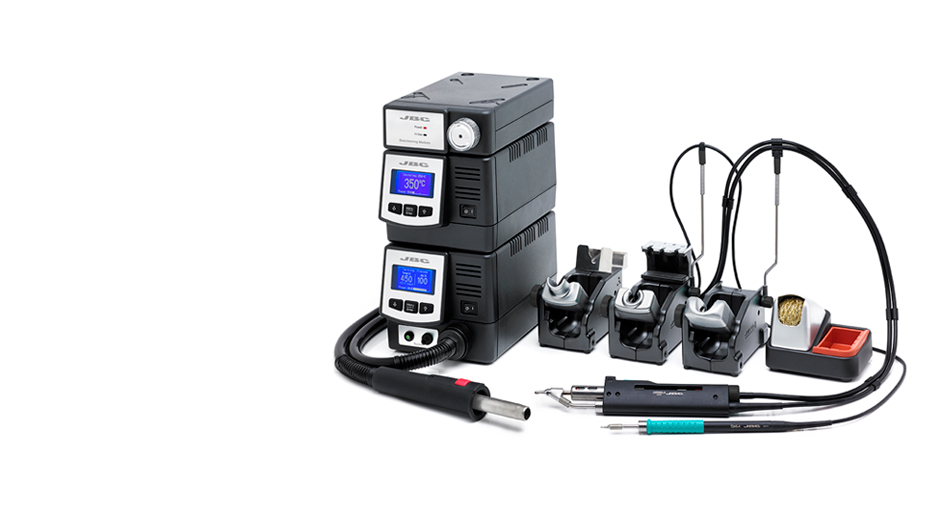

RMST-2BComplete Rework station with Electric Pump

Complete Rework station with Electric Pump

RMST station is a complete solution to repair and rework quick and safe electronic circuits.

It is composed by stackable modules and all the necessary accessories to make your job easier.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

Although other JBC tools suit the units, the RMST
works simultaneously with the DR560,
the T245 and the JT/TE tools.
Net Weight14.9 kg (32.8 lb)
SizeSee individual modules
Output Peak Power150W / 23.5V (DD), 1000W (JT)
Temperature selection (DD)90-450 ºC / 190-840 ºF
Idle Temp. Stability (DD)±1.5 ºC / ±3 ºF
Temperature selection (JT)Tamb - 450º C / Tamb - 850 ºF
Idle Temp. Stability (JT)±20 ºC / ±36 ºF
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
Air Flow Range (JT)6 - 45 SLPM
Vacuum (MS)75% / 570mmHg / 22.4inHg
Flow rate (MS)9 SLPM
Package weight16.6 kg (36.5 lb)
Package dimensions480x375x390 mm
