    • RMST-1BComplete Rework station with Electric Pump

    RMST-1B
    Complete Rework station with Electric Pump

    DISCONTINUED

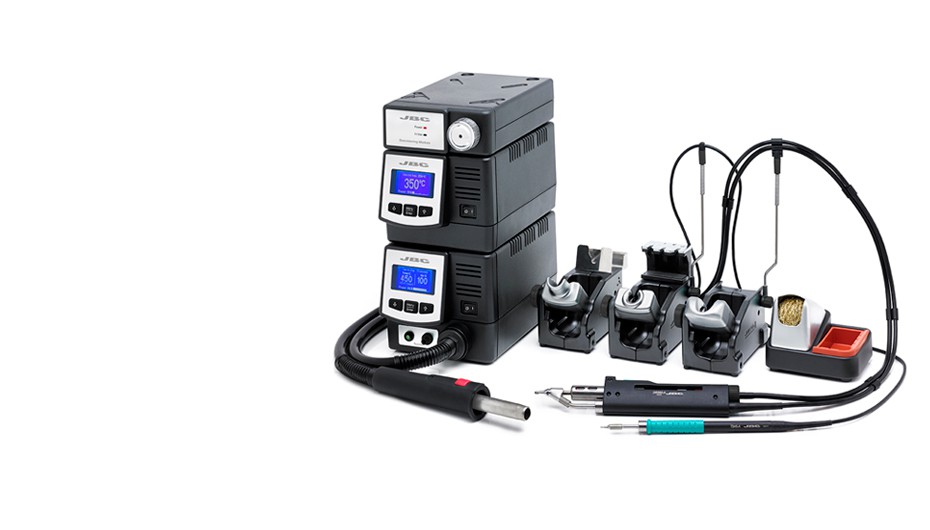

    RMST-1B - Complete Rework station with Electric Pump
    RMST station is a complete solution to repair and rework quick and safe electronic circuits.

    It is composed by stackable modules and all the necessary accessories to make your job easier.

    It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

    Using the menu you can personalize over 20 parameters to help manage the soldering process.

    Although other JBC tools suit the units, the RMST
    works simultaneously with the DR560,
    the T245 and the JT/TE tools.
    Don’t believe us...
    TRY IT!
    REFERENCE
    RMST-1B
    PRODUCT COMPOSITION
    1
    JTE-B Hot Air Unit
    1
    MS-A Electric Desoldering Module
    1
    EXTRACTOR DESK Extractor Desk
    SPECIFICATIONS
    Net Weight14.9 kg (32.8 lb)
    SizeSee individual modules
    Voltage(AC)120V
    Output Peak Power150W / 23.5V (DD), 1000W (JT)
    Temperature selection (DD)90-450 ºC / 190-840 ºF
    Idle Temp. Stability (DD)±1.5 ºC / ±3 ºF
    Temperature selection (JT)Tamb - 450º C / Tamb - 850 ºF
    Idle Temp. Stability (JT)±20 ºC / ±36 ºF
    Ambient operating temp.10-40 ºC / 50-104 ºF
    ESD Safe
    Air Flow Range (JT)6 - 45 SLPM
    Vacuum (MS)75% / 570mmHg / 22.4inHg
    Flow rate (MS)9 SLPM
    Package weight16.6 kg (36.5 lb)
    Package dimensions480x375x390 mm
