RMSE-9AComplete Rework station with Electric Pump

RMSE-9A
Complete Rework station with Electric Pump

DISCONTINUED

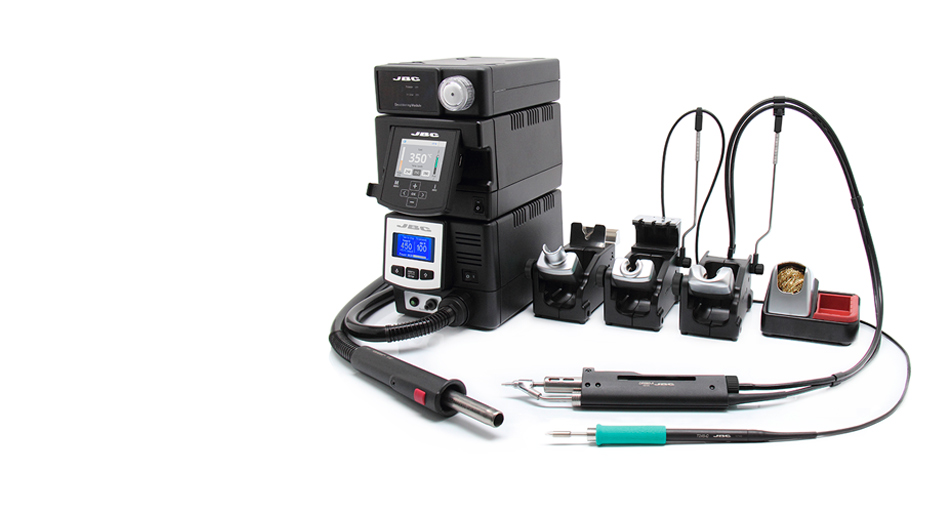

RMSE-9A - Complete Rework station with Electric Pump
The quickest and safest solution for soldering and rework, also using Hot Air.

It consists of stackable modules and all the necessary accessories to make your job easier.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.

It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.

The RMSE works simultaneously with the DR560 Desoldering Iron, the T245 Handle and the JT-TA Heater Hose Set and is compatible with most JBC tools.

Weight and dimensions
See individual modules
Voltage
120 V / 230 V / 100 V
Output peak power
DDE: 150 W per tool
Nominal power
JT: 700 W
Temperature selection
JT: 150-450ºC (300-840ºF) or Cool mode: Temp Off
DDE: 90-450 ºC (190-840 ºF)
Idle temp. stability (still air)
DDE: ± 1.5 ºC (± 3 ºF)
Operating temp. range
10-40 ºC (50-104 ºF)
Air flow regulation
JT: 10-50 SLPM / MSE: 9 SLPM
Vacuum
JT: 30% / 228 mmHg / 9 inHg
MSE: 75% / 570 mmHg / 22.4 inHg
Tip-to-ground resistance
DDE: <2 ohms
Tip-to-ground voltage
DDE: <2 mV RMS
Communication connectors
JT: USB-B
DDE: USB-A / USB-B / Peripherals
Robot connector
DDE: RJ12 for RS-232 protocol
Pedal connector
JT and MSE: P-005 Pedal
ESD safe
Package weight
16.600 kg (36.60 lb)
Package dimensions
480 x 375 x 390 mm
18.90 x 14.76 x 15.35 in
