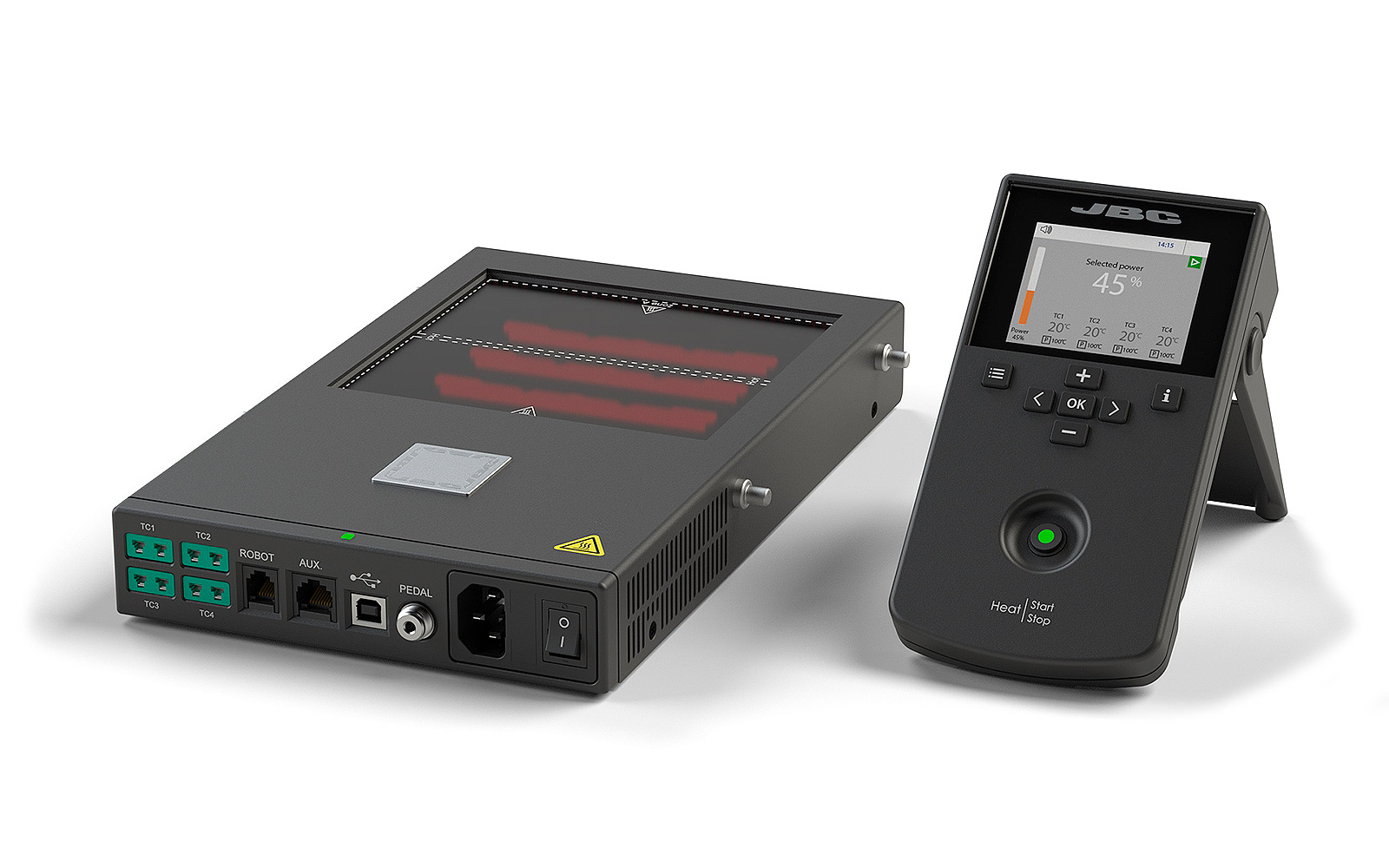

PHSE-1KA
IR Preheater Set

DISCONTINUED
Complete system for preheating small / medium PCBs and ideal for repetitive soldering jobs.

The set comes with a close loop thermocouple controlled Infrared Preheater Unit and with a PCB Support.

PHSE IR Preheater is used as a secondary heat source to reduce the amount of heat supplied by the main soldering tool, reducing thermal shock to components and PCBs.

PHS-SA IR Preheater Support is perfectly adapted to any type of PCBs by means of its many adjustable components and its 3 adjustable clearance positions 28, 50 or 70 mm / 1.1, 2 or 2.8 in.
Net weight
4,78 kg (10.54lb)
Dimensions (Heater Unit)
195 x 288 x 41 mm /
7.7 x 11.3 x 1.6 in
Voltage
Ref. PHS-1KC: 120 V
Ref. PHS-1KC: 230 V
Maximum power
500W
Heating area
65 x 135 mm / 2.6 x 5.3 in - 1 zone
130 x 135 mm / 5.1 x 5.3 in - 2 zones
Temperature range
50 to 250ºC / 120 to 482ºF
Temperature measurement
Thermocouple type K
Profiles
3 profiles ( 2, 3 or 4 steps)
User temperature profiles
20 (up to 6 steps for each)
Maximum work time
600 min. or indefinite
Fuse
8 A T (100V & 120V), 4 A T (230V)
Dimensions and weight
Package
368 x 368 x 195 mm / 5.82 kg.
14.49 x 14.49 x 7.68 in / 12.84 lb.
