DISCONTINUED

PHS-KB
IR Preheater Set

PHS-KB - IR Preheater Set

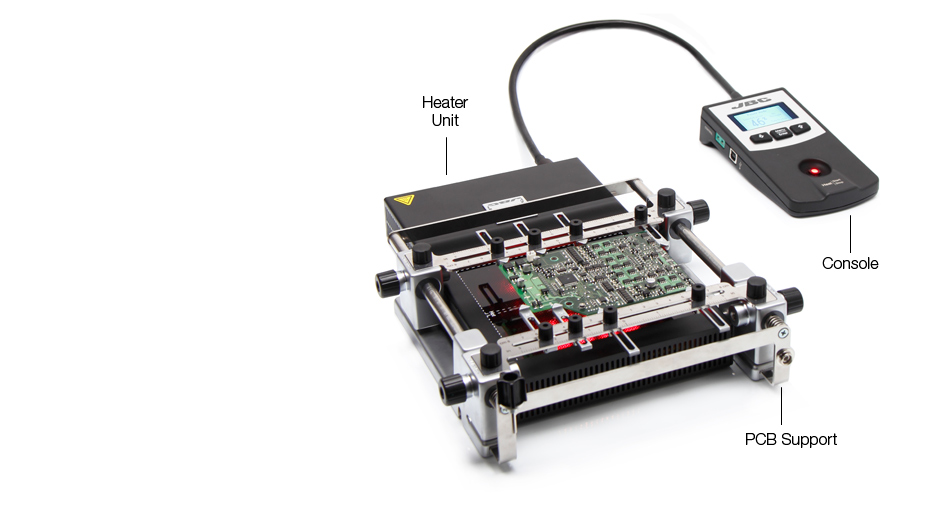

Complete system for preheating multilayer PCBs and ideal for repetitive soldering jobs.

It comes with a close loop thermocouple controlled Infrared Preheater Unit and with a PCB Support.

The Infrared Preheater PHS is used as a secondary heat source to reduce the amount of energy supplied by the main soldering tool, reducing thermal shock to components and PCBs.

The PCB Support PHS-S is perfectly adapted to any type of PCBs by means of its many adjustable parts and its 3 adjustable height positions.
Net weight
4,91 kg (10.83lb)
Dimensions (Heater Unit)
195 x 288 x 41 mm
Voltage
120V / 230V / 100V
Maximum power
500W
Heating area
65 x 135 mm (1 zone)
130 x 135 mm (2 zones)
Temperature range
50 to 250ºC (120 to 482ºF)
Temperature measurement
Thermocouple type K
JBC-Set temperat. profiles
3 profiles ( 2, 3 or 4 steps)
User temperature profiles
20 (up to 6 steps for each)
Maximum work time
600 min. or indefinite
Fuse
8 A T (100V & 120V), 4 A T (230V)
Package weight
5,96 kg (13.13lb)
Package dimensions
368 x 368 x 195 mm
14.49 x 14.49 x 7.68 in
