IR Preheater Set
230 V -

PHS-2KB - IR Preheater Set
This is a complete system for preheating multilayer PCBs by applying infrared.

It is ideal for repetitive jobs since the system
is able to run a specific temperature profile
without the need of a thermocouple.

JBC offers you 3 predefined temperature
profiles and 10 more to personalize.

Using the console you can select the mode of operation: by power or by temperature.

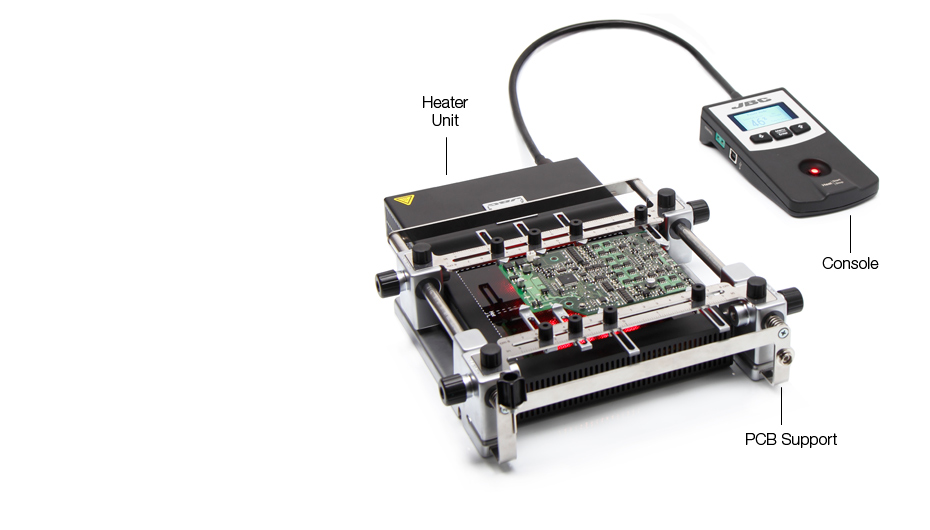

The Heater Unit works with 1 or 2 heating zones and the PCB Support has 3 adjustable heights.

Product Packaging
Net Weight4.914 kg (10.83 lb)
Dimensions Heater Unit195 x 288 x 41 mm
Maximum Power500W
Heating Area65 x 135 mm (1 zone)
130 x 135 mm (2 zones)
Temperature Range50 to 250ºC (120 to 482ºF)
Temperature MeasurementThermocouple type K
JBCset Temperature Profiles3 profiles ( 2, 3 or 4 steps)
User Temperature Profiles20 (up to 6 steps for each)
Maximum work time:600 min. or indefinite
Fuse4 A T
Package weight5.957 kg (13.13 lb)
Package dimensions368 x 368 x 195 mm
(14.49 x 14.49 x 7.68 in)
