NASE-1A
Nano Rework station

DISCONTINUED

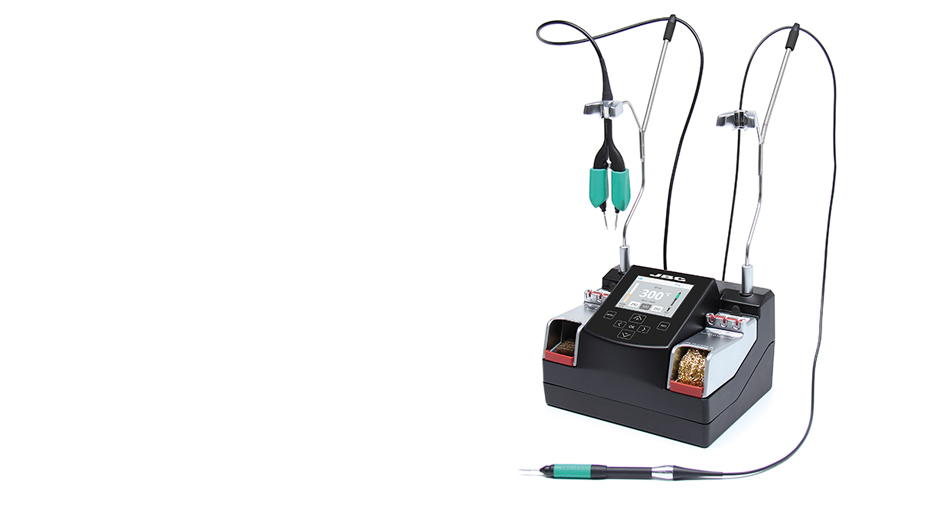

NASE-1A - Nano Rework  station
The best solution for repairing very small-sized components requiring the highest precision such as chips 0402, 0201, 01005, etc.

It works simultaneously with the NT105 Nano Handpiece and the NP105 Nano Tweezers.

The short distance from the tip to the handle offers maximum control even when using a microscope.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.

It features all the Excellence range benefits and
an easy-to-use menu which helps you monitor the work in real time: graphics, partial counters, tool port monitoring, etc.

Net Weight2.250 kg (4.96 lb)
Dimensions170 x 90 x 135 mm
Voltage120V
Input Fuse0.5A
Output Peak Power14W per tool
Temperature selection90-450 ºC (190-840 ºF)
Idle temp. stability (still air)±3 ºC (±5.5 ºF)
Tip to ground resistance<2 ohms
Ambient operating temp.10-40 ºC (50-104 ºF)
Communication connectorsUSB-A / USB-B / Pedal
Robot connectorRJ12 for RS-232 protocol
ESD safe
Package weight2.250 kg (4.96 lb)
Package dimensions276 x 276 x136 mm
