JT-2QC
Hot Air station without extractor desk

DISCONTINUED
JT-2QC - Hot Air station without extractor desk

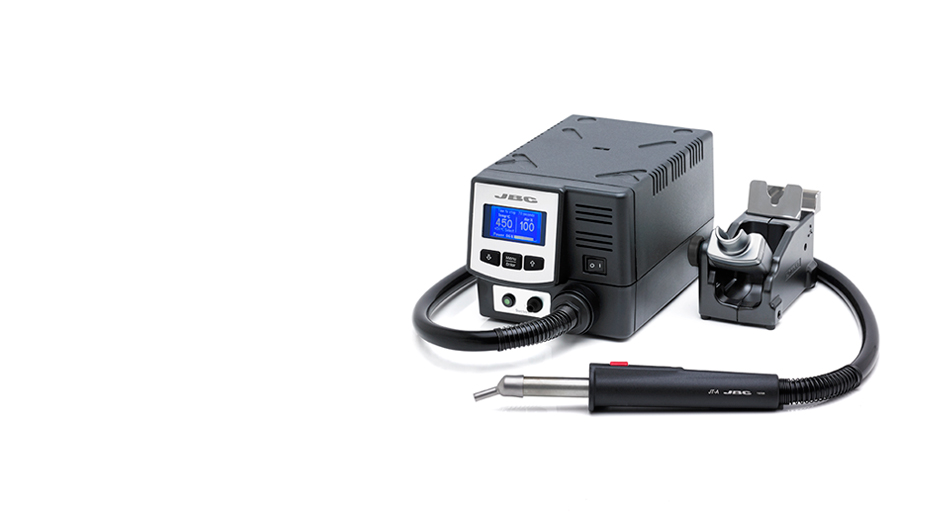

This is a high powered hot air station to repair all types of SMD quickly and safely, even the biggest QFPs and PLCCs.

The unit features two work modes -manual or program- to manage efficiently the temperature and the hot air flow.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

The station works with the JT-TA heater
and incorporates a USB connector (type B).

It comes with a heater stand with a quick nozzle changer.
Net Weight5,3 kg (11,7 lb)
Size148 x 184 x 140
Voltage(AC)230V / 120V / 100V
Input Fuse4A (230V), 8A (120V and 100V)
Nominal Power700 W
Temperature selectionRoom Temperature / 150-450 ºC (300-840 ºF)
Cool mode: temp. Off
Ambient operating temp.10-40 ºC (50-104 ºF)
Air Flow Regulation10 - 50 SLPM
Vacuum30% / 228 mmHg / 9 inHg
Rated Current3A (230V), 6A (120V), 7A (100V)
Communication connectorsUSB-B
Pedal connectionP-005 Pedal
ESD Safe
Package weight6,3 kg (13.9 lb)
Package dimensions475x370x200 mm
